Four Wheel Diesel Power High Speed /High Torque Gravity Wagon /Grain Carts

Four Wheel Diesel Power High Speed /High Torque Gravity Wagon /Grain Carts
Price: US $ 1000-3000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Size: 3345*1290*1475mm
Type: Cargo Motorcycle
Engine Type: 4-Stroke
Fuel: Gas / Diesel
Engine Size: <250cc
Cooling Method: Air Cooling
Year Range: 2015
Condition: New

Product Description

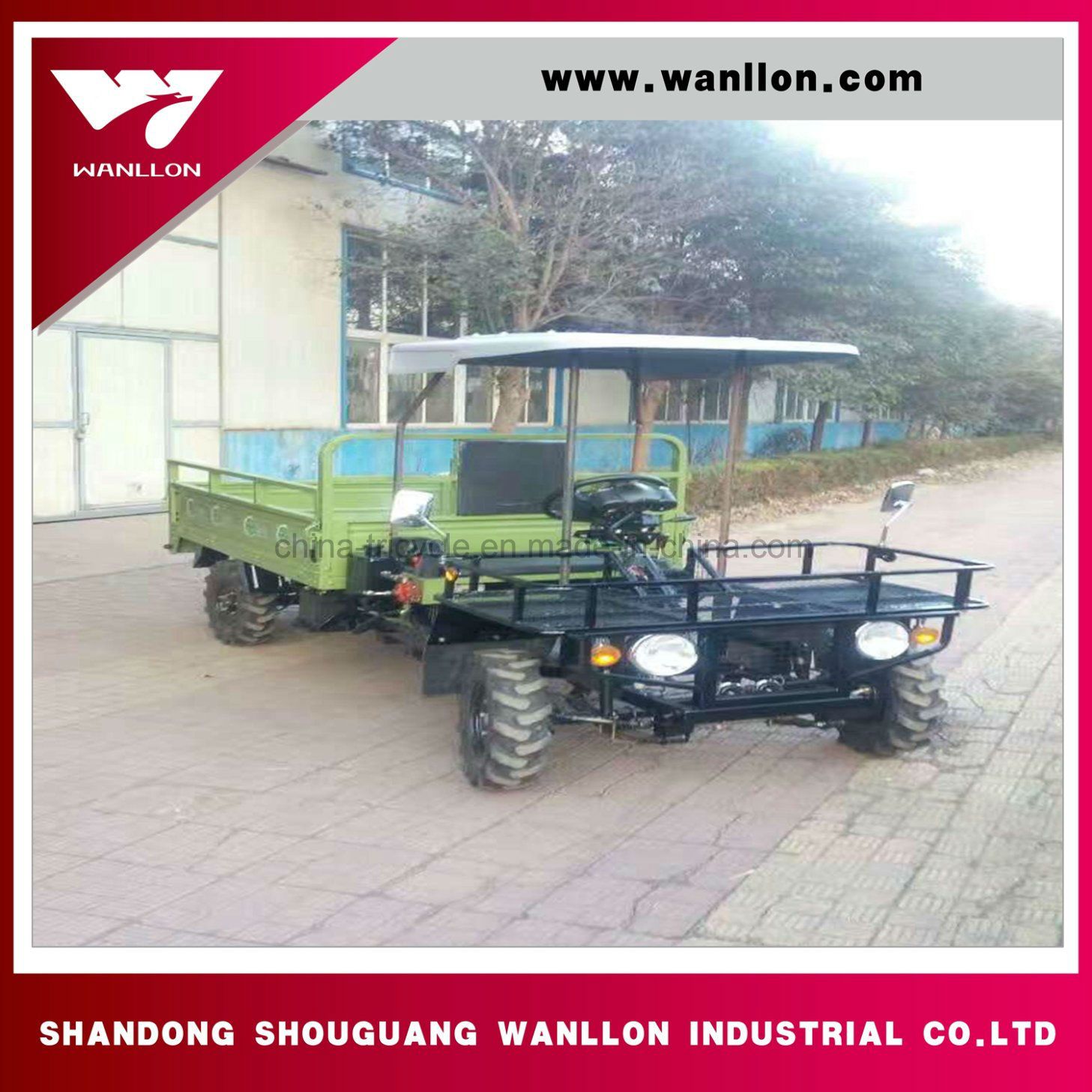

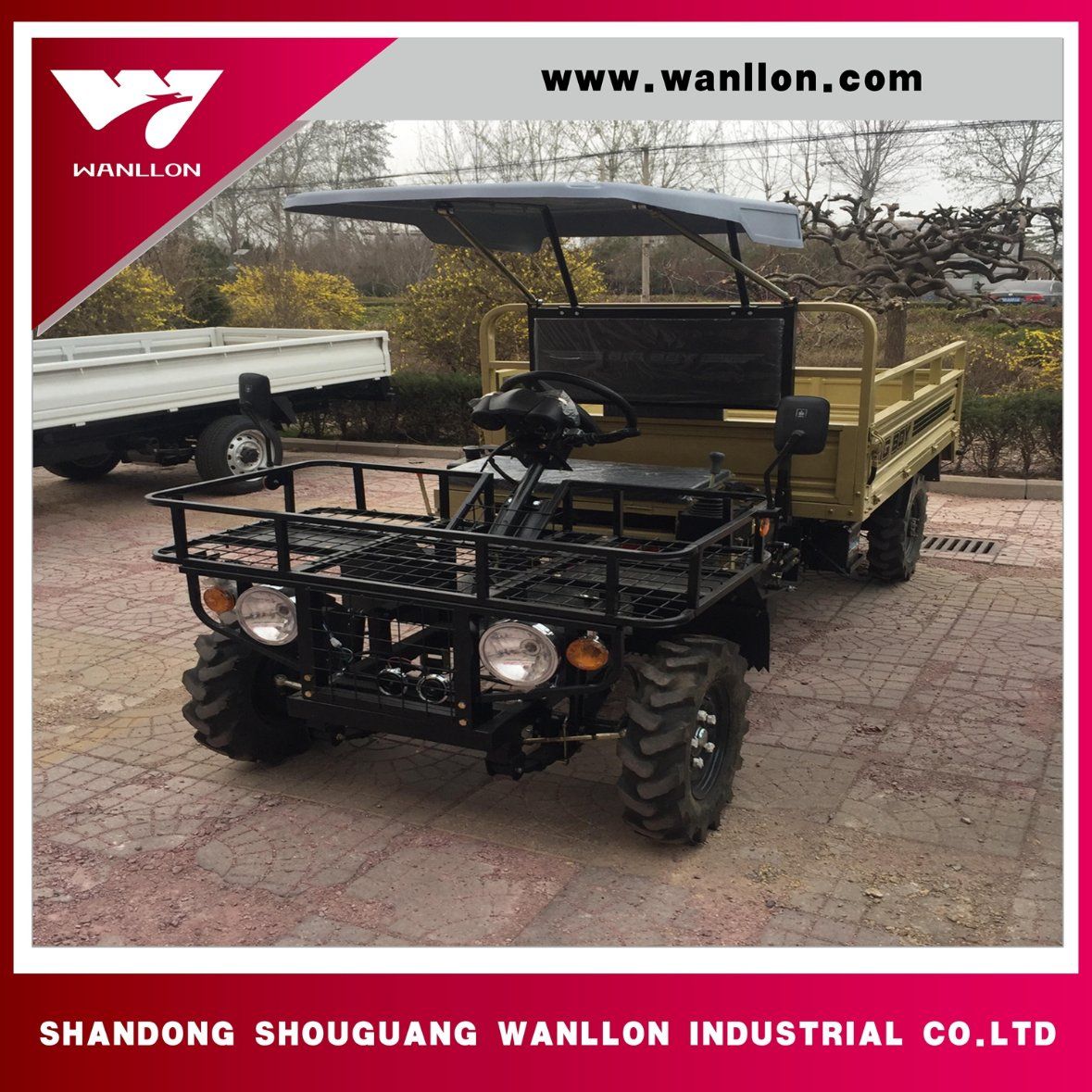

Four Wheel Diesel Power High Speed /High Torque Gravity Wagon /Grain Carts

PRODUCTS DESCRIPTION

Dimensions(L×W×H)mm3700×1310×1850mm
Storage size(L×W×H)mm2000×1280×850mm
Cargo size(L×W×H)mm1280×660×190mm
Minimum turning radius mm6500mm
Wheelbase2500mm
Minimum ground clearance180mm
Net Weight610kg
Rated load500kg
Max speed (high gear/low gear)60km/h
ENGINE
Engine ModelKP2V86F
double cylinder,horizontal axis,Air-cooled,Four stroke,
Air Cylinder2
Cylinder diameter86mm
Stroke86×72mm
Displacement0.813L
Compression ratio18:1
Rated power11.76KW
Maximum torque73Nm
Diesel injection pump\
Air filterpaper
Starting systemElectric start
Idle speed900 r / min
TRANSMISSION
Clutchdry type
Speed mode4 into 1 down
Engine net weight60KG
Climbing≥10°
1 Gear ratio3.43
2 Gear ratio2.11
3 Gear ratio1.38
4 Gear ratio1
Reverse gear ratio3.6
 Steering typeSteering wheel type
Front integral axle housing (steering axle) speed ratio\
Rear integral axle housing ratio6:37
high gear ratio\
slow gear ratio\
Transmission StructureTransmission shaft
CHASSIS
Front suspensionSteel leaf spring
Rear suspensionSteel leaf spring
passenger drivers2
Front and rear brakeDrum / drum type
Front tire specifications5.00-12
Rear tire specifications5.00-12
ELECTRICAL
Ignition modeDirect injection pressure ignition
Advance angle of fuel supply22-24°
Diesel filter replacement interval500 hours
Battery36V 60Ah
Fuse20A
Front Head lamp12V 35/35W
Rear lamp12V 5/10W
Turn signal light12V 10W
OIL CAPACITY
Engine oil pan1.7L
Air filter bottom shell\
Front steering axle / rear axle\/0.8L
Transmission / belt gearbox0.7L/\
Brake master / clutch master cylinder0.6L/\
Dump cylinder oil4L
Fuel tank capacity15L

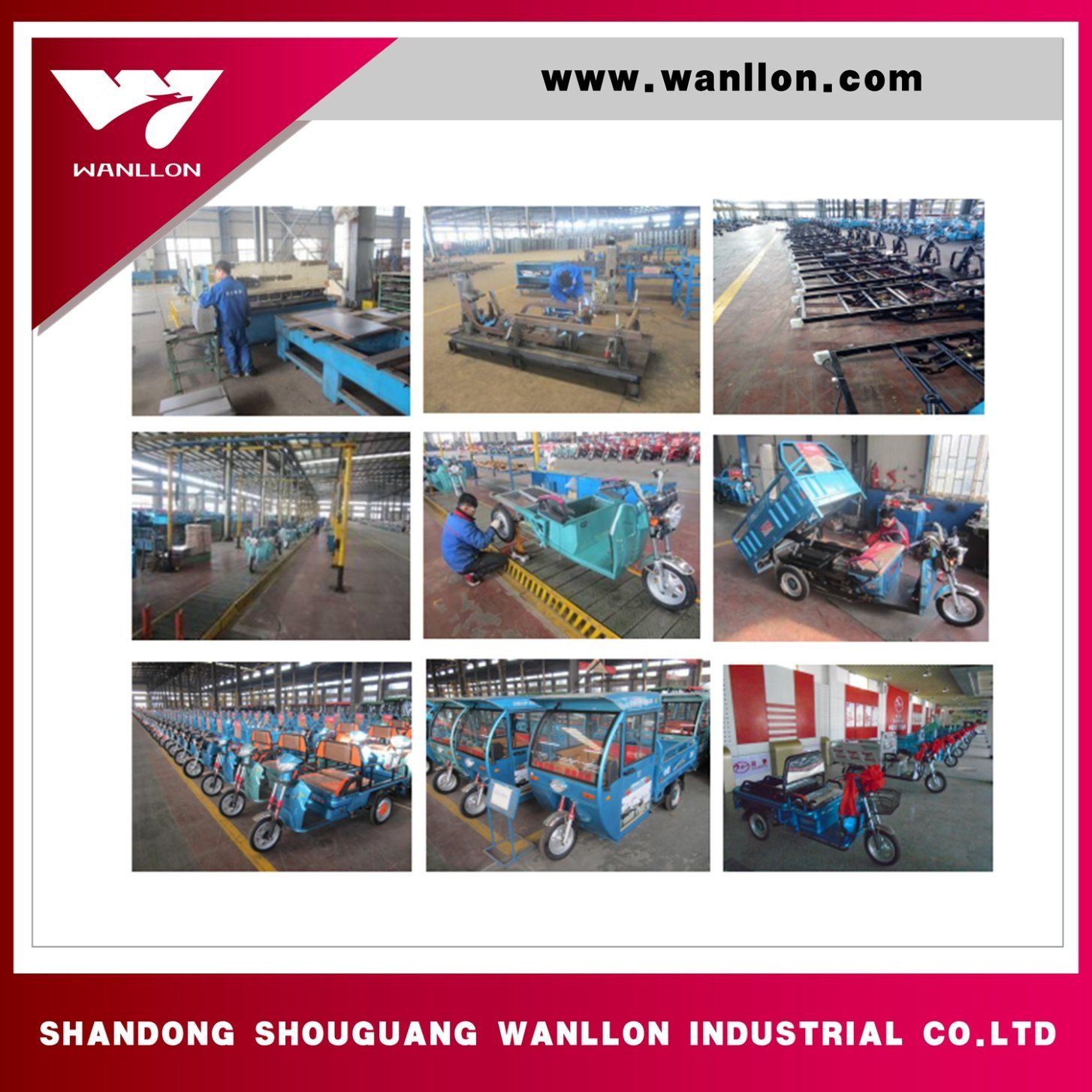

PRODUCTION LINE

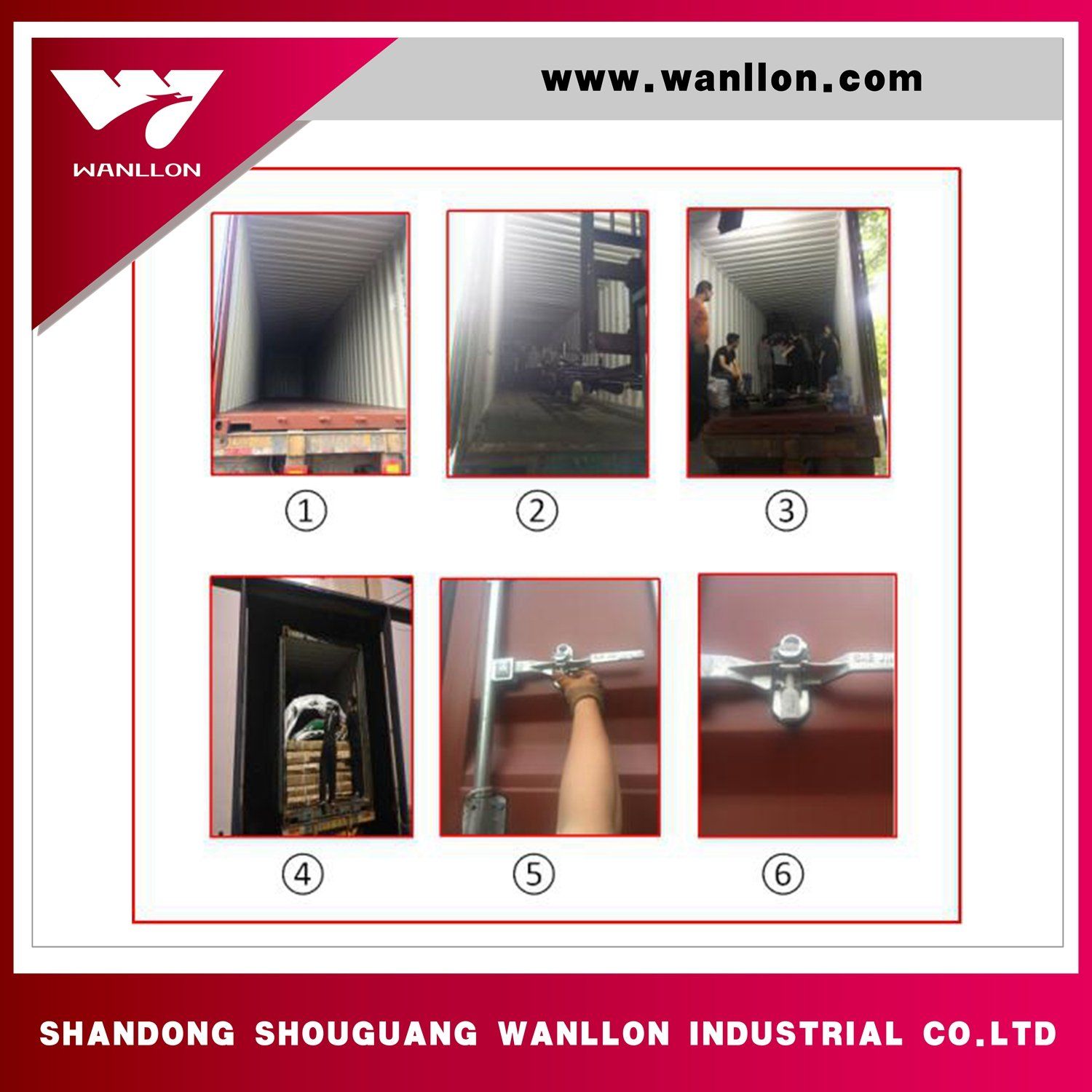

PRODUCTS PACKAGE


CERTIFICATIONS

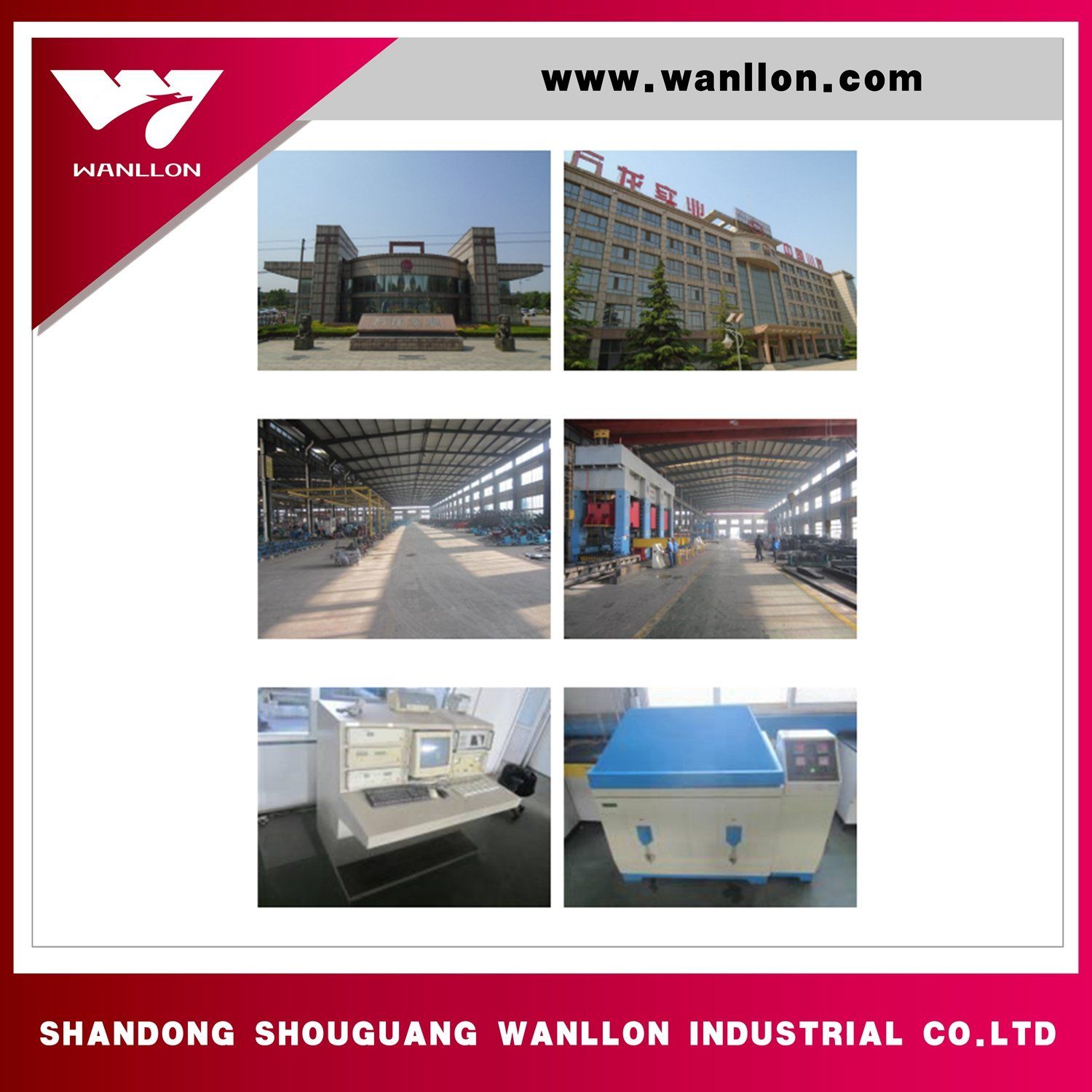

COMPANY INFORMATION

Shouguang Wanlong industrial Co.,Ltd. is a leading supplier of electric tricycle and motor tricycle. We are specialized in designing electric tricycle, electric carriage, motor tricycle and  petrol-electric hybrid tricycle. We support OEM!
We have got ISO9001-2008 international quality system certification and the national "3C" certification. We sincerely invite foreign tricycle agency to be our partner to open market together and share the mutual benefit!



MAIN PRODUCTS

cargo motorcycle

three wheel motorcycleair cooling motorcycleoil braking motorcycle

electric motorcycle

3 wheel electric motorcycle4 wheel motorcycle farm motorcycle

roof motorcycle

half roof motorcyclehybrid motorcycle gasline motorcycle

FAQ:

Q1. Are you trading company or factory?

A. We are original factory .

 Q2. Does your factory has a long history?

A. Yes, our factory founded in 1995, has 22 years of history.

 Q3. Where is your factory located? How can I visit there?

A. Our factory is located in DONGCHENG INDUSTRIAL ZONE SHOUGUANG CITY SHANGDONG PROVINCE CHINA; All our clients are both warmly welcome to visit our factory if you have time!


Q4. What is your main product?

A. We mainly produce different models three wheels and four wheels motorcycles/ tricycle for cargo and passengers. Also have stamping die; tractor cab;

Q5. Where is your main market?

A. Our main market is Africa, Middle East, have been exported to many countries( more than 20 countries)

 (Remark:More questions, please kindly contact me at   NANCY + 86 15615260989/ +8618678000765 )

CONTACT INFORMATION


The company has strong research capabilities, nearly 200 engineering and technical personnel in mechanical engineering two, three-dimensional design work has UG, Surfacer, Ansys, Alias, Rhino and other advanced software and CAE finite element analysis software used to develop a comprehensive design. The company has a car body, car mold, truck trailers, motorcycles and three-wheeled electric vehicle research and development capabilities of independence.

The company has more equipment capacity, with a large Italian companies producing JOBS high-speed five-axis milling, laser cutting machines made in Japan NTC, Germany ATOSII mobile optical scanners, large-scale coordinate measuring instrument, such as advanced hardware; Has more than 400T large machinery, hydraulic machine 40 sets; Die more than a dozen sets of CNC machining equipment; And has China's first flexible rolling, punching, riveting one frame manufacturing lines; Body welding, painting line. Annual production capacity has reached 200, 000 sets of automobile body panels, two vehicle stamping die design and manufacturing capabilities, 1.5 million sets of light and heavy trucks, aircraft manufacturing capacity, 200, 000 three-wheeled motorcycles, four-wheel electric car production capacity. Company car body, frame and other products have become the Chang'an, Huatai Hyundai, North Benz, China National Heavy Duty Truck, Foton, five levy group, when the wind Group, and other heavy truck, light truck vehicles, mainly passenger cars manufacturers supporting suppliers. The company has for the Japanese FUJI, Changan Ford, Hongta, Chery, Foton and other domestic and foreign car manufacturers design and processing through high-end cars, auto body mold. Company developed high-grade series of motorized trucks, buses, vans, and environmental protection, energy saving electric four-wheel vehicles are sold throughout the country, the international market.

The company has a comprehensive quality assurance system and product tests, passed the ISO9001: 2000 and ISO/TS16949: 2002 international quality management system certification (NQA) and the "three C" certification. Company for many years by the provincial and municipal levels, Industry and Commerce Bureau awarded the contract and keeping promises units, the provincial outstanding private technology enterprises, the China Patent Shandong Star Enterprise and other (a) the honorary title. The company has consistently adhered to the "pragmatic, thrifty, innovation and dedication" of the business style, the spirit of "honest work, and trustworthy service providers, as customers for their families, service forever, " the marketing philosophy of "tree quality awareness, creating international brands, to century-old building, "the pursuit of goals, is toward diversification of products in a modern enterprise group steadily forward.

Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
