| Price: | US $ 600-1600set |
|---|---|
| Min Order: | 1set |
| Pay Type: | T/T,Western Union |
| Prod Model: | MT-51WS |
|---|---|
| Lock/Inner Range: | 6~51mm |
| Voltage: | 220V/240V/380V/415V(Optional) |
| Power: | 3kw/4kw |
| Withhold Accuracy: | 0.01mm |
| Swept Volume: | 2.5L/5L/10L |
| System Pressure: | 31.5MPa |
| Buckling Pressure: | 500t |
| Efficiency: | 200PCS/Hour |
| Mold Quantity: | 10sets |

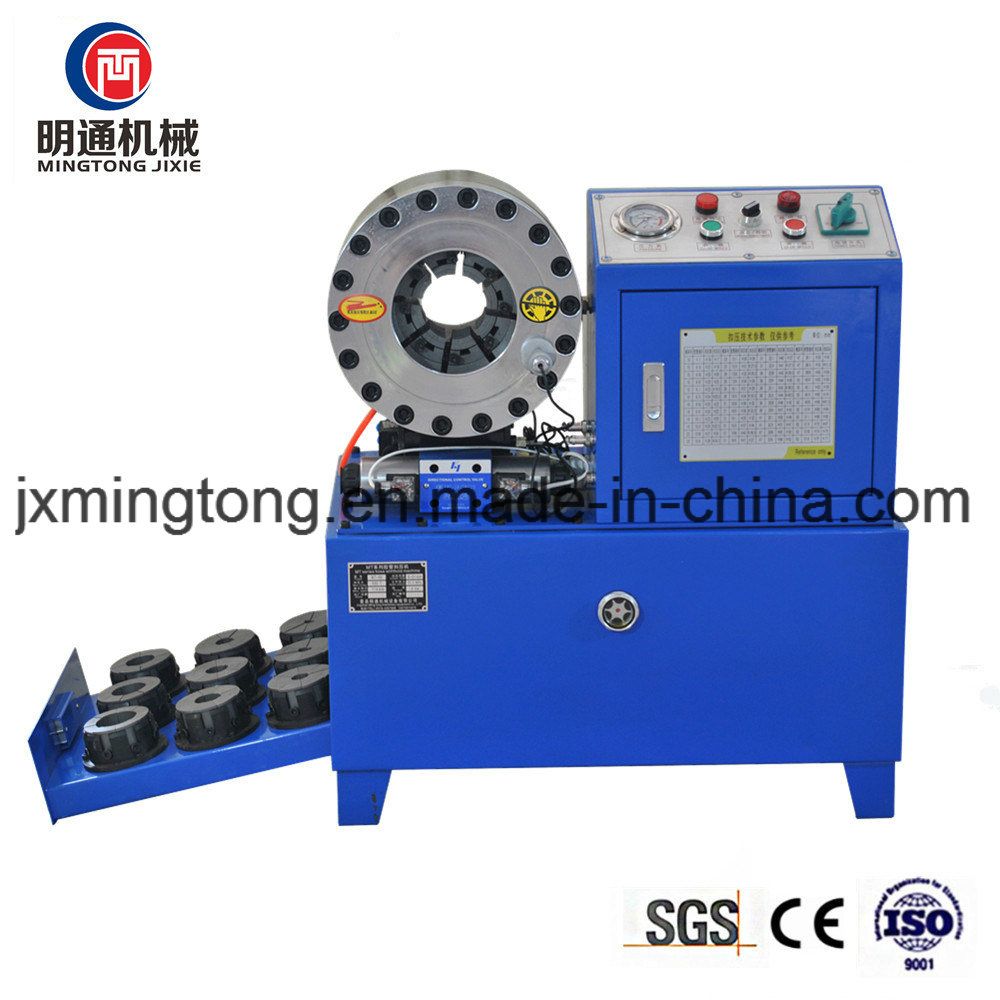

| Product Name: | Hydraulic Hose Crimping Machine Dx68 |
| Product Name | Hose crimping machine |
| Crimping Range (Inner Diameter) | 6~51mm ( 1/4~2" ) |
| Free Dies | 10 Sets of dies |
| Accuracy | 0.01mm |
| Volume of oil tank | 2.5L / 5L / 10L (Optional) |
| System Pressure | 26MPa / 31.5MPa (Optional) |
| Motor Power (as your requirements) | 3kW / 4kW 1 2 3 phase |
| Voltage (as your requirements) | 220V-415V 50/60Hz |
| Buckling Pressure | 500T |
| Efficiency | 200pcs/h |
| Maximum Open Diameter | 114mm |
| The max open tolerance | ±30mm |
| Control system | Electric Automatic |
| Control model | Micro control with Button control with pedal |
| Hydraulic oil | 46# |
| Package Dimension | 800*530*870 mm |
Brief introduction of hydraulic hose crimping machine:

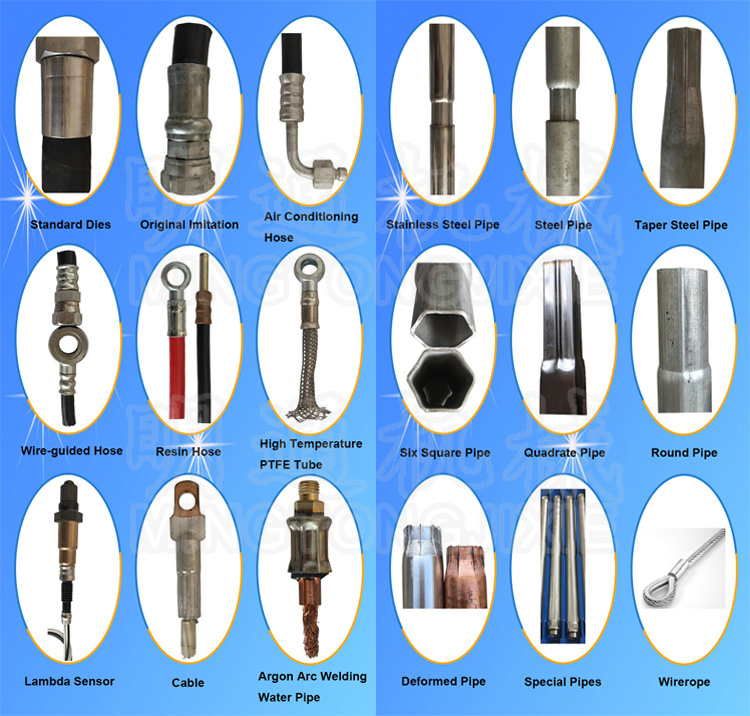

Ming Tong MT-51WS (DX68) is best-selling product of our factory, to be able to withhold a variety of hydraulic hoses.
*Comes complete with a full set of 1/4 inch to 2 inch 4Sp dies.
* Crimping forces reached 500T, easy to crimp.
* Piston, cylinder, mold are all special processing, superior performance.

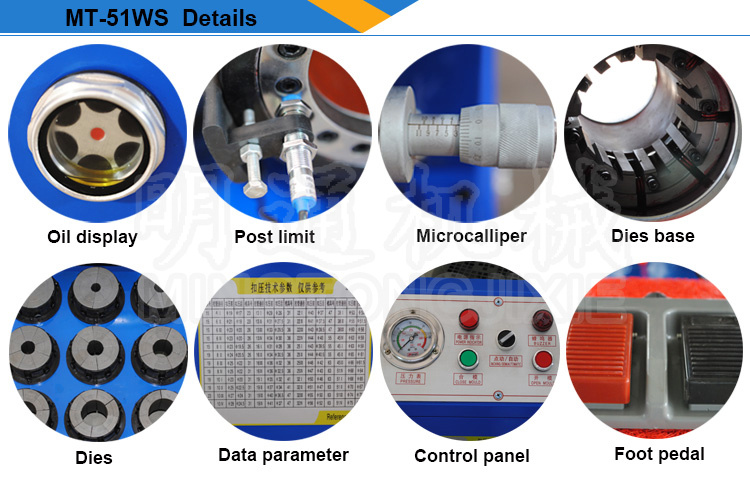

* Crimping capacity can be precisely controlled, repeat precision of 0.01mm.
* Machine head smooth surface, not easy to fight stains.
*10 sets of dies with hydraulic hose crimping machine price:17mm,20mm,23mm,27mm,31mm, 36mm, 41mm,47mm,53mm,63mm.
Friendly reminder:
1 First, make sure that the machine used hydraulic oil to international numbers # 46 hydraulic oil.
2 Before using the machine for the first time, read the instructions for using the machine carefully.
3 Please confirm that the voltage supplied is the same as the voltage used by the machine.
4 The first time you start the machine, the motor rotation direction should be clockwise.
5 Do not use corroded metal connections or steel pipe with iron chips.
6 The machine working environment should be spacious, while away from the elderly and children, to avoid collision.
7 When the machine is out of service, the machine should be in a non-pressurized state, cut off the power.
