Original 2 Inch P32 Hydcraulic Hose Crimping Machine, P32 Hydraulic Hose

Original 2 Inch P32 Hydcraulic Hose Crimping Machine, P32 Hydraulic Hose
Price: US $ 1000-2000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: MT-P38
Lock/Inner Range: 6~38mm
Voltage: 220V/240V/380V/415V(Optional)
Power: 3kw/4kw
Withhold Accuracy: 0.01mm
Diemensions: 1160*565*1100mm
System Pressure: 31.5MPa
Buckling Pressure: 500t
Efficiency: 200PCS/Hour
Mold Quantity: 8 Sets
Product Name: 1.5 Inch Hydraulic Hose Crimping Machine

Product Description

Original 2 inch P32 hydcraulic hose crimping machine, P32 hydraulic hose

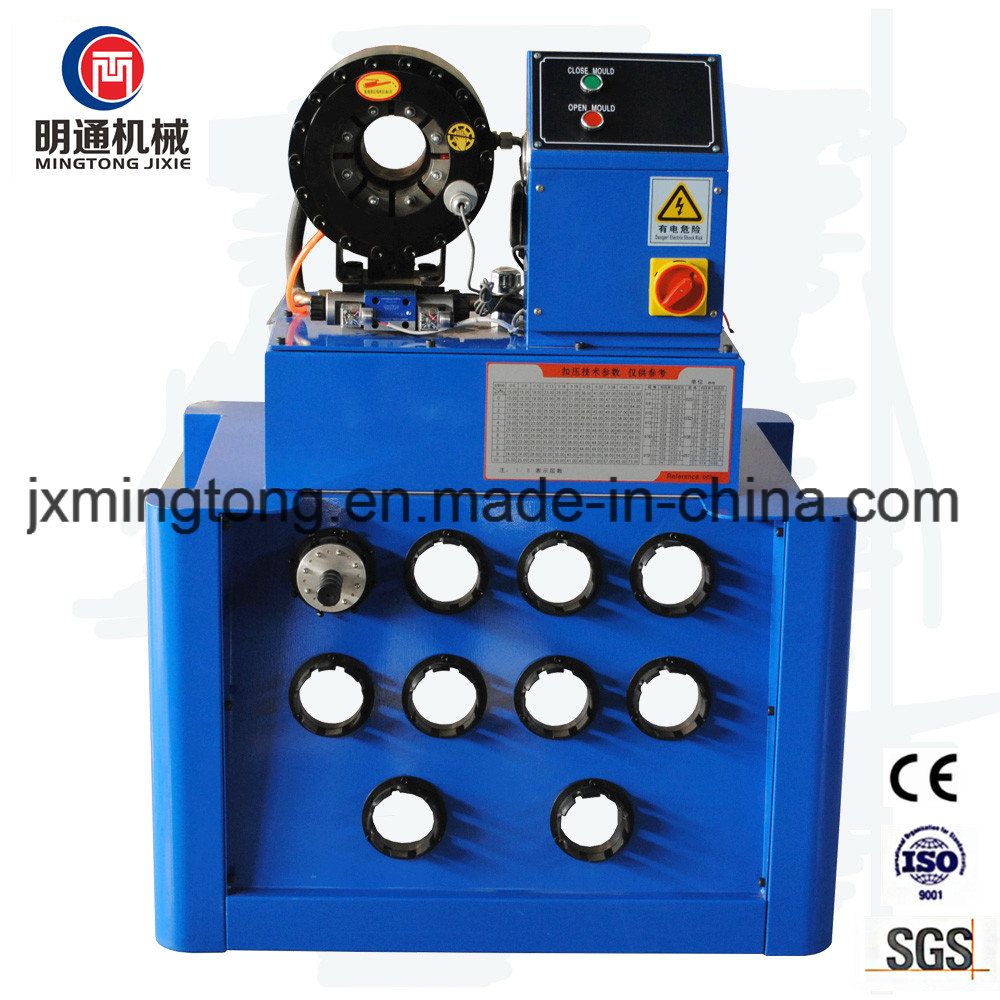

MT-P38 hydraulic hose crimping machine/hose crimper

The MT-P38(P32/P52) type CNC hose crimping machine is suitable for hooping processing of the assembly of high pressure rubber tube, fibre pipe and plastic pipe used in industry, agriculture and fluid drive of engineering machinery. It has the advantages of wide hooping range, high precision (adopt PLC control), high degree automation, This machine features small and portable appearance, big force, low noise and easy to operate.



Advantages:
1. Crimping capacity can be precisely controlled, repeat precision of 0.01mm
2. Increasing the opening, and good passing performance.
3. Added with base-protective resin gasket to not damage the working surface.
4. Speed is fast although equipped with single phase
5. Big swaging force suitable for 2 inch 6 wires hose


Machine parameter table

Product Name

hose crimping machine

Crimping Range (Inner Diameter)

6~38mm ( 1/4~1.5" )

Free Dies

8 Sets of dies

Item No. of dies

15.19.23.26.31.36.41.47

Accuracy

0.01mm

Volume of oil tank

2.5L / 5L / 10L (Optional)

System Pressure

26MPa / 31.5MPa (Optional)

Motor Power (as your requirements)

3kW / 4kW  1 2 3 phase

Voltage (as your requirements)

220V-415V  50/60Hz

Buckling Pressure

500T

Efficiency

200pcs/h

Maximum Open Diameter

114mm

The max open tolerance

± 30mm

Control system

Electric Automatic

Control model

Micro control with Button control with pedal

Hydraulic oil

46#

Package Dimension

1300*700*1200 mm










Crimping Effect




We can custom any models like:DX51  DX68  P32 P52 P20 Finn power!

Contact Us



FAQs

Why choose us?
1.More than 10 years of production experience
2.Timely after-sales service
3.A wide range of products to meet all customer needs
4.No middlemen to make price difference in direct sales
5.Short delivery time, within 3~7 days
6.Support Alibaba Trade Assurance protection

What can we offer?
1.Affordable first price
2.Quality assurance, certificate of origin, no fakes
3.OEM and ODM support

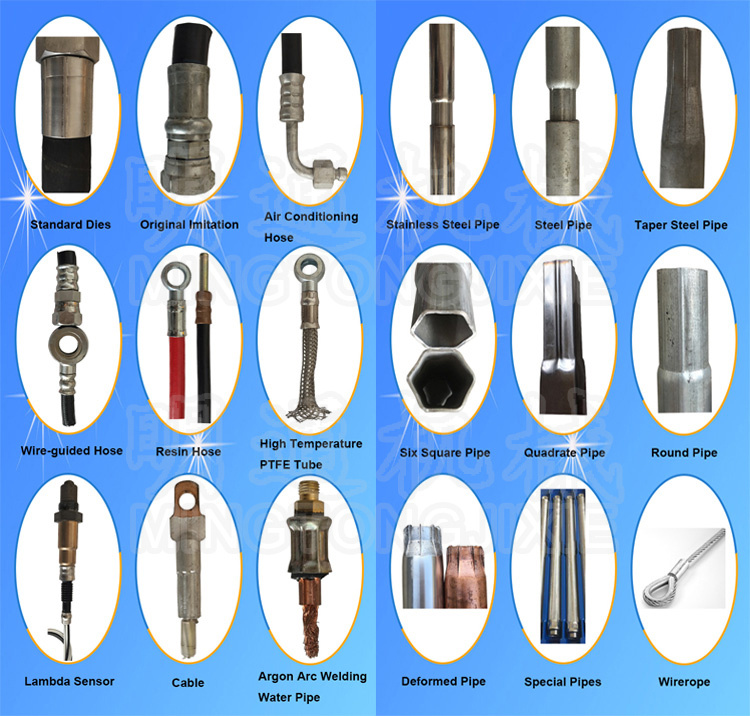

What our machine can crimp?
Hose, excavator oil hose, construction machinery oil hose,
coal mine hose, air conditioning hose, PTFE hose, resin hose,
wire guide pipe, air spring, bath pipe, steel wire rope,
building steel pipe, stainless steel pipe, etc


Original 2 inch P32 hydcraulic hose crimping machine, P32 hydraulic hose

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Ping Li, general manager of our factory, proficient in a variety of buckle machine performance characteristics, with strong professional and technical capacity.

Our factory delivery efficiency is high, single order, the day can be packaged factory, more than 15 days to purchase packaging factory shipment.

Support OEM or OMD, each machine before delivery performance testing, quality control to strictly.

I plant with more than 10 years of design and production experience, support bulk custom products, large concessions.

Our factory to sell each of the machines, are provided after-sales maintenance services, professional after-sales team to keep in touch with you in real time.

Various configurations are available, If you are interested, come and talk to us!

Welcome customers to our factory to visit the guide, understand our company's products.
