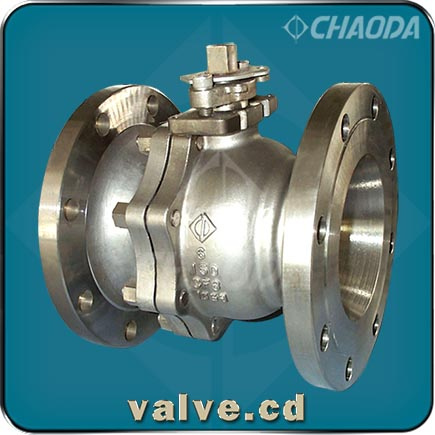

Flanged Reduced Bore Floating Ball Valve
| Price: |
US $ 50-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
SQA41F, SQA341F |
| Testing Standard: |
API598, API6d |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Water Industrial Usage |
| Function: |
on-off Valve |
Product Description
CHAODA GROUP WENZHOU E-BUSINESS CO.,LTD. is a wholly owned subsidiary of CHAODA VALVES GROUP CO.,LTD.With Chaoda valves group( CHAODA group") quality management and safety system(Get the approvals of ISO9001,ISO14001,OHSAS18001, API6D, CE/PED, API607,API6FA, ISO15848-1, TS and API600 gate valve certified),top level developing team(Provincial Key Enterprise research Institute,Provincial Key Enterprise Technology Innovative Group, Provincial Enterprise Technology Center),advanced machining equipment, well chemical analyst and inspection equipment(Optical Spectrometer, Helium low emission tester, High & Low temperature performance equipment and etc)we could provide our clients with perfect products and satisfied service.
Type:
Bore: NPS1/2~NPS20,DN15~DN500
Rating: Class150~Class1500,PN16~PN160
Material: Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel
Operation: Manual,Gear Operated,Electric Operated,Pneumatic Operated
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical and so on
Honor:Zhejiang Famous Brand,Zhejiang Famous Exporting Brand,
,Chinese patent...
CHAODA VALVES GROUP CO.,LTD.
TEL:0086-577-57757282
FAX:0086-577-57757273
Reduced bore floating ball valves (Flanged general and butt-welding connection optional) are suitable for using on various kinds of pipeline from pressure Class 150 to Class 1500, PN16 to PN160 to cut off or allow the flowing of medium. By using different material, the valves could be suitable for medium such as water, steam, oil, nitric acid, acetic acid, oxidizing substance, carbamide and etc. Manual/worm gear/pneumatic or electric actuators could be chosen by needs.
CHAODA VALVES GROUP Co., Ltd was established in 1984, with two specialized manufacturing plants and one foundry plant, around 500 employees, of which 128 are engineer and technician. CHAODA is a specialized manufacturer of industrial steel valve according to API, ASME, EN, ISO, JIS, DIN, BS, GOST & GB standards. The product includes Ball Valve, Gate Valve, Check Valve, Globe Valve and other special valves that are widely applied in petroleum, chemical, metallurgical and power generation industries. As the reliable supplier on quality and service, CHAODA VALVE won great reputations from the customers in Europe, America, Japan, Middle East, South East Asia, Russia and other countries.
CHAODA VALVE launched its quality management and safety system as ISO 9001, ISO14001, OHSAS18001 and awarded API 6D, API 600, API 607, API 6FA, CE/PED approvals for the product.
CHAODA established a multi-functional phys-chemical lab to further supervise the quality time to time, and fit out spectrum analyzer, portable spectrograph (PMI), mass spectrometer, induction furnace infrared carbon, sulfur analysis gauge, material tester, impact tester, spring tester, hardness meter, thickness meter, magnetic particle tester and NDE testing equipment, and also other testing facilities for valve torque, service life, flowing capability, low temperature application, low leakage and pressure test.
On innovation side, besides 15 patented valve designs, there are around 100 new products that developed by CHAODA dedicated research team by 35 professional engineers in each year.
Upon the continues increase on customers demand, CHAODA invested a more effective control line with Germany HECKERT machining center, CNC lathe, CNC miller, CNC driller, plasma spray welder, auto painting & drying machine and ultrasonic cleaner, and the max. Machining ability reached 4000mm. The connectable solid warehouse system from parts to finished good ensures the production flow can be alternative by vary demand.
Along with the rapid growth in business, CHAODA invested 3.2 million RMB constructed its information management system on PDM and ERP that integrated increase the ability from innovation, quality control and management.
The main tech-data of product listed as below, where any special requirement can be handled by our dedicated engineering team for various working conditions.
Product range: Ball Valve, Gate Valve, Check Valve, Globe Valve and other special valves. More specifically, Metal seated ball valves, bellow sealed valves and wafer check valve are our most featured products.
Pressure range: Class150-Class2500, PN10-PN420.
Size range: NPS1/2-NPS80.
Operation type: Manual, Gearbox, Chain wheel, Pneumatic, Electronic, Hydraulic-pneumatic etc.
Connection End: Flanged, BW, SW, NPT, Wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, etc.
Materials (forging): A105, LF1, LF2, F304, F304L, F316, F316L, F11, F22, F6, F51, F316H, F321, F347, etc.
CHAODA (Qingtian) FOUNDRY is wholly owned subsidiary by CHAODA VALVE is one of the leading investment casting foundries in China, covering 40, 000 m2 areas and 26, 000 m2 construction areas, around 200 employees, and mainly supplies investment casting to CHAODA VALVE and foreign customers that provide a reliable quality assurance for valve product, and the initial production capability will be reached to 7000 ton/year.
CHAODA VALVE is dedicated to supplying high quality valve solutions for global industries since its inception in 1984. In the new century, CHAODA is facing a historical development opportunity and furious competition. By holding the persistence improving in management and product quality, CHAODA will provide higher and better service to you.
