Prod Model: |
hydraulic hose |
Cover: |
Abrasion Resistant, Fras |
Certificate: |
ISO:9001:2008, Msha |
Reinforcement: |
High Tensile Steel Wire Braid |
Usage: |
Excavator, Mine, Oilfield |
Finish: |
Wrapped or Smooth |
Length: |
20m 40m 50m 100m 200m |
Feature: |
Flexible |
Impluse: |
Over 400000 Cycles |
Capability: |
High Pressure Hose |
Color: |
Black, Red, Yellow, Green, as Client's Request |
Material: |
Synthetic Rubber |
Product Description

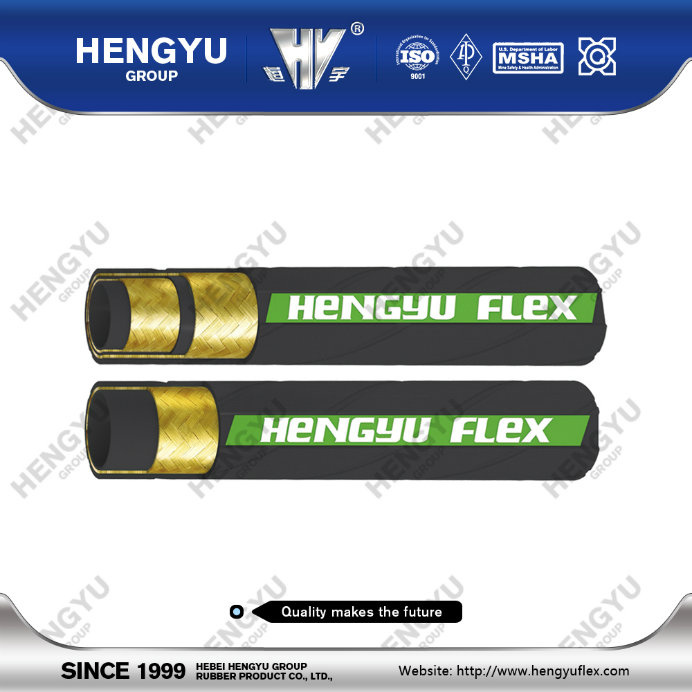

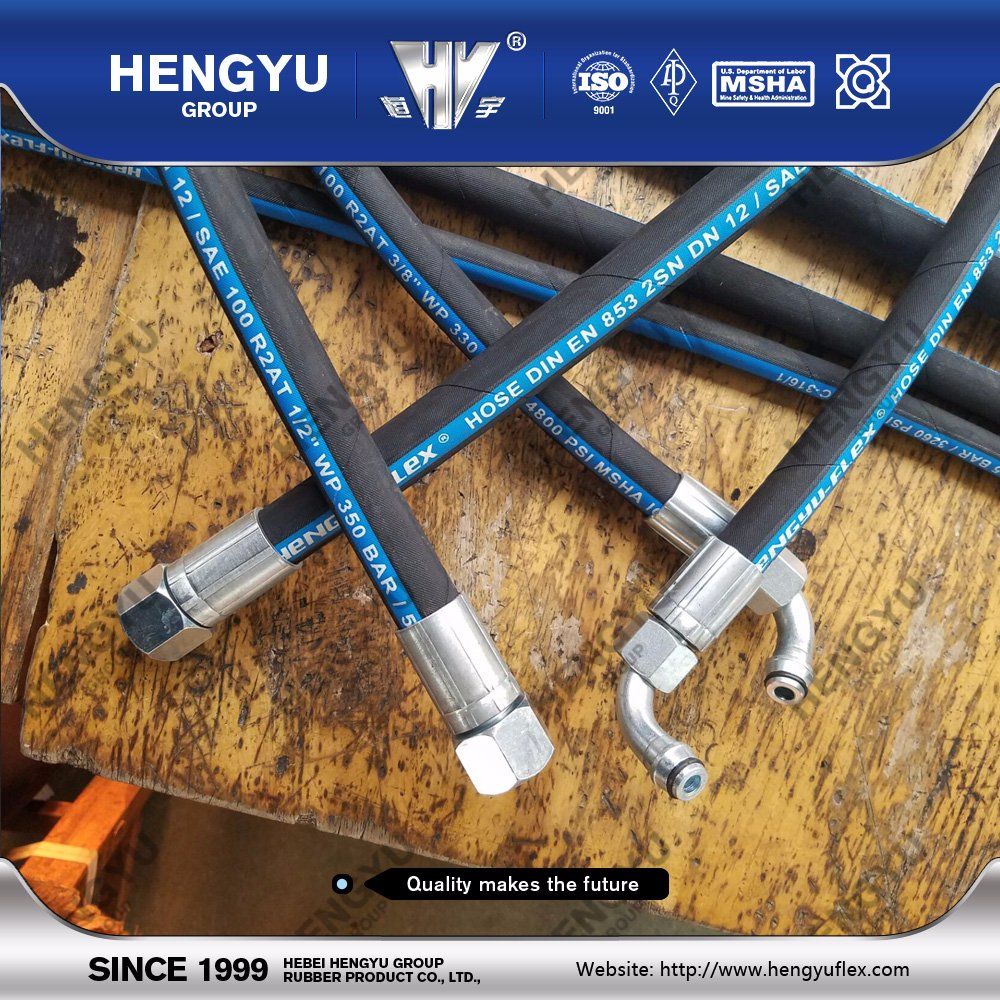

Flexible rubber hydraulic hose EN853 1SN 2SN
Welcome to Hebei Hengyu Rubber Product Group! We supply full range of Hydraulic hose and industrial hose
EN856 4SP/4SH abrasion hydraulic hose
Please find our contact info at the very bottom of the page and send us your specific requirment, we shall get back to you immediately.
1SN/ R1
I.D | R.O.D. | C.T | O.D | MAX W.P. | MIN B.P. | MIN B.R. | WEIGHT |
mm | inch | Min | Max | Min | Max | Min | Max | Max | bar | psi | bar | psi | mm | kg/m |
mm | mm | mm | mm | mm | mm | mm |
5 | 3/16" | 4.6 | 5.4 | 9.0 | 10.0 | 0.8 | 1.5 | 12.5 | 250 | 3620 | 1000 | 14500 | 90 | 0.19 |
6 | 1/4" | 6.2 | 7.0 | 10.6 | 11.6 | 0.8 | 1.5 | 14.1 | 225 | 3260 | 900 | 13050 | 100 | 0.23 |
8 | 5/16" | 7.7 | 8.5 | 12.1 | 13.3 | 0.8 | 1.5 | 15.7 | 215 | 3110 | 850 | 12320 | 115 | 0.27 |
10 | 3/8" | 9.3 | 10.1 | 14.5 | 15.7 | 0.8 | 1.5 | 18.1 | 180 | 2610 | 720 | 10440 | 130 | 0.34 |
12 | 1/2" | 12.3 | 13.5 | 17.5 | 19.1 | 0.8 | 1.5 | 21.4 | 160 | 2320 | 640 | 9280 | 180 | 0.42 |
16 | 5/8" | 15.5 | 16.7 | 20.6 | 22.2 | 0.8 | 1.5 | 24.5 | 130 | 1880 | 520 | 7540 | 200 | 0.51 |
19 | 3/4" | 18.6 | 19.8 | 24.6 | 26.2 | 0.8 | 1.5 | 28.5 | 105 | 1520 | 420 | 6090 | 240 | 0.63 |
25 | 1" | 25.0 | 26.4 | 32.5 | 34.1 | 0.8 | 1.5 | 36.6 | 88 | 1270 | 350 | 5070 | 300 | 0.95 |
32 | 1.1/4" | 31.4 | 33.0 | 39.3 | 41.7 | 1.0 | 2.0 | 44.8 | 63 | 910 | 250 | 3620 | 420 | 1.3 |
38 | 1.1/2" | 37.7 | 39.3 | 45.6 | 48.0 | 1.5 | 2.5 | 52.1 | 50 | 720 | 200 | 2900 | 500 | 1.6 |
51 | 2" | 50.4 | 52.0 | 58.7 | 61.7 | 1.5 | 2.5 | 65.5 | 40 | 580 | 160 | 2320 | 630 | 2.2 |
64 | 2 1/2" | 63.0 | 65.2 | 71.2 | 74.2 | 1.5 | 2.5 | 77.0 | 50 | 720 | 200 | 2900 | 760 | 2.7 |
| | | | | | | | | | | | | | |
| | | | | | | | | | | | | | |
MAIN APPLICATION: Low-medium pressure lines,including mobile,machine tool and agricultural application,using petroleum or water-based hydraulic fluids. |
TEMPERATURE RANGE | | | | | | | | | | | |
-40°F / +212°F | | | | | | | | | | | | |
-40°C / +100°C | | | | | | | | | | | | |
INNER TUBE: Oil resistant synthetic rubber | | | | | | | | |
REINFORCEMENT: One braid of high-tensile steel wire | | | | | | |
COVER: Environment resistant synthetic rubber( Wrap or Smooth cover ) | | | |
APPLICABLE SPECS.: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN | | | | |
2SN/ R2I.D | R.O.D. | C.T | O.D | MAX W.P. | MIN B.P. | MIN B.R. | WEIGHT |
mm | inch | Min | Max | Min | Max | Min | Max | Max | bar | psi | bar | psi | mm | kg/m |
mm | mm | mm | mm | mm | mm | mm |
6 | 1/4" | 6.2 | 7.0 | 12.1 | 13.3 | 0.8 | 1.5 | 15.7 | 400 | 5800 | 1600 | 23204 | 100 | 0.34 |
8 | 5/16" | 7.7 | 8.5 | 13.7 | 14.9 | 0.8 | 1.5 | 17.3 | 350 | 5080 | 1400 | 20304 | 115 | 0.39 |
10 | 3/8" | 9.3 | 10.1 | 16.1 | 17.3 | 0.8 | 1.5 | 19.7 | 330 | 4800 | 1320 | 19144 | 130 | 0.49 |
12 | 1/2" | 12.3 | 13.5 | 19.0 | 20.6 | 0.8 | 1.5 | 23.0 | 275 | 4000 | 1100 | 15956 | 180 | 0.59 |
16 | 5/8" | 15.5 | 16.7 | 22.2 | 23.8 | 0.8 | 1.5 | 26.2 | 250 | 3630 | 1000 | 14500 | 200 | 0.71 |
19 | 3/4" | 18.6 | 19.8 | 26.2 | 27.8 | 0.8 | 1.5 | 30.1 | 215 | 3120 | 850 | 12472 | 240 | 0.89 |
25 | 1" | 25.0 | 26.4 | 34.1 | 35.7 | 1.0 | 2.0 | 38.9 | 165 | 2400 | 650 | 9572 | 300 | 1.37 |
32 | 1.1/4" | 31.4 | 33.0 | 43.3 | 45.7 | 1.0 | 2.0 | 49.5 | 125 | 1820 | 500 | 7252 | 420 | 2.27 |
38 | 1.1/2" | 37.7 | 39.3 | 49.6 | 52.0 | 1.3 | 2.5 | 55.9 | 90 | 1310 | 360 | 5220 | 500 | 2.44 |
51 | 2" | 50.4 | 52.0 | 62.3 | 64.7 | 1.3 | 2.5 | 68.6 | 80 | 1160 | 320 | 4640 | 630 | 3.00 |
| | | | | | | | | | | | | | |
MAIN APPLICATION: Medium-high pressure lines,including construction, machine tool and agricultural application,using petroleum or water-based hydraulic fluids. |
TEMPERATURE RANGE | | | | | | | | | | | | |
-40°F / +212°F | | | | | | | | | | | | | |
-40°C / +100°C | | | | | | | | | | | | | |
INNER TUBE: Oil resistant synthetic rubber | | | | | | | | | |
REINFORCEMENT: Two braids of high-tensile steel wire | | | | | | |
COVER: Environment resistant synthetic rubber( Wrap or Smooth cover ) | | | |
APPLICABLE SPECS.: EN 853 2SN - SAE 100 R2AT - ISO 1436-1 2SN | | | | | |
Packaging & ShippingOur hose products are usually packaged with plastic woven sheet/film wrapped .We also can supply special package according customers' requests.We usually pick up20/40ft container from seaport to our warehouse loadinghoses by ourself workers,it can aviod damage when loading container in seaport.
Company Information

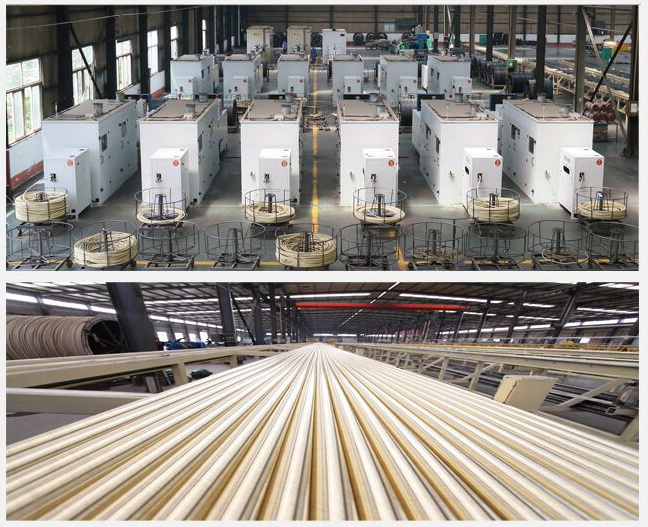

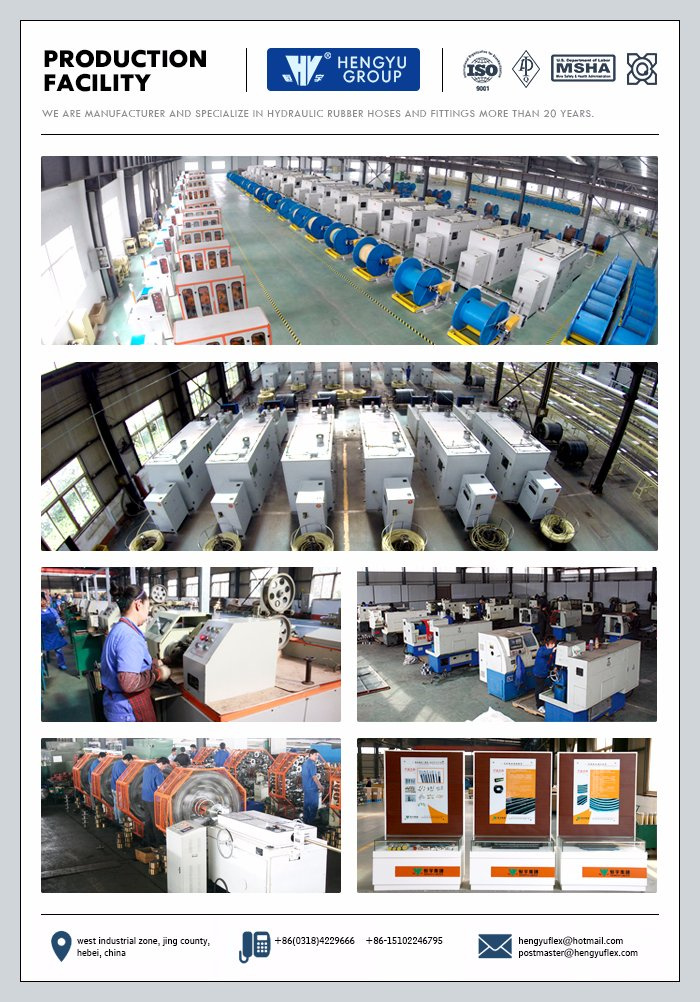

Hebei Hengyu Rubber Product Group Co., Ltd. founded in 1999, we implement a strategy of development for diversification and value driven, positioning in the development of every corner of the world. We uphold the idea of continuous improvement, introduced the international advanced equipment to improve the production quality: the knitting machine of Germany MAYER , wire wrapping machine of South Korea SUNGIL, burst-testing machine of MAXIMATOR and impulse-testing machine of BIMAL, and other modern production and inspection equipment. We can produce almost all types of rubber hoses with the standards DIN EN and SAE J517: Wire braid rubber hose, Wire spiral rubber hose, Water/Oil suction hose, Jet washing hose, Rotary/Drilling hose, Sand-blasting rubber hose, Flexible hose assembly,etc. To provide the best all season services for our customers. The strict quality control: we have passed the international quality management system ISO9001:2008, also we have the certification of American Petroleum Association API 7K & Q1
Our Advantages
1, Knitting machine of Germany MAYER
2, Wire wrapping machine of South Korea SUNGIL

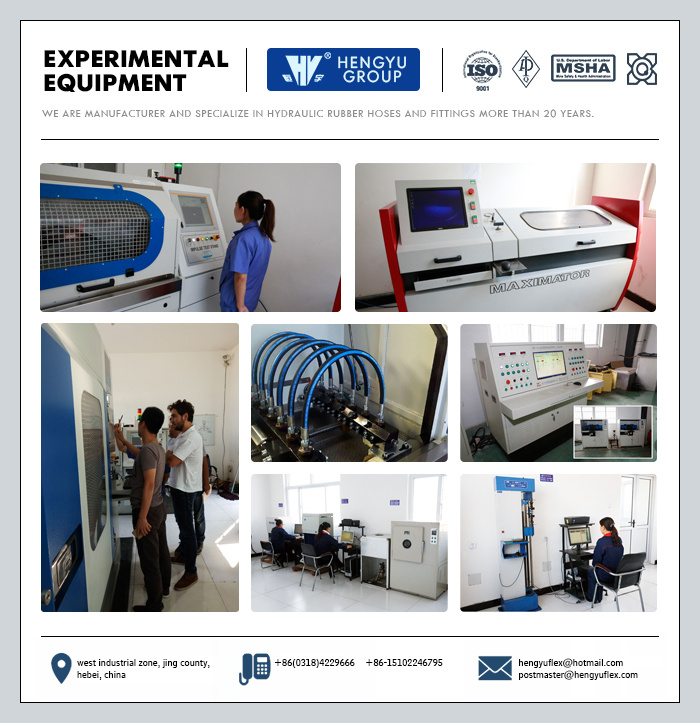

3, Burst-testing machine of MAXIMATOR
4, Impulse-testing machine of BIMAL
5, Unique product design with excellent production technology
6, Strict system of quality assurance
Our Certifications
1, ISO9001:2008
2, API Q1
3, API 7K
4, ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE
Our Services
1: Your inquiry related to our products or prices will be replied in 24 hours.
2: Best quality and competitive price.
3: We can offer OEM Services
4: We can provide FREE SAMPPLE for our customers
5: We can crimp hose assembly for our customers.
6: We welcome clients to visit our factory leading to better understanding of our production.
FAQ
1) Are you a factory or trading company ?
A: We are a professional manufacturer with over 18 years producing experience and 10 years exporting experience.
2) Where is your factory located and how can I visit your factory?
A: Our factory located in JingXian City, Hebei Province. 1 Hour far from Tianjin city, and 2 hours far from Beijing city by High-speed train.
3) How can I place an order?
A: You can contact us by email about your order details, or click 'Start Order' online. It is guaranteed by Alibaba platform that your payment online and our delivery on-time.
4) What is the shipping way and terms of payment?
1. for samples and parcels, door to door by DHL, FedEx, UPS, TNT ... etc;
2. for LCL, by air or by sea, or customer forwarder/agent also acceptable;
3. Wester union, T/T 30% down payment and 70% before shipping.
5) What is the production period normally?
1. Samples: within 7 working days.
2. Normal order: 20 to 45 days.
