| Prod Model: |
XGQ41F/PGQ41F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Connection Form: |
Welding/Flange/Thread/Tri-Clamp |
| Nominal Pressure: |
Pn16-40, ANSI150lb, JIS 10k |
| Function: |
for Tank Vessel Medium Discharge |
Product Description

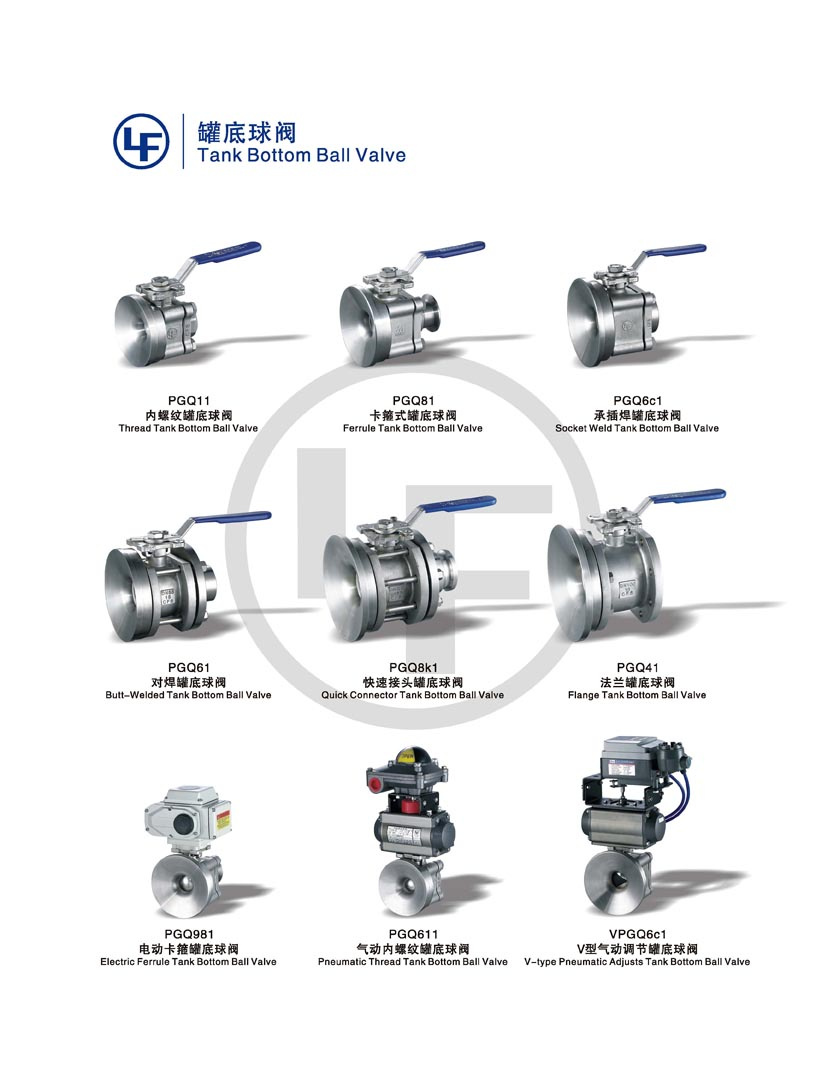

Tank bottom ball valve with a special tank bottom surface of flange connections for welding in the bottom of reaction tank or container, the end of the profile and the gravitational radius with an effective emission function, smooth tapered hole and close the tank ball over accumulation in the valve at the entrance to prevent the media, which ensure smooth discharge.
Use ISO5211 actuator mounting pad, without connecting brackets, so the actuator drive can be easily assembled.
Used in Industrial container, pharmaceutical fermentation reaction tank, food processing ingredients can, cosmetic mix vessels, chemical mixing tank, biological reaction tank, and so on.
WENZHOU PIONEER VALVE is a technology innovation-based valve manufacture since 1993. Have Wafer Type Ball Valve enterprise standard. "OULIFA" and "PIONEER" are registered trademarks for domestic and export trading.
After 20 years development, we accumulated technical experience and developed our own ERP business management software, to achieve enterprise-wide process information management and also passed the ISO 9001: 2008 quality management system certificate, CE 97/23/EC certificate and the TS certificate (manufacture License of the special equipment, pressure piping components).
Main Products:
Wafer type ball valve (Thin type flanged ball valve), flush tank bottom ball valve, jacketed ball valve, 3-Way ball valve, direct mounting high platform ball valve, V-port segment ball valve, sanitary ball valve, and a number of pressure valves like check valve, globe valve, gate valve etc.
Vacuum range like vacuum angle valve, vacuum ball valve, vacuum butterfly valve, vacuum gas charging valve, electromagnetic vacuum valve, vacuum gate valve, vacuum baffle valve, vacuum metering valve etc.
"Quality as the pioneer, service as the backup force" is our business concept. With highly capacities of developing, design and manufacturing, we ensure to provide high quality products and also do OEM which meet your requirements are welcome. We sincerely hope to establish long-term partnership with old and new customers in the future.
