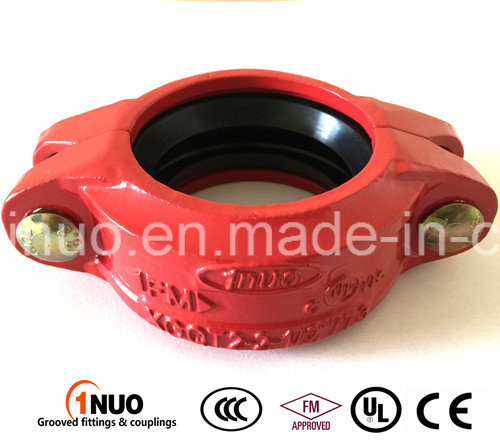

FM UL Approved Ductile Iron Grooved Rigid Coupling
| Price: |
US $ 0.5-1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
XGQT01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Cast Iron/ Ductile Iron-ASTM A536 |
| Pressure: |
300 Psi |
| Finish: |
Epoxy/ Painted / Galvanized |
| Color: |
Ral 3000 Red / Orange/ Blue/ White |
| Size: |
1"-12" |
| Gasket: |
EPDM |
| Bolt And Nut: |
Cold Heading Steel- Gold / Silver |
| Thread Standard: |
BSPT/ BSPP/ NPT |
| OEM: |
Yes |
| Structure: |
Universal |
| Flexible Or Rigid: |
Rigid |
| Material: |
Iron |
| Standard: |
Standard |
| Connection: |
Grooved |
Product Description

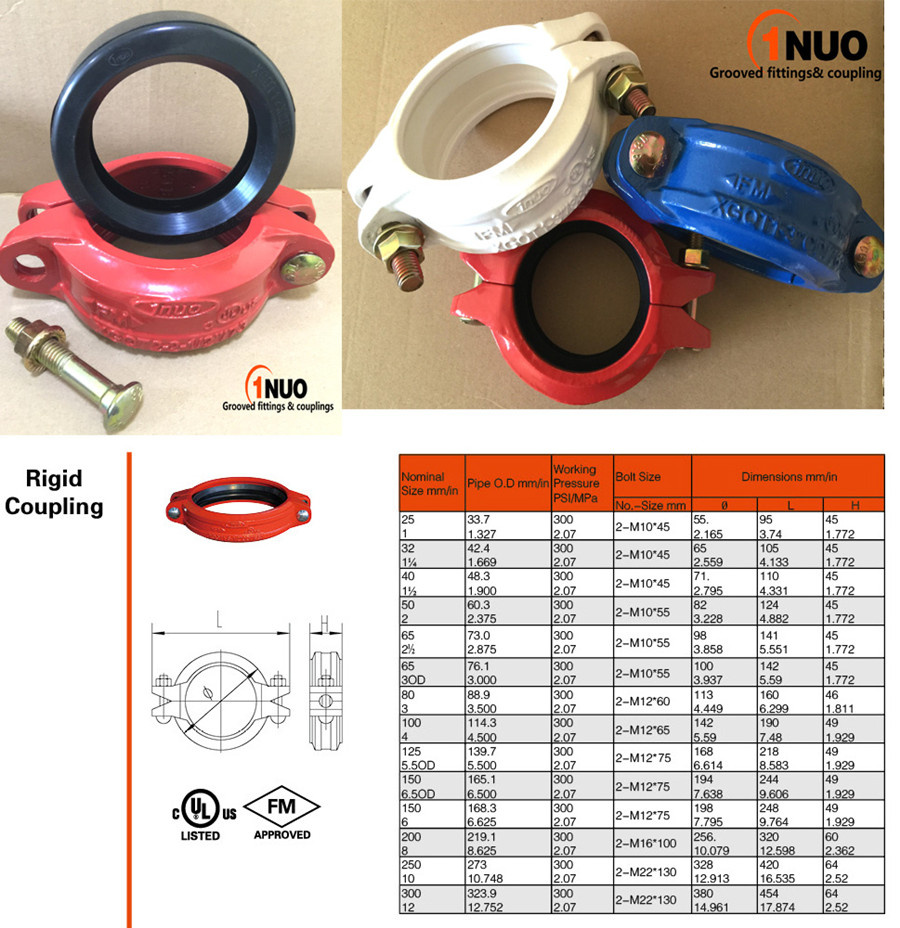

1. Rigid Coupling Specification:
NOTE: | Gasket | Material | Temperature Range | Recommendations |
| E | EPDM | -34ºC~ +110ºC | Recommended for hot water, dilute acid, oil-free gas
and other chemicals(except for hydrocarbon ) within the specified temperature range. Not recommended for petroleum and hydrocarbon. |
| D | NBR | -29ºC~ +82ºC | Recommended for petroleum products, gas with oil vapors, mineral oil and vegetable oil. Not recommended for high temperature materials. |
| S | Silicon Rubber | -40ºC~ +177ºC | Recommended for high temperature and dry air, and some high temperature chemicals. |
2. What could we do for you? Contact below e-mail now(1) FM/UL/CE certified standard high quality grooved fittings with best price.
(2) A quick delivery time within 20-30 days, and most convenient shipping port- Qingdao port.
(3) Only small quantity of MOQ for your order- 1 pallet (54 cartons)
(4) Free Samples offered and only request little express fee.
(5) We are very happy to welcome you visit our factory in Weifang, China.
(6)Product Insurance under written PICC to guarantee your order.3. Why choose "1NUO" Brand? Contact below e-mail nowIn Chinese, "1NUO" means "The Promise" ,which is a promise to our high quality and good reputation forever. When you choose 1NUO, you gain our guarantee and your valuable market. We believe that every customer's requirements can be satisfied by our professional & customized services.Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery.

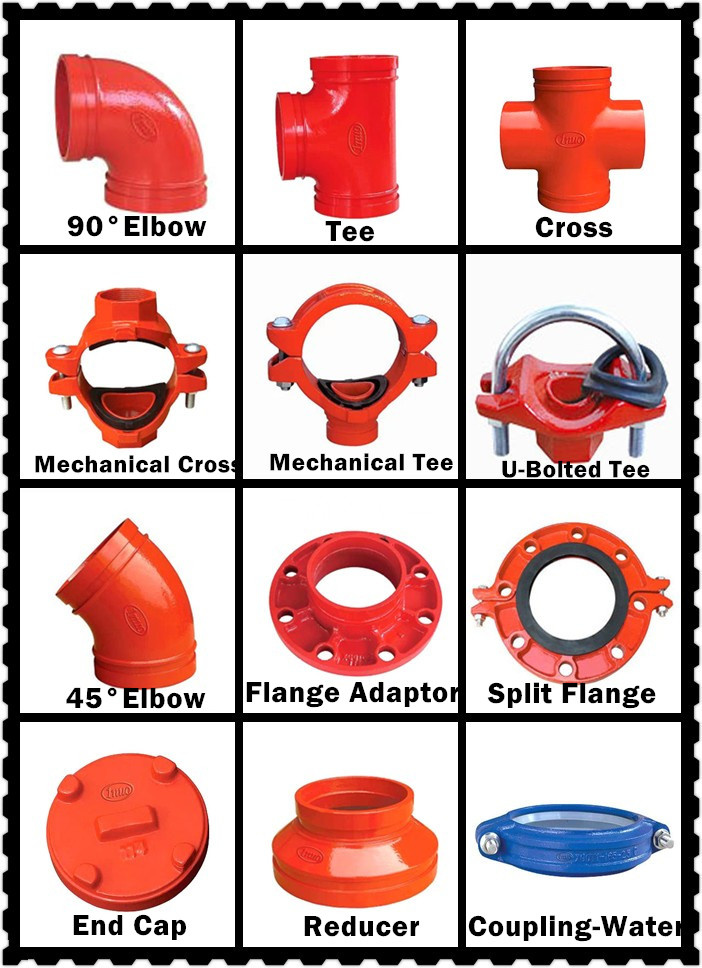

4. What we could offer else: Fire fighting systems and water systems: Flexible Coupling, 90° Elbow, 45° Elbow, Tee, Mechanical Tee, Mechanical Cross, Reducer, Flange, Cap ...
For all grooved fittings and more information, pls Contact below e-mail now !
Weifang Yinuo Casting Co., Ltd is a large high -tech enterprise specialized in development, creation, casting, production and painting of ductile iron grooved fittings since 2001. The company locates in Weifang of Shandong Province, China. With convenient transportation closed to Jinan-Qingdao and Weifang- Laiyang motorway.
With the fast development, the factory and supporting facilities now covers more than 3000, the annual production capacity is well above 30.000tons, and there are more than 200 employees, among which there are 10 engineering technicians and 5 senior engineers.
The company has strong technical strength, and possesses the world's first-class equipment and technology, as well as perfect testing methods. All rough castings of grooved fittings will be processed and produced by electric-furnace smelting, on-line monitoring and control and automatic molding methods. Now our facilities include eleven medium frequency furnace, four advanced Vertical parting molding lines and three painting lines. Every customer's requirements can be satisfied by customized services.
Yinuo's ductile iron grooved fittings have successively passed the China national type test, ISO9001 and FM&UL approvals etc. Our products are underwritten by China Ping An Insurance(Group) Co., Ltd...The grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, low-pressure steaming, , mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.
