| Prod Model: |
XGQT1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grooved Pipe Coupling Size: |
1-12"in |
| Grooved Pipe Coupling Surface Treatment: |
Epoxy Painting, Galvanizing, Daromet |
| Grooved Pipe Coupling Technology: |
Casting |
| Grooved Pipe Coupling Price: |
Manufacture Competitive Price |
| Flexible Or Rigid: |
Flexible |
| Standard: |
Standard |
| Connection: |
Fixed and Assembled by Rubber and Bolts |
| Structure: |
Grooved |
| Material: |
Ductile Iron |
Product Description
Product Details FM/UL/CE Ductile Iron Grooved Fittings for Fire protection System

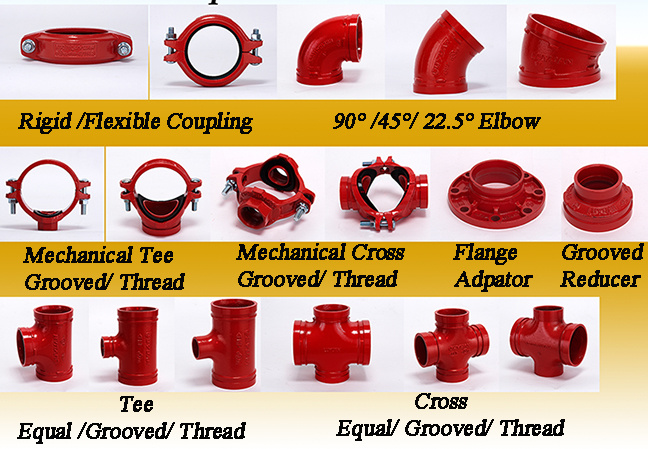

| Product Name | Ductile iron grooved pipe fittings and couplings |
| Product series | 1)Rigid coupling, Flexible coupling |
| 2)Grooved equal tee, Grooved reducing tee, Threaded reducing tee,Grooved |
| mechanical tee,Threaded mechanical tee,Threaded U-Bolted mechanical tee |
| 3)90°Elbow, 45°Elbow, 22.5°Elbow, 11.25°Elbow |
| 4)Grooved equal cross,Grooved reducing cross,Threaded reducing cross |
| 5)Grooved reducer,Threaded reducer, Threaded eccentric reducer |
| 6)Grooved adaptor flange, Threaded adaptor flange,Spilit Flange |
| 7)Cap |
| 8)Produce per customer's requirement |
| Brand | Luyuan |
| Certification | FM/UL/CE/CCC/ISO |
| Size | 1/2 inch-12 inch |
| Material | Ductile iron,ASTM A536/QT450-10 |
| Technics | Casting |
| Working pressure | 300Psi/2.07Mpa |
| Tensile strength | Min.Psi-65,000 (Mpa-448) |
| Yield strength | Min.Psi-45,000 (Mpa-310) |
| Elongation | Min.12% |
| Surface finish | Epoxy powder,Paint,Galvanized,Dacromet,Dipping Paint |
| Color | Red-Ral3000, Blue, Orange |
| Gasket | EPDM, Nitril,White Silica Gel |
| Capacity | 45000 Tons/Year |
| Packing | 1)Carton,Plywood pallet with plastic film |
| 2)Wood case |
| 3)As per cutomer's requirement |
| Delivery Time | 20-30 days after receiving deposit |
| Payment terms | T/T or L/C at sight |
| Application | 1)Automatic sprinkler system for fire protection on commercial,civil and |
| munisipal constructions like water supplying,gas supplying,heat supplying,etc. |
| 2)Industrial pipeline system on shipping, mine, oil field, textile,powder plant,etc. |
| 3)Pipeline system on subway station,railway station,airport,seaport,bridge,etc. |
Bolts and Nuts
Heat treated and electro galvanized bolts with oval neck, and heavy duty hexagon nuts.
Track head meet to the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183.
Rubber Gasket
Standard: Grade "E" EPDM (Color code: Green stripe)
Temperature range -30°F to +230°F (-34°C to +110°C). Recommended for cold and hot water service within the specified temperature range plus a variety of dilute acids, oil-free air and many chemical services. NOT RECOMMENDED FOR PETROLEUM SERVICES.
Optional: Grade "T" Nitrile NBR (Color code: Orange stripe)
Temperature range -20°F to +180°F (-29°C to +82°C). Recommended for petroleum products, air with oil vapors, vegetable and mineral oils within the specified temperature range. Not recommended for hot water services over +150°F (+66°C) or for hot dry air over +140°F (+60°C).
Grade "L" Silicone (Color code: Red stripe)
Temperature range -30°F to +350°F (-34 to +177°C). Recommended for dry heat, air without hydrocarbons to +350°F (+177°C) and certain chemical services. FIT products silicone gaskets are recommended for fire protection dry systems, all systems operating below 0°F (-18°C), plus dry heat, air without hydrocarbons, certain chemical services, and water to +160°F (71°C).
Our Services:
1.Any inquiries will be replied within 24 hours
2.Professional manufacturer.
3.OEM is available.
4.High quality, standard designs,reasonable&competitive price,fast lead time.
5.Faster delivery: Sample will be prepared in 2-3days.
6.Shipping: We have strong cooperation with DHL,TNT,UPS,MSK,China Shipping,COSCO, Sinotrans etc.
7.You can also choose your own shipping forwarder FAQ
1.What is your MOQ?
Our MOQ is usually 5 CTNS. 2.What is your delievery time?
The time of delievery is around 20-30days.
3.What is the shipping port?
We ship the goods via Qingdao port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can send us an email by click Contact Supplier bottom.
You can also call my mobile phone number 0086 15269658168
6.What is the location of your company?
Our company is located in the Weifang, Shandong Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

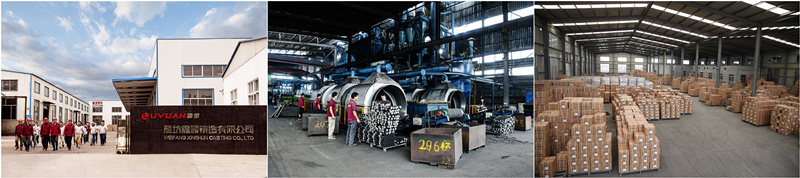

Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.
Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.
Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.
There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.
