for Home Furniture Using No Lock Swivel Caster
| Price: |
US $ 3-5/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
04P13PA0 |
| Load Height: |
5 1/8 Inch |
| Plate Size: |
94.5X66.5mm |
| Bolt Hole Spacing: |
75X45mm |
| Bolt Size: |
8X12mm |
| Wheel Materials: |
PP (Polypropylene) |
| Type: |
Rotating Wheel |
| Brake: |
Without Brake |
| Bearing Type: |
Plain Bearing |
| Surface Treatment: |
Zinc Plated |
Product Description

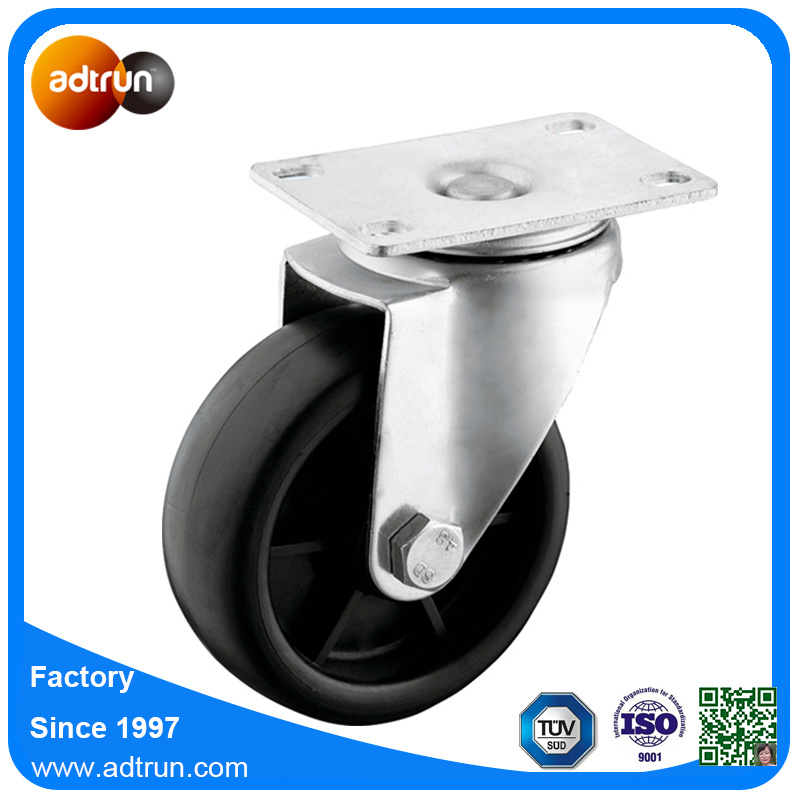

For Home Furniture Using No Lock Swivel Caster
Wheel Material: Polyurethane (PU) / Rubber / Polypropylene (PP) / Thermoplastic Rubber (TPR)
Wheel Diameter: 3-5 inch (75-125mm)
Tread Width: 1 1/4 inch (32mm)
Load Height: 4 1/4- 6 3/16 inch (108-160mm)
Plate Size: 3 3/4 x 2 5/8 inch (94.5x66.5mm)
Bolt Spacing Size: 3 1/16 to 2 13/16 x 1 3/4 inch( 75x45mm)
Wheel Bearing: Ball bearing / Sleeve bearing / Plain bore bearing
Loading capacity: 75-100kg

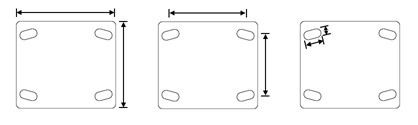

| Amounting size: |  |
| Size Instructions | Plate Size Bolt Spacing Size Hole Size |
| Heavy Duty Plate Casters | 114x100mm 86x70mm 10x20mm
140x110mm 105x80mm 11x18mm |
| Medium Duty Plate Casters | 94.5x66.5mm 75x45mm 8x12mm |
| Light Duty Plate Casters | 72x60mm 54x42mm Φ 8.5
60x60mm 46x46mm 6.5x13mm |

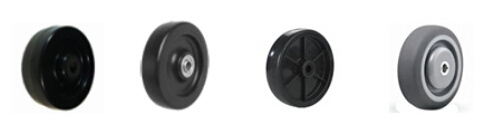

Optional Wheels:
Polyurethane Rubber Polypropylene (PP) Thermoplastic Rubber (TPR)

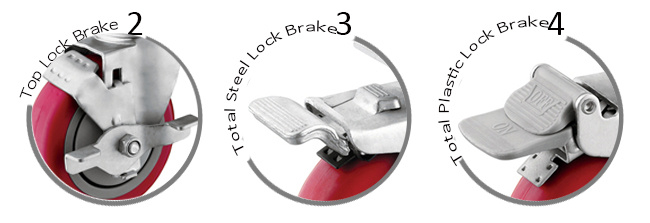

Optional Brake:

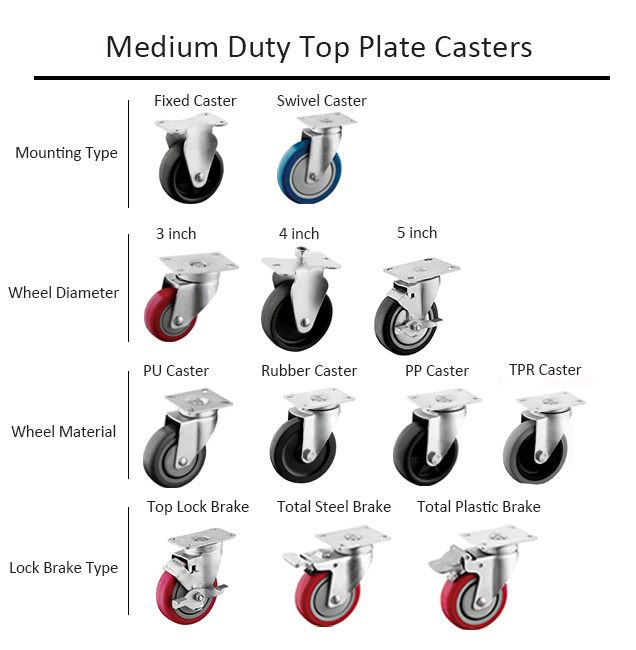

Series Parameters:Wheel
Dia. | Tread
Width | Load
Height | Loading
Cap.(Lbs) | Wheel
Material | Wheel
Bearing | Model Number |
| Rigid | Swivel | Swivel
W Brake |
| 3" | 1 1/4" | 4 1/4" | 150 | PP | Plain Bore | 03F13PA0 | 03P13PA0 | 03P13PA2 |
| 1 1/4" | 4 1/4" | 200 | Polyurethane | Precision Ball | 03F13UF0 | 03P13UF0 | 03P13UF2 |
| 03P13UF3 |
| 03P13UF4 |
| 1 1/4" | 4 1/4" | 150 | Rubber | Sleeve | 03F13SG0 | 03P13SG0 | 03P13SG2 |
| 1 1/4" | 4 1/4" | 150 | TPR | Sleeve | 03F13RG0 | 03P13RG0 | 03P13RG2 |
| 4" | 1 1/4" | 5 1/8" | 150 | PP | Plain Bore | 04F13PA0 | 04P13PA0 | 04P13PA2 |
| 1 1/4" | 5 1/8" | 200 | Polyurethane | Precision Ball | 04F13UF0 | 04P13UF0 | 04P13UF2 |
| 04P13UF3 |
| 04P13UF4 |
| 1 1/4" | 5 1/8" | 150 | Rubber | Sleeve | 04F13SG0 | 04P13SG0 | 04P13SG2 |
| 1 1/4" | 5 1/8" | 150 | TPR | Sleeve | 04F13RG0 | 04P13RG0 | 04P13RG2 |
| 5" | 1 1/4" | 6 3/16" | 150 | PP | Plain Bore | 05F13PA0 | 05P13PA0 | 05P13PA2 |
| 1 1/4" | 6 3/16" | 200 | Polyurethane | Precision Ball | 05F13UF0 | 05P13UF0 | 05P13UF2 |
| 05P13UF3 |
| 05P13UF4 |
| 1 1/4" | 6 3/16" | 150 | Rubber | Sleeve | 05F13SG0 | 05P13SG0 | 05P13SG2 |
| 1 1/4" | 6 3/16" | 150 | TPR | Sleeve | 05F13RG0 | 05P13RG0 | 05P13RG2 |
Polypropylene wheels' hardness is 65 shore D, and it can be used between -20 to 120 degree Celsius, with plain bearing, it is an economical choice for school furniture and lab furniture, and the maximum load weight is 150 lbs. The top plate and yoke of the casters are zinc plated, and it uses a bolt to rivet the wheel to the yoke.
Applications:
Material handing equipment, industrial equipment, platform trucks, scaffolding, shopping carts, dollies, luggage trolley, hospital moving equipment, medical beds,medium duty carriers, shelf fixtures, display rack, storage carts, school equipment, cargo equipment, industrial equipment, institutional equipment and so on.FAQ:
1. Q: Are you a factory or trading company
A: We are a caster wheels factory since 1997 with rich experience
2. Q: What types of caster wheels does Yajie have?
A: Swivel plate casters, rigid casters, thread stem casters, grip ring stem casters, round stem casters, expanding adapter stem casters, square stem casters and so on
3. Q : What materials are used for caster wheels?
A : Polyurethane (PU), Rubber, Polypropylene (PP), Thermoplastic rubber (TPR), PVC, Nylon, Cast Iron, PU on Cast Iron, Rubber on Cast Iron and so on
4. Q: Why choose us
A: 1) Strictly quality control system, in year 2016,we built a SGS standard caster testing lab. Every product has four inspections before delivery.
2) Independent designed machines to save labor cost and make less defect.
3) Delivery in time
4) OEM & ODM are acceptable
5) More surprises, you will find when connect with us
Jiaxing Yajie Metal & Plastic Products Co., Ltd focus on developing new technologies to improve the production lines and attain independent intellectual property rights, is specializing in casters, wheels and components more than 10 years. Now we have 35 sets of stamping machines and 7 sets our designed riveting machines, and 3 assembly lines. We also have our owned mold shop and welding shops. These make us to meet customers' special requirement swiftly. We manufacture various of caster wheels for hospitals, scaffolds, food service, electronic equipment and other industrial equipment. Our company has became the top rank caster manufacturer in Jiaxing, Zhejiang.
Our major products are industrial casters, heavy duty casters, scaffold casters, medical casters, and so on. Wheel sizes are from 2 inch to 8 inch, and maximum load capacity is up to 1000 lbs. We have top plate casters, grip ring stem casters, thread stem casters, square stem and round stem casters. In 2017, we designed a lockable platform carts for our customers.
Your specific production applications are our concerned, we find the suitable caster for your needs. Please contact us to do for you.
