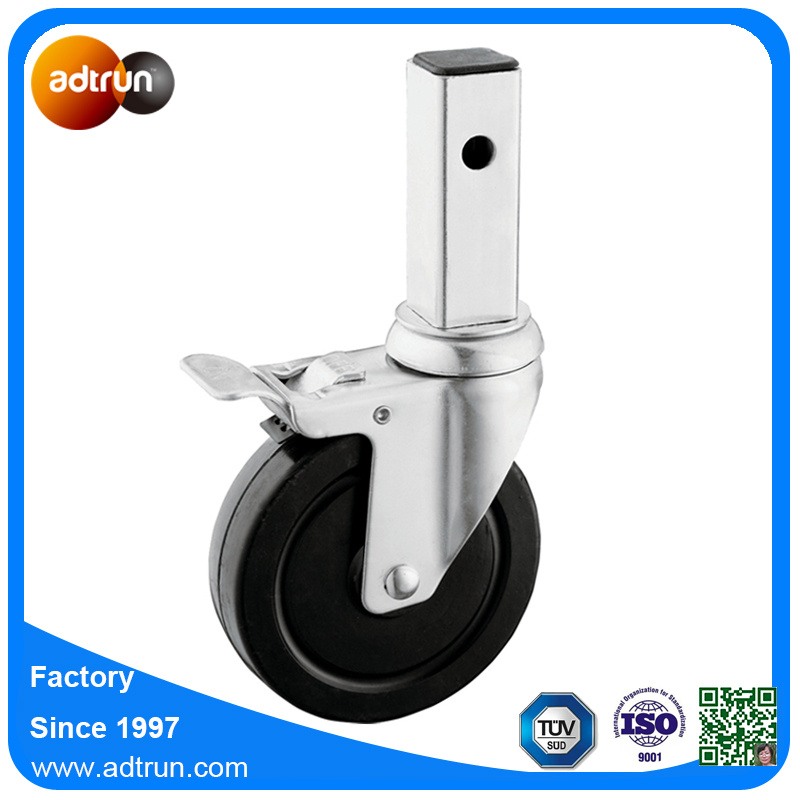

Medium Duty Square Stem Caster Rubber Scaffolding Wheel
| Price: |
US $ 2-5/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
05S13SB3 |
| Load Height: |
155mm |
| Square Stem Size: |
33X33X92mm |
| Color: |
Black |
| Application: |
Scaffolding |
| Swivel Head: |
Double Ball Bearing |
| Wheel Bearing: |
Sleeve Bearing |
| Caster Capacity: |
120 Kg |
| Type: |
Rotating Wheel |
| Wheel Material: |
Rubber |
| Brake: |
With Brake |
| Surface Treatment: |
Zinc Plated |
Product Description
Medium Duty Square Stem Caster Rubber Wheel for ScaffoldingWheel Diameter: 4-5 inch (100-125mm)
Wheel Material: Polyurethane / Rubber / Polypropylene / Thermoplastic Rubber
Tread Width: 32mm
Load Height: 130-155mm
Stem size: 33x33x92mm
Wheel Bearing: Sleeve Bearing
Load Capacity: 105-120 kg

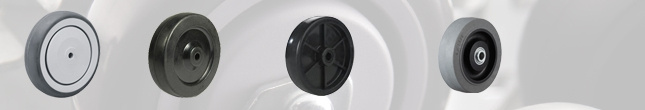

Optional Wheels:
Polyurethane(PU) Rubber Polypropylene(PP) Thermoplastic Rubber(TPR)

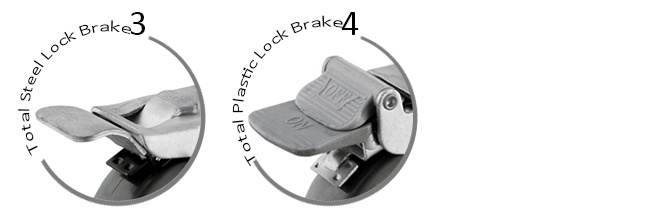

Optional Lock Brakes:
Series Parameters:Wheel
Dia. | Tread
Width | Load
Height | Loading
Cap.(KG) | Wheel
Material | Wheel
Bearing | Model Number |
| W/O Brake | W Brake |
| 4" | 1 1/4" | 5 1/8" | 105 | Polyurethane | Precision Ball | 04S13UF0 | 04S13UF3 |
| 04S13UF4 |
| 1 1/4" | 5 1/8" | 105 | Polyurethane | Sleeve | 04S13UB0 | 04S13UB3 |
| 04S13UB4 |
| 1 1/4" | 5 1/8" | 105 | Rubber | Precision Ball | 04S13SF0 | 04S13SF3 |
| 04S13SF4 |
| 1 1/4" | 5 1/8" | 105 | Rubber | Sleeve | 04S13SB0 | 04S13SB3 |
| 04S13SB4 |
| 1 1/4" | 5 1/8" | 105 | TPR | Precision Ball | 04S13RF0 | 04S13RF3 |
| 04S13RF4 |
| 5" | 1 1/4" | 6 1/8" | 120 | Polyurethane | Precision Ball | 05S13UF0 | 05S13UF3 |
| 05S13UF4 |
| 1 1/4" | 6 1/8" | 120 | Polyurethane | Sleeve | 05S13UB0 | 05S13UB3 |
| 05S13UB4 |
| 1 1/4" | 6 1/8" | 120 | Rubber | Precision Ball | 05S13SF0 | 05S13SF3 |
| 05S13SF4 |
| 1 1/4" | 6 1/8" | 120 | Rubber | Sleeve | 05S13SB0 | 05S13SB3 |
| 05S13SB4 |
| 1 1/4" | 6 1/8" | 120 | TPR | Precision Ball | 05S13RF0 | 05S13RF3 |
| 05S13RF4 |
FAQ:
1. Q: Are you a factory or trading company
A: We are a caster wheels factory since 1997 with rich experience
2. Q: What types of caster wheels does Yajie have?
A: Swivel plate casters, rigid casters, thread stem casters, grip ring stem casters, round stem casters, expanding adapter stem casters, square stem casters and so on
3. Q : What materials are used for caster wheels?
A : Polyurethane (PU), Rubber, Polypropylene (PP), Thermoplastic rubber (TPR), PVC, Nylon, Cast Iron, PU on Cast Iron, Rubber on Cast Iron and so on
4. Q: Why choose us
A: 1) Strictly quality control system, in year 2016,we built a SGS standard caster testing lab. Every product has four inspections before delivery.
2) Independent designed machines to save labor cost and make less defect.
3) Delivery in time
4) OEM & ODM are acceptable
5) More surprises, you will find when connect with us
Jiaxing Yajie Metal & Plastic Products Co., Ltd focus on developing new technologies to improve the production lines and attain independent intellectual property rights, is specializing in casters, wheels and components more than 10 years. Now we have 35 sets of stamping machines and 7 sets our designed riveting machines, and 3 assembly lines. We also have our owned mold shop and welding shops. These make us to meet customers' special requirement swiftly. We manufacture various of caster wheels for hospitals, scaffolds, food service, electronic equipment and other industrial equipment. Our company has became the top rank caster manufacturer in Jiaxing, Zhejiang.
Our major products are industrial casters, heavy duty casters, scaffold casters, medical casters, and so on. Wheel sizes are from 2 inch to 8 inch, and maximum load capacity is up to 1000 lbs. We have top plate casters, grip ring stem casters, thread stem casters, square stem and round stem casters. In 2017, we designed a lockable platform carts for our customers.
Your specific production applications are our concerned, we find the suitable caster for your needs. Please contact us to do for you.
