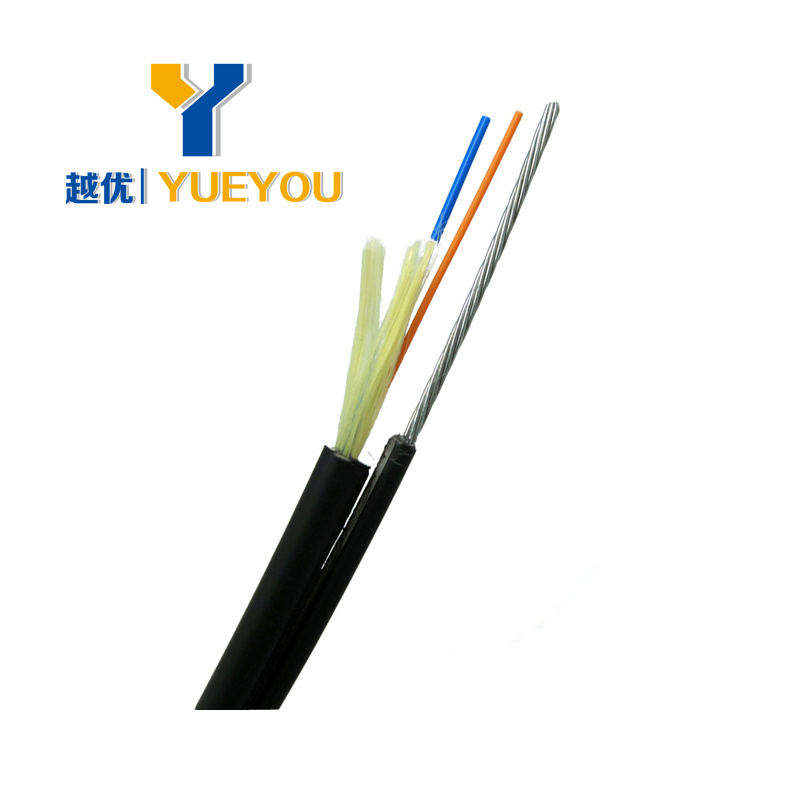

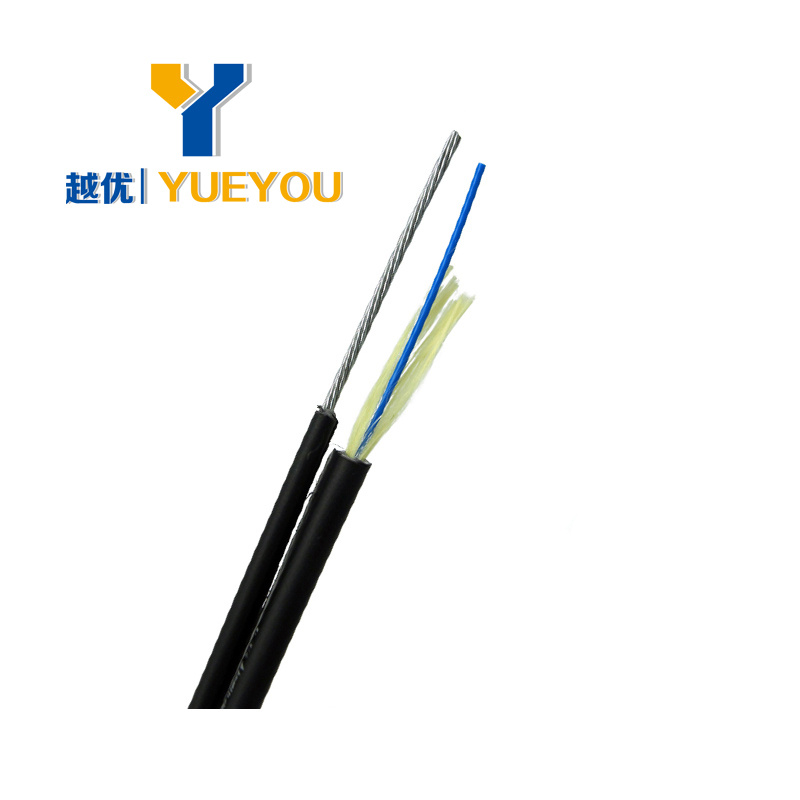

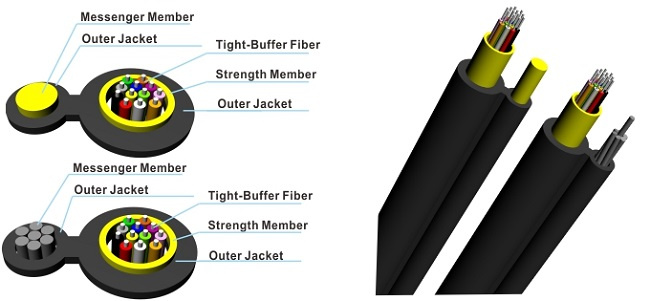

The 900µm tight buffer fiber with aramid yarn are positioned in the center of the LSZH LSZH jacket.The cable structure Fig8 is made of with steel wire strength member.
Features:
1-12Fiber is positioned in the center.
Fiber selection:Singlemode or multimode.
Fiber type:G652D or G657A1 or G657A2.
Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.
Application:
Used in access network or as access cable from outdoor to indoor in customer premises network;
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
Fiber datasheets:
Fiber Type
G.657A1
G.657A2
OM3
OM4
Attenuation(+20ºC)
@850nm
≤2.3dB/km
≤2.3dB/km
@1300nm
≤0.6dB/km
≤0.6dB/km
@1310nm
0.36 dB
0.36 dB
@1550nm
0.22 dB
0.22 dB
Overfilled launch Bandwidth
@850nm
≥1500MHZ.km
≥3500MHZ.km
@1300nm
≥500MHZ.km
≥700MHZ.km
Effective Modal Bandwidth
@850nm
≥2000MHZ.km
≥4700MHZ.km
10GB/S Ethernet link length
≤300m
≤550m
Min Bending Radius(mm)
10
7.5
30
30
Physical characteristics and mechanical performance
Fiber Count
CableDiameter(mm)
CableWeight(kg/km)
Tensile Strength (N/100mm)
CrushResistance (N/100mm)
MinimumBending Radius(mm)
Storage Temperature(ºC)
1-4
6.0×3.0
27
600/300
1000/500
15D/30D
-40~+70

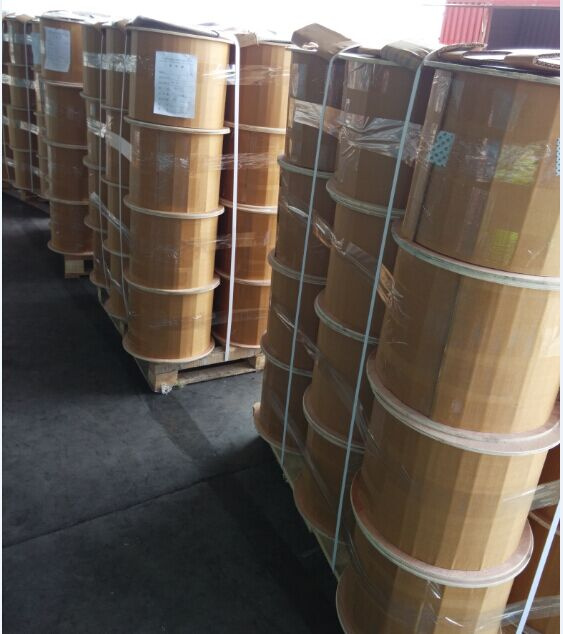

Packing:

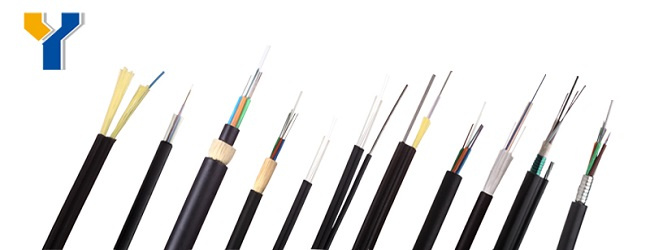

More Popular Products:

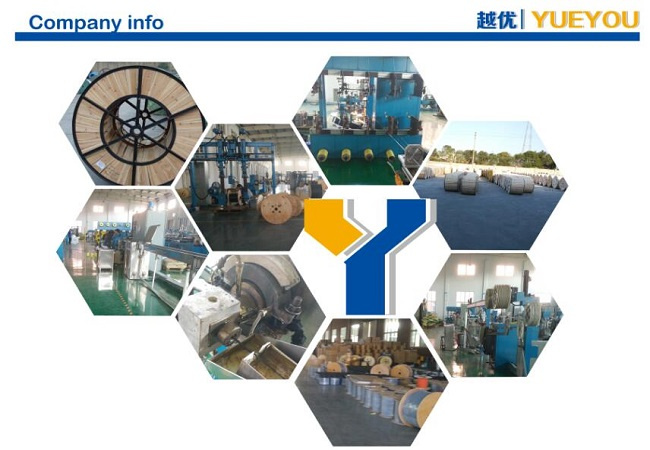

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
