FTTH Fiber to The Home Drop Cable G657A2 Con Mensajero De Acero 1.2mm
| Price: |
US $ 0.05-0.12/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GJYFXCH |
| Fiber Type: |
G652D/G657A/Om1/Om2/Om3 |
| Fiber Count: |
1core 2 Cores 4cores |
| Fiber: |
Singlemode /Multimode |
| Strength Member: |
FRP or Steel Wire |
| Self Supporting Strength Member: |
Steel Wire |
| Sheath: |
LSZH or PVC |
| Installation: |
Indoor/Outdoor |
| Storage Temperature(ºC): |
-40~+70 |
| Application: |
Telecommunications |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
Product Description

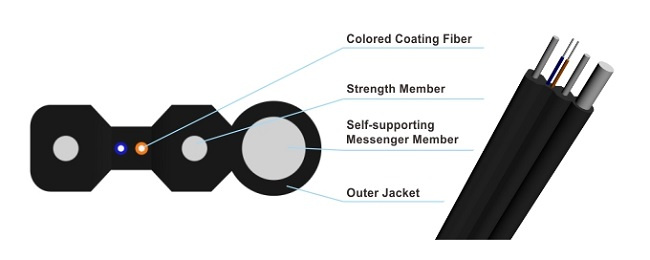

FTTH Fiber to the home drop cable g657a2 con mensajero de acero 1.2mm Description:The drop cables are widely used in FTTH project, flame retardant jacket and with supporting messenger wire, Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.The most common is 1,2,4 fiber,it is easy to pull the fibers out from the cables, the FTTH drop cables are ideal to use for connecting outdoor optical cable to indoor transceiver, suitable for being used in homes and offices.
Features:Fiber count: 1-12Fiber is positioned in the center.Fiber selection: Singlemode or multimode.Strength member: FRP.Self supporting messenger member: Steel wire.Fiber type:G652D or G657A1 or G657A2.
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.Applications:Used in access network or as access cable from outdoor to indoor in customer premises network;
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
Fiber datasheets: | Fiber type | | G.657A1 | G.657A2 | OM3 | OM4 |
| Attenuation(+20ºC) | @850nm | | | ≤2.3dB/km | ≤2.3dB/km |
| | @1300nm | | | ≤0.6dB/km | ≤0.6dB/km |
| | @1310nm | 0.36 dB | 0.36 dB | | |
| | @1550nm | 0.22 dB | 0.22 dB | | |
| Overfilled launch Bandwidth | @850nm | | | ≥1500MHZ.km | ≥3500MHZ.km |
| | @1300nm | | | ≥500MHZ.km | ≥700MHZ.km |
| Effective Modal Bandwidth | @850nm | | | ≥2000MHZ.km | ≥4700MHZ.km |
| 10GB/S Ethernet link length | | | | ≤300m | ≤550m |
| Min Bending Radius(mm) | | 10 | 7.5 | 30 | 30 |
Cable datasheets:| Fiber Count | Cable Diameter
(mm) | Cable Weight (kg/km) | Tensile Strength
(N/100m) | Crush Resistance
(N/100mm) | Minimum Bending Radius(mm) | Storage
Temperature(ºC) |
| 1-4 | 2×5.2 | 20 | 600/300 | 2200/1000 | 15D/30D | -40~+70 |
| 6-12 | 3×9.0 | 27 | 1200/600 | 1100/500 | 15D/30D |

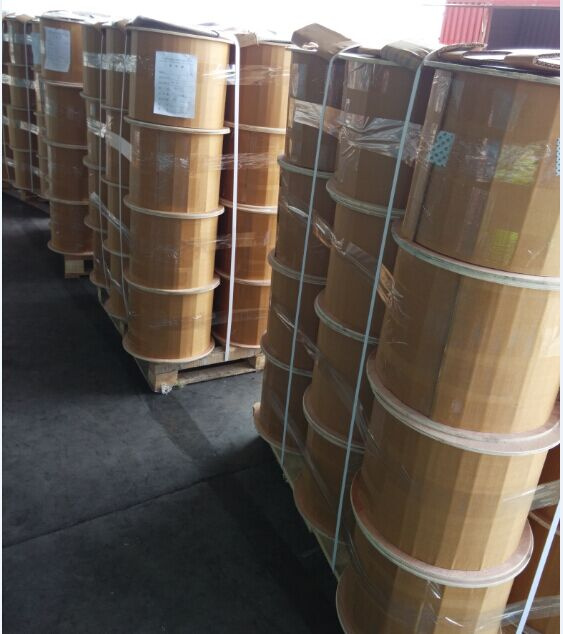

Packages:

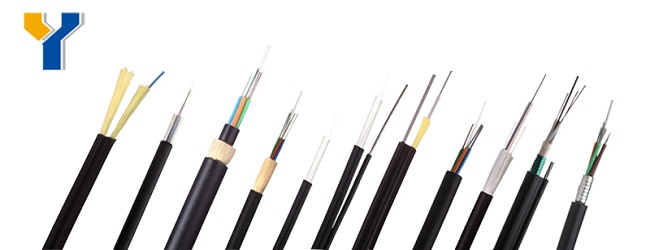

More popular products:
About us:
Contact us:If you are interested in our products,please contact with our sales,we will reply you
on 24 hourswith english o spanish. Also you can send us a email o call us by telephone.

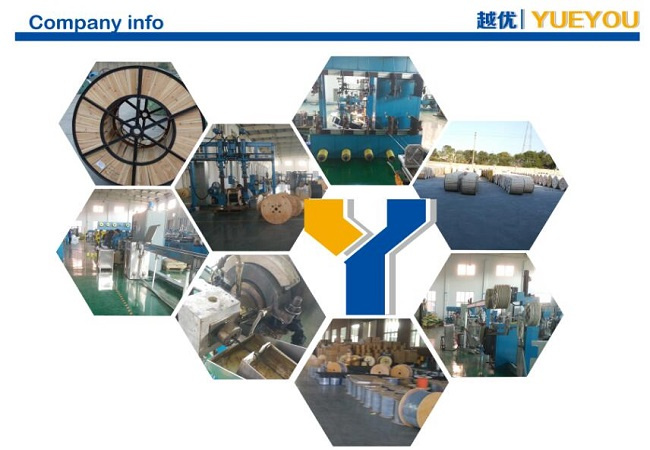

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.
