| Prod Model: |
xinlihui |
| Machine Item: |
High Speed Computer Panel Saw |
| About Agent: |
Look Forward Agent |
| Price: |
Our Most Favorable Price for You |
| Quality: |
Our Best Quality for You |
| Voltage: |
380V or as Customer Needs |
| Delivery Detail: |
20 Days |
| Board Feeding Type: |
Rear Feeding |
| Power: |
20.5kw |
| Max.Cutting Length: |
3300mm |
| Warranty: |
12 Months |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
FDA |
Product Description
1,Woodworking Machine Full automatic high precision Computerized table saws:Panel saw is any type of sawing machine that cuts sheets into sized parts. Panel saws are used by cabinet shops to easily cut plywood andmelamine sheets into cabinet components. They are also used by sign shops to cut sheets of aluminum, plastic and wood for their sign blanks. Panel saws typically fall into one of two categories: Horizontal and Vertical. Some higher end panel saws feature computer controls that move the blade and fence systems to preset values. Other lower end machines offer simplicity and ease of use.1. this machine is suitable for processing all kinds of MDF, Particleboard, ABS sheet, PVC sheet, plexiglass panels and solid wood structure and hardness similar to that of the plate.
2 ,Maximum sawing thickness is 120mm;.
2, G model with industrial control computer as the control center, with the optimization software, production and operation is simple;
3, P330HG can be designed with a single software and seamless docking, to achieve intelligent production of furniture;
4, P330HG configuration of the South Hing optimization software, help to improve the utilization of plate;
5, double independent side shoot technology to ensure the accuracy of sawing;
6, the former air floating beads work table, so that the delivery of the plate is more light and smooth operation, reduce the damage to the plate,
7. Suitable for batch production.
8. Mobile Workbench straight steel rails, wear-resistant, precisely and flexibly.
9. Mobile Workbench uses the high strength extruded aluminum alloy, high strength, and not changed.
10. Mobile table surface oxidation, beautiful and durable.
11, and secant of main saw blade saw blade angle displayed by the intuitive precise angle.
12, main blade lifting screw nut structure, stable and reliable.
13. Secant line saw blade lifting, swinging by the handle adjustment, simple and efficient. Using high quality precision cylindrical Guide, activity light, high accuracy and long service life. Main saw blade lifting Assembly adopt imported precision linear Guide and is equipped with automatic timed greasing system, which effectively guarantees the precision of linear guides, easy to use. Superior cutting ability, Super saw momentum. 50% higher than other similar devices, and make cutting smoother. Main saw blade slot sawing with electric lift, simple and convenient operation.
2,Technical parameters
| Model | P330H |
| Max.cutting length | 3280mm |
| Max.cutting thickness | 120mm |
| Diameter of main saw blade | Φ460mm |
| Diameter of scoring saw spindle | Φ180mm |
| Main saw rotating speed | 4200rpm |
| Scoring saw rotating speed | 6500rpm |
| Saw carriage forward speed | 5-80m/min |
| Saw carriage backward speed | 100m/min |
| Main saw motor | 18kw |
| Automatic feeding speed | 80m/min |
| Overall dimension(L*W*H) | 5830*6630*1810mm |
| Total power | 20.5 KW |
3,All the models| Model | NPL330HG | P330HG | P330H | P330FG
(MJK1333FG) | P280FG | P330F
(MJK1333F) | P280F |
| Max.cutting length | 3300mm | 3300mm | 3300mm | 3280mm | 2830mm | 3280mm | 2830mm |
| Max.cutting thickness | 120mm | 120mm | 120mm | 90mm | 76mm | 90mm | 76mm |
| Diameter of main saw blade | Φ460mm | Φ460mm | Φ460mm | Φ400mm | Φ350mm | Φ400mm | Φ350mm |
| Diameter of scoring saw spindle | Φ180mm | Φ180mm | Φ180mm | Φ180mm | Φ180mm | Φ180mm | Φ180mm |
| Main saw rotating speed | 3910rpm | 3910rpm | 3910rpm | 4200rpm | 4200rpm | 4200rpm | 4200rpm |
| Scoring saw rotating speed | 4150rpm | 4150rpm | 4150rpm | 6500rpm | 6500rpm | 6500rpm | 6500rpm |
| Saw carriage forward speed | 5-80m/min | 5-80m/min | 5-80m/min | 9-50m/min | 9-50m/min | 9-50m/min | 9-50m/min |
| Saw carriage backward speed | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min |
| Main saw motor | 18kw | 18kw | 18kw | 15kw | 11kw | 15kw | 11kw |
| Automatic feeding speed | 80m/min | 80m/min | 80m/min | 50m/min | 50m/min | 50m/min | 50m/min |
| Rear feeding speed | 36m/min | - | - | - | - | - | - |
| Overall dimension(L*W*H) | 6550×9200×2020mm | 6460×9200×2020mm | 6460×6900×2020mm | 5830*6630*1810mm | 5330*6630*1810mm | 5830*6630*1810mm | 5330*6630*1810mm |
| Total power | 35.5 KW | 27.6KW | 27.6KW | 20.5KW | 16.2KW | 20.2KW | 15.7KW |

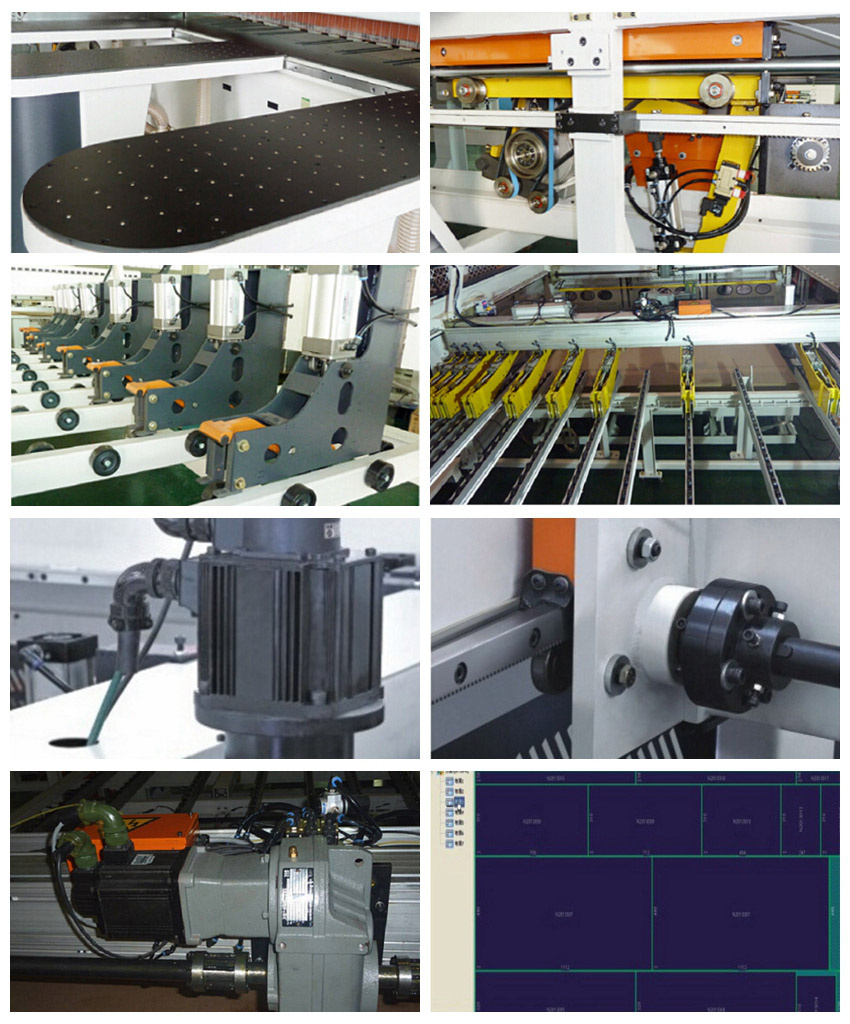

4,Some details of pictures for you:

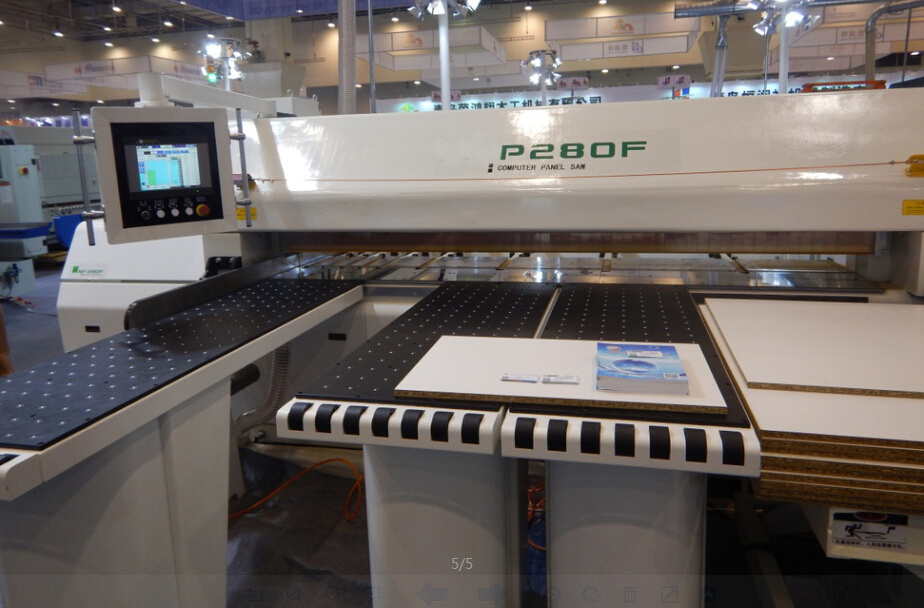

5,Exhibition photos for you:

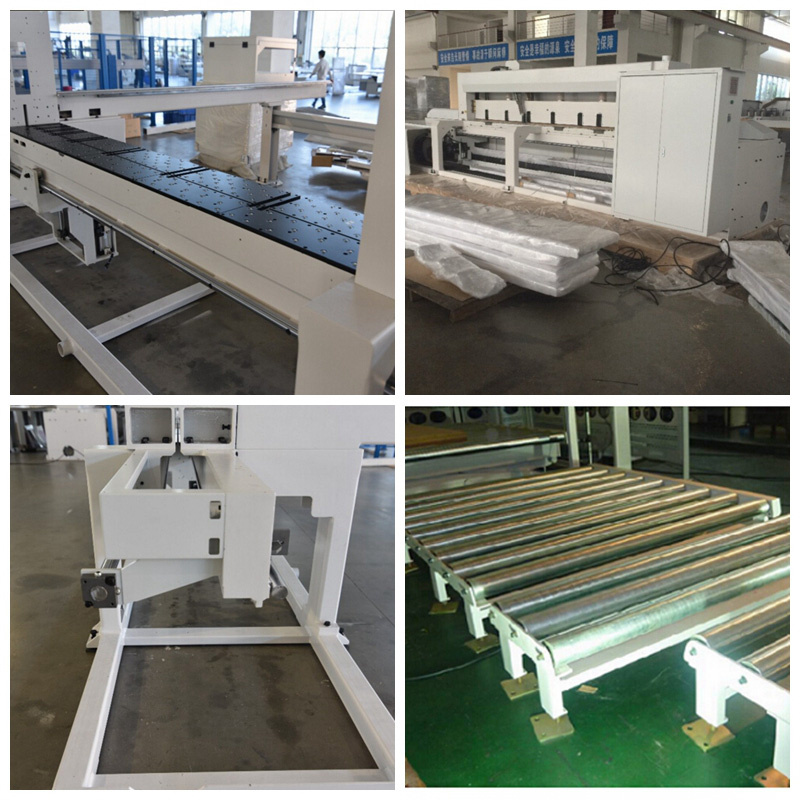

6,Our working shop for you:
7,Wooden box packaging
8,Here we promise these :9 contact with us
1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you
For further information about machine or price or other service , plz contact with us by email or QQ or wechat
Your enquiry are always warmly welcomed
