| Price: | US $ 2000-6000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | MJ61-32TAY |
|---|---|
| Overall Dimension: | 3300*3150*900mm |
| Tilting Saw Blade: | 0-45-90 Degree |
| Max Cutting Length: | 3200mm |
| Main Motor: | 5.5kw |
| Type: | Table Panel Saw |
| Layout: | Horizontal |
| Controlling Mode: | Hydraulic Semi-automatic |
| Automatic Grade: | Semiautomatic |
| Precision: | High Precision |
| Certification: | ISO |
Professional Manufacture in Sliding Table Panel Saw line.

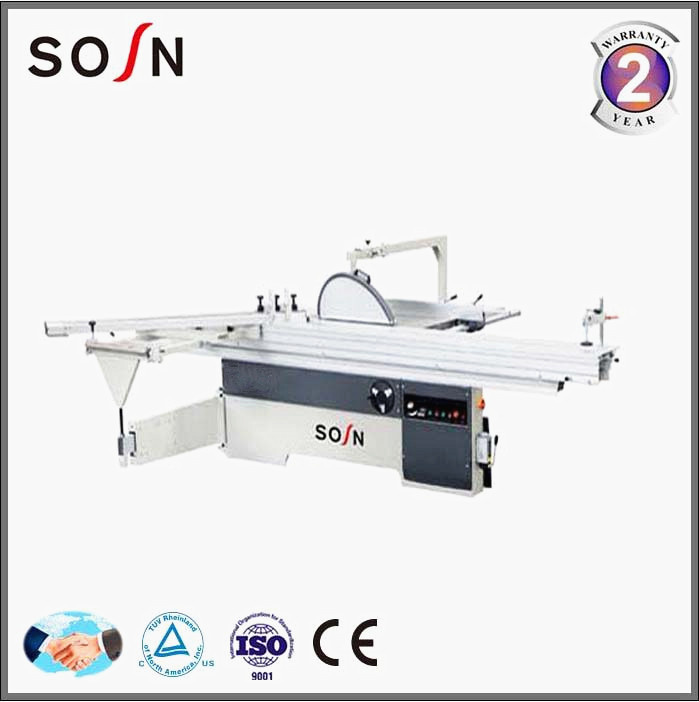

MJ61-32TAY Sliding table panel saw machine with TWO YEARS WARRANTY
1.This model is we make for Italy brand,we are the OEM factory for them
2.It is cylindrical guide way of lifting , same structure as Altendorf.
3.A type sliding table, the width is 400mm, with inside between is 145mm, much more precision and bearing.
4.Electric lifting of main saw blade to up and down
5.Digital readout of degree.
6.The inside structure is much much better in using , lower noise , easy operation.
7. with oil pump ,
Sliding Table Panel Saw Features
1),Twice dynamic balance tested for each spindle to improve the machine precision.
2),German imported bearing and belt
3),Heavy-Duty with unique design
4),14 positions-location to make sure its stability and precision during delivery and working.
5).5.5kw+1.1kw National standard big power motor with aluminum shell.

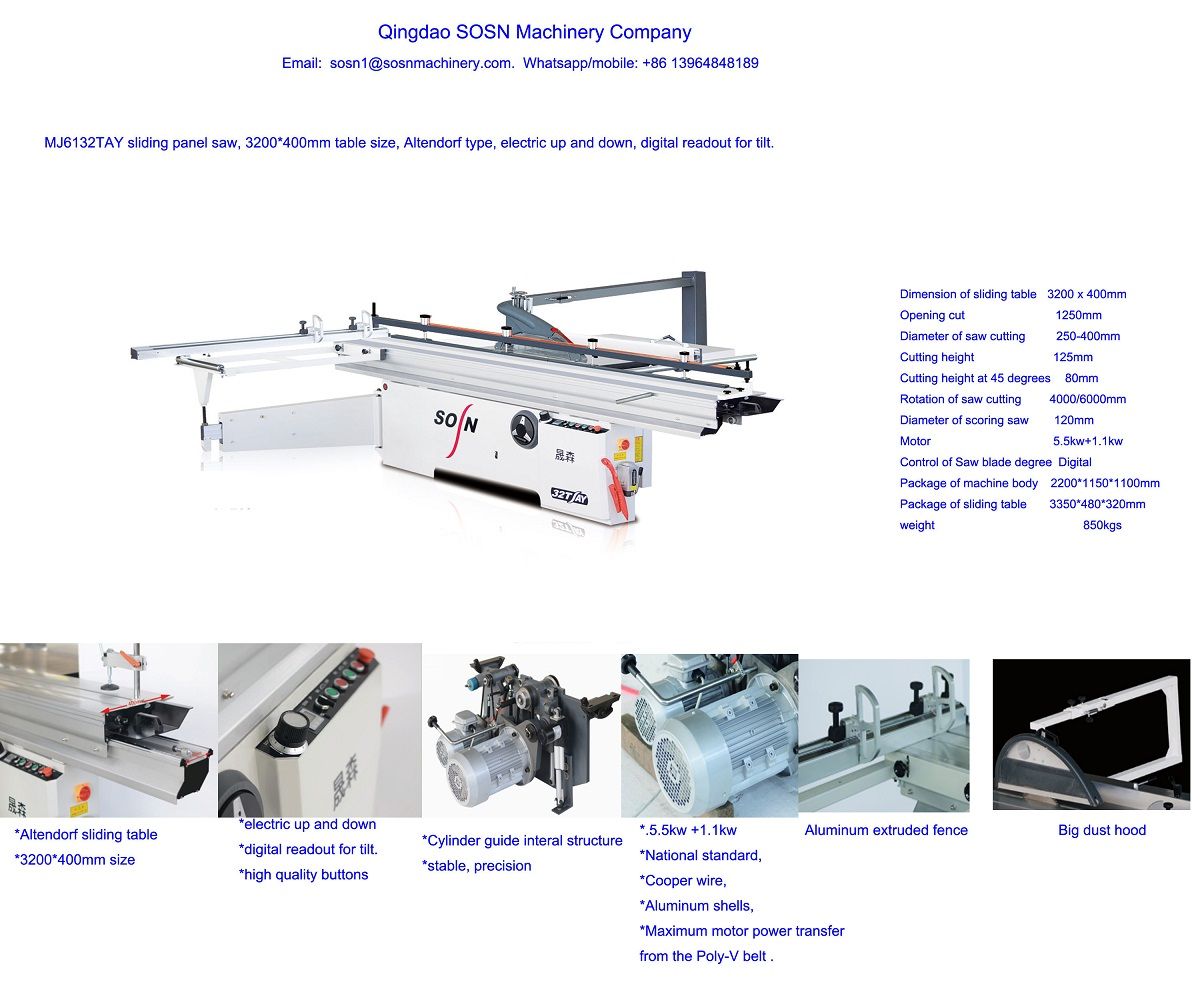

Main parameter for Sliding table panel saw machine
Model | MJ61-32TAY |
Sliding table size(mm) | 3200*400 |
Gross cut capacity(mm) | 3200 |
Width between saw blade&rip fence(mm) | 1250 |
Saw blade diameter(mm) | 300(250-400) |
Height of cut (300mm) | 70-80 |
main saw spindle Speed rpm | 4500/6000 |
Main spindle diameter(mm) | 30 |
Tilting saw blade | 0-45& 90°(digital readout) |
Motor Power(kw) | 5.5+1.1 |
Scoring saw blade dia (mm) | 120 |
scoring saw blade speed rpm | 8000 |
Scoring saw diameter (mm) | 20 |
Weight(kgs) | 850 |
machine body Package size | 2200*1150*1100 |
Sliding table Pack size (mm) | 3350*480*320 |
For MJ61-32TAY Sliding table saw package
Packing size for machinebody(L*W*H) | 2200*1150*1100mm |
Packing size of sliding table | 3350*480*320mm |
8 sets for 20GP Container. 24 sets for 40HQ Container
About SOSN Factory
| 1 | 17 year production experience in panel saw machine. |
2 | 11,000 square meter panel saw workshop, first class skilled workers,one hour to Qingdao port. |
3 | 5 steps strict quality control,CE certificate available. |
4 | Timely delivery with short production period. |
5 | Professional afer-sale service, Email will be get back in 24 hours. |
6 | More than 70 countries customers have enjoyed SOSN panel saw |
Sliding Table Saw Show
Business terms for SOSN Panel Cutting Machines
Price: | FOB Qingdao(any Chinese port) |
CIF(your desnitation port) | |
EXW or other | |
Package | Standard wooden case with strecth film. |
Payment | T/T or Western Union. 30%deposit,balance before delivery |
Delivery time : | Within 20 days or negotiate |
Q1.How to choose the right panel saw?
A:Mainly depends on your max panel cutting lengh, for standard panel size,1220*2440mm size,
For example, for MJ6132TD, it means max cutting length is 3200mm, 0-45 tilt cutting,D sliding table structure.(also it is best seller model for forgien maket)
We can recommend you right models based your personal requirment if you do not know how to choose.
Q2.What's the lifetime of SOSN panel saw machine?
A: It depends how you use your panel saw, if you use it in good maintenance,at least ten years.
now our first SOSN panel saw is still in using in our own factory,16 year already.
Q3.How to install the panel saw/wood cutting machine?
A: Before delivery, we will test-run machine, every part is ready positioned, very easy to install,
we will send installation video for reference.
Q4.How about the after-sale service?A: We will reply your email in 24 hours.anything urgent,call us freely for our 24 hours technician support.
Q5.Can you supply some special certificates for customes clearace?
A:Yes, before our confirmation for your order, just tell us the certificates you need for your customs clearance, we will ready it in advance.
Such as CO,CF CCPIT,CQC.etc
About SOSN WOODWORKING MACHINERY FACTORY
Qingdao SOSN Machinery Co., Ltd is a professional manufacturer of woodworking machinery, and have been in this line for more than 15 years.
At start, we are only a small work shop with 5 workers to produce panel saw machine;
Step by step, 2000 year, we got ISO approved and start to export;
2003 year, we move to new factory, that time we have 25 workers;
At same time, our woodworking machines got approved by domestic market, we have 30 panel saw agents until 2005 year.
Also we pay much attention to foreign market, in 2012,we got CE certificate;
On January 2013, we more to our new and bigger factory;
Until 2015 year, more than 70 countries from Southeast, the Middle East, the whole America, Europe,have enjoyed SOSN woodworking machines,
2015, we have our joint-venture, Holzer Company for computer saw and edge banding production.
We are better and better.
Welcome your visiting!
Working video :https://www.youtube.com/watch?v=JcJChTb17Gk (CNC type)
https://www.youtube.com/watch?v=fF0jhpb6B2E(manual control)
http://v.youku.com/v_show/id_XODczMTg0ODA0.html (MJ61-32TAY)
Contact us freely for more sliding table saw machine details.
