Product FeaturesPower supply: 2.5-12 KVA
Voltage :220, 380V
Rated current: 10-32A
Min. inner diameter of workpiece: 15-60m
Max. outside diameter of workpiece: 220-1020mm
Max. width of workpiece: 95-380mm

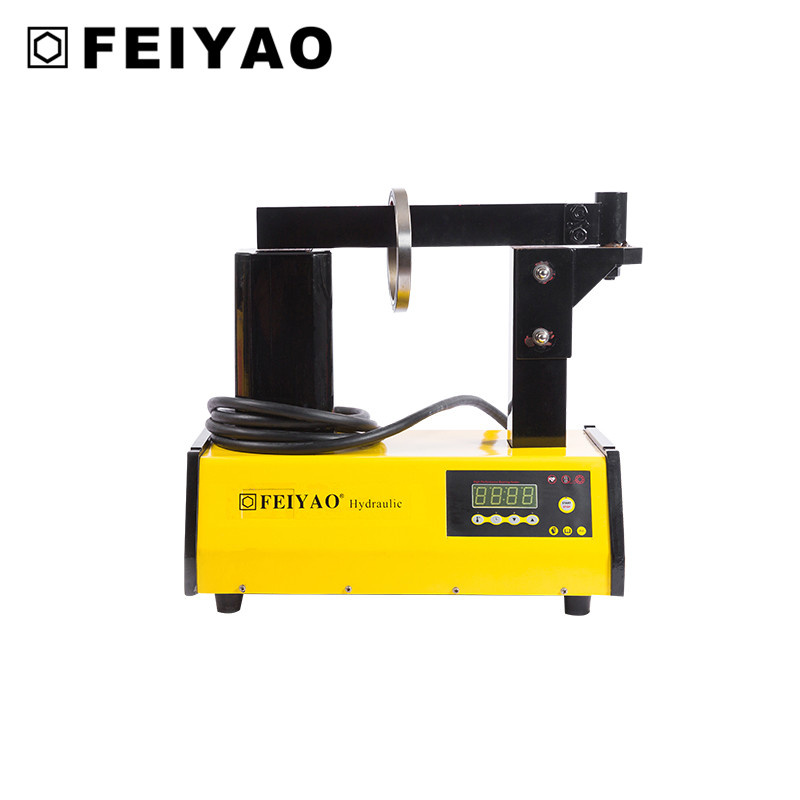

Stainless steel induction heater
Bearing heater/induction heater device
1. Improve assembly quality, even heating, high precision, keep surface harness constant;
2. Improve work efficiency, quick heating speed, reduce works strength, improve assembly progress, reach to the aim of civilized production;
3. Rational and advanced in structure, easy, safe, reliable to operate with fire danger;
4. Save energy sources, reduce cost, improve profit, saving 100% oil compared with oil induction heating, save 60% oil compared with electric furnace;
5. After stopping heating, ZBJ series induction heater will automatically demagnetize below 0.8mt, which conforms to ZJS-004 standard. So it is the best induction heater equipment for civilized production, high-efficiency production and safe production.Competitive Advantages1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.Technical ParametersModel | SV24T10S | SV24T15S | SV24T20S | SV24T25S |
Power supply (KVA) | 2.5 | 3.6 | 10 | 12 |
Rated Voltage (V) | 220 | 22/380 | 380 | 380 |
Rated Current (A) | 10 | 16 | 25 | 32 |
Frequency (Hz) | 50 | 50 | 50 | 50 |
Rocker Arm Design | -- | -- | √ | √ |
Magnetic Section (mm) | 40*40 | 45*45 | 65*65 | 85*85 |
Max. Weight of Workpiece (kg) | 15 | 50 | 150 | 600 |
Min. Inner Diameter of Workpiece (mm) | 15 | 20 | 45 | 60 |
Max. Outside Diameter of Workpiece (mm) | 220 | 480 | 720 | 1020 |
Max. Width of Workpiece (mm) | 95 | 175 | 200 | 380 |
Temperature Control | √ | √ | √ | √ |
Temperature Range (ºC) | 40-250 | 40-250 | 40-250 | 40-250 |
Magnetic Temperature Feeler | √ | √ | √ | √ |
Digital Display | √ | √ | √ | √ |
Time Setting | √ | √ | √ | √ |
Longest Time(minute) | 0-99 | 0-99 | 0-99 | 0-99 |
Sound Remind | √ | √ | √ | √ |
Error Warning | √ | √ | √ | √ |
Automatic Heat Preservation | √ | √ | √ | √ |
Demagnetization | Manual/Auto | Manual/Auto | Manual/Auto | Manual/Auto |
Heating Rod | 10, 14, 20, 30, 40 | 14, 20, 30, 45 | 30, 40, 50, 65 | 40, 60, 85 |
Extending Rod | Customized | Customized | Customized | Customized |
Warranty(Year) | 1 | 1 | 1 | 1 |
Dimension (mm) | 260*240*260 | 510*300*290 | 675*520*580 | 1600*850*1250 |
Weight(kg) | 15 | 35 | 84 | 250 |
Packaging Details1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.Company Introduction
