| Prod Model: |
G10 Air Pick |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
G7 G10 G15 |
| Type: |
Hand Hold |
| Plug And Feathers: |
Lengh 260mm-400mm Dia 32 -34mm |
| Impact Force: |
10 Kg |
| Air Consumption: |
1.53 L/ Min |
| Air Pressure: |
0.3 -0.6 MPa |
Product Description

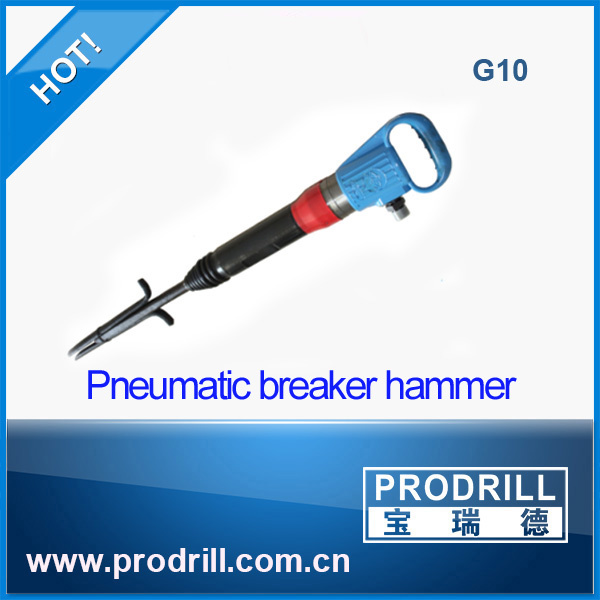

G10 Pneumatic Hammer
Pneumatic splitter G10, G10 pneumatic splitter air pick , Air pick , Pneumatic Air Pick Hammer
The pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.
Product Introduction:
Pneumatic pick is lighter, more flexible and convenient operation. It's suitable for operating all around of work, especially in narrow space, upper or climbing direction. It can stop working automatically when the solid object is broken.
Pneumatic pick hammer splitter Feature :
a: This kind of machine is designed for block secondary splitting or squaring specially,
b: It can be instead of the dynamite blasting or traditional manual splitting device completely.
c: It can be widely used for reinforced concrete breaking or removing, such as the construction
d: Building part demolition, bridge dismantling, demolishing underwater etc.
e: One complete machine including a pneumatic hammer and one set of forge plug and
| Model | G10 |
| Impacting Frequency | 16Hz |
| Impact Energy | 43J/min |
| Air Consumption | 26L/s Max |
| Cylinder Dia. | 38mm |
| Inside Dia. Of Sunction Tube | 16mm |
| Dia. Of Tail Pick | 24mm |
| Length of tail pick | 70mm |
| Total Weight | 10.6kg |
| Noise(Power level) | 118dB(A) Max |
