| Price: | US $ 50-100/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | G15 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Weight: | 15kg |
| Length: | 600mm |
| Working Pressure: | 0.5-0.63MPa |
| Impact Energy: | 55j |
| Impact Frequency: | ≥16Hz |
| Air Hose: | 16mm |
We offer a range of hand drills, leg drills and feed drills for drilling of small holes in narrow faces, secondary drilling in quarries, block cutting in dimensional stone industry and all types of light duty construction work.
Features of Pneumatic Breaker Pick Hammer :
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3. It accepts heavy duty bits
4. Reliable structure,easy and stable operation
5. Provide the ultimate combination of performance and economy.
6. Smart,and durable.
Specification for Pneumatic Breaker Pick Hammer :
Model No | G7 | G10 | G15 |
Weight | 7.2 (Kg) | 10Kg | 12.5Kg |
Length | 456 (mm) | 570 (mm) | 600 (mm) |
Cylinder dia | φ35 (mm) | φ38 (mm) | φ42 (mm) |
Rammar stroke | 120 (mm) | 155 (mm) | 160 (mm) |
Rammar weigh | 0.6 (Kg) | 0.9 (Kg) | (Kg) |
Working pressure | 0.4~0.5 (Mpa) | 0.4~0.5 (Mpa) | 0.5-0.63 (Mpa) |
Impact energy | ≥30 (J) | ≥43 (J) | ≥55 (J) |
Impact frequency | ≥21.6 (Hz) | ≥16 (Hz) | ≥16 (Hz) |
Air consumption | ≤20 (L/s) | ≤26 (L/s) | ≤27 (L/s) |
Air pipe inner dia | φ19 (mm) | φ16 (mm) | φ16 (mm) |

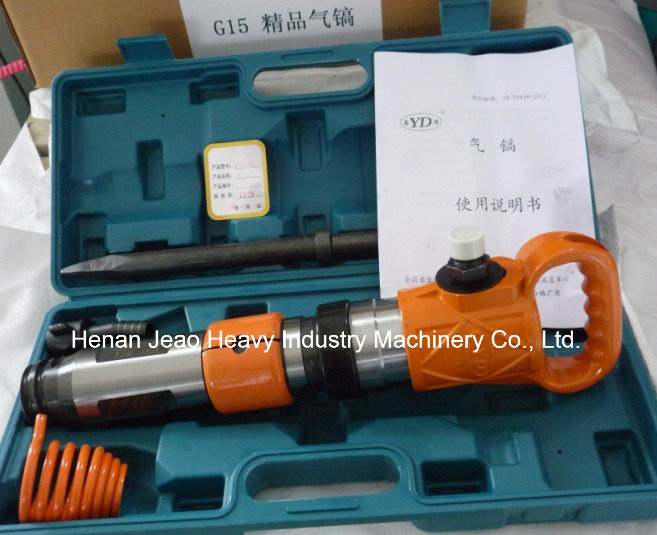

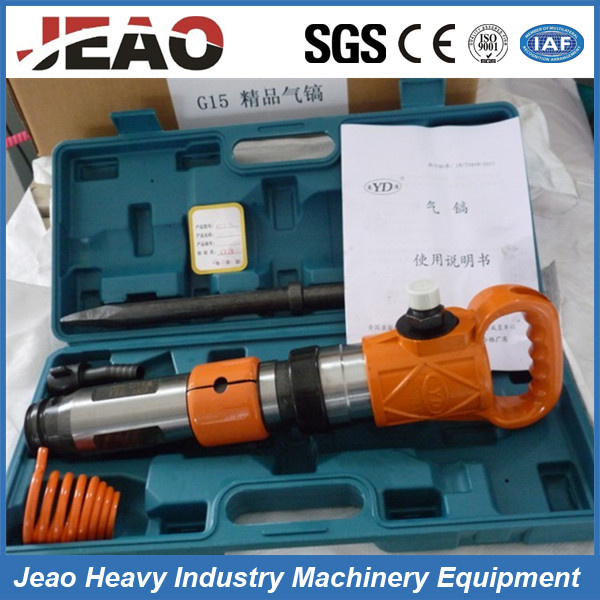

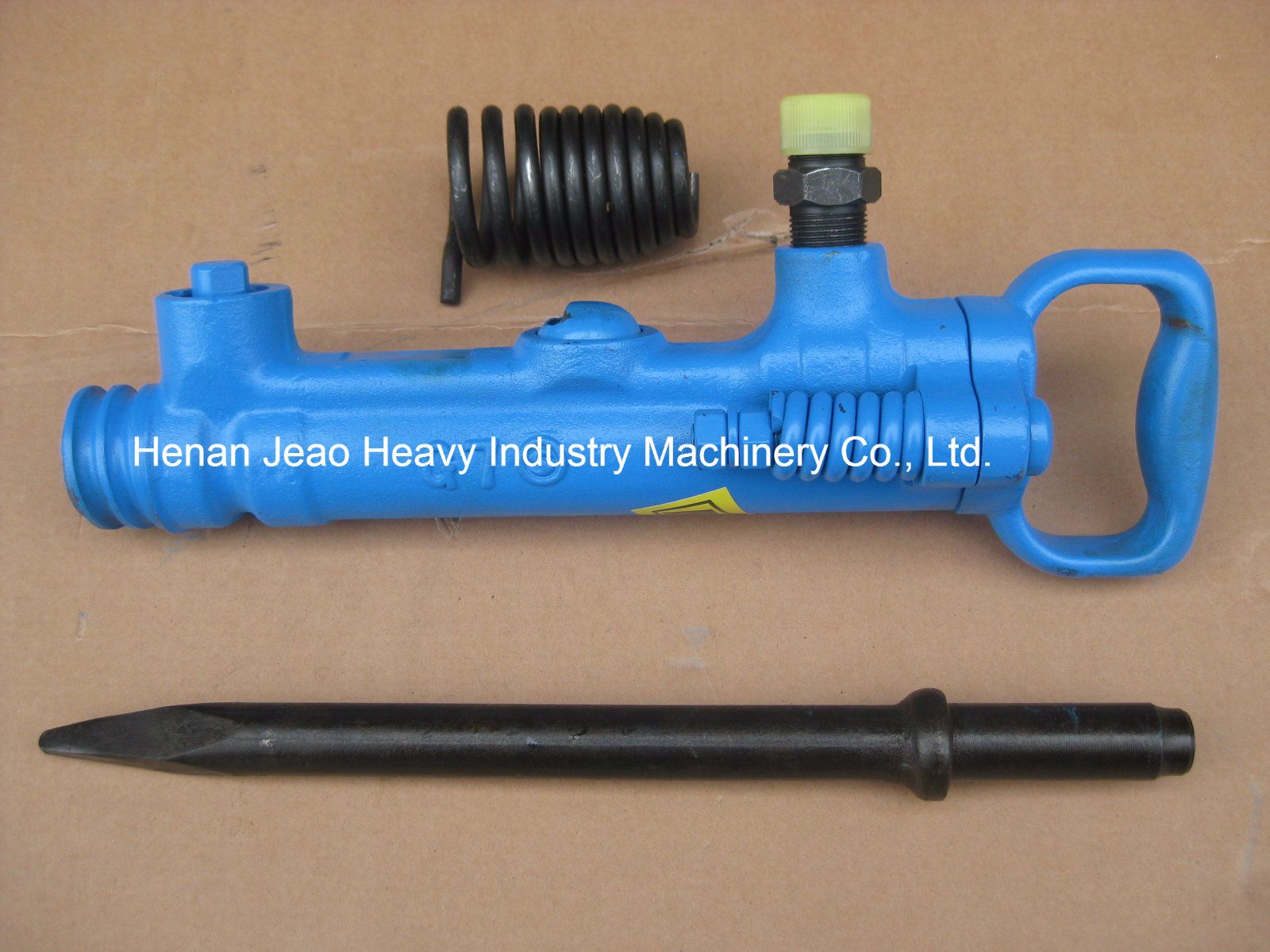

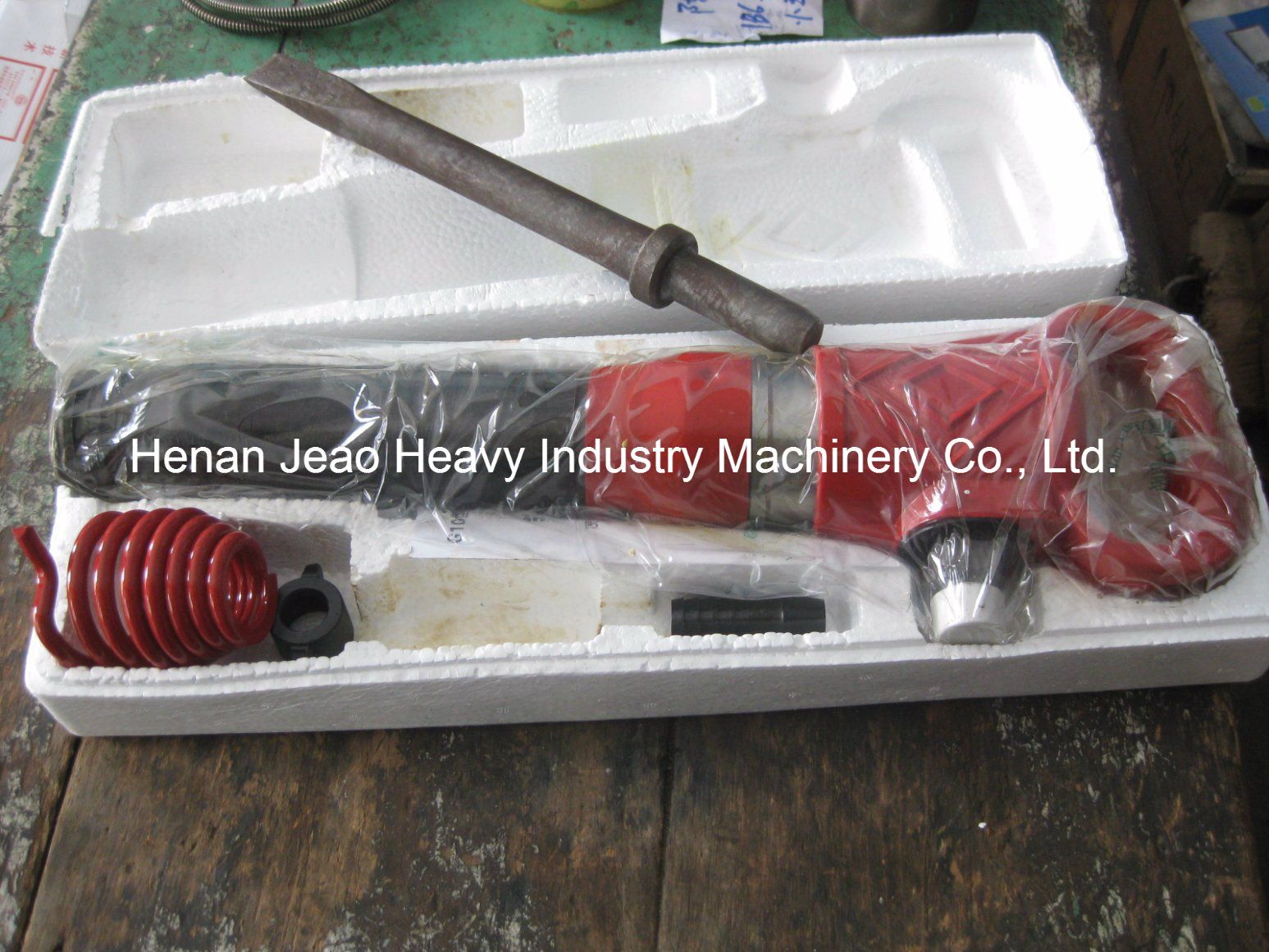

Picture for Pneumatic Breaker Pick Hammer
