Prod Model: |
G10 |
Weight: |
10kg |
Length: |
570mm |
Working Pressure: |
0.5-0.7MPa |
Impact Energy: |
≥43j |
Impact Frequency: |
≥16Hz |
Air Hose: |
16mm |
Pituitary Diameter: |
38mm |
Drill Shank: |
φ24X70 |
Air Consumption: |
≤26L/S |
Product Description

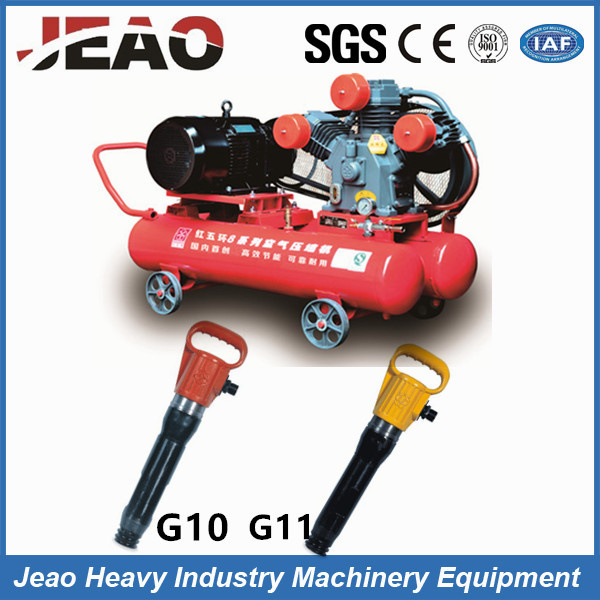

10KG Powerful Pick Jack Hammer /Hand Held Pneumatic Pick Jack Hammer
We offer a range of hand drills, leg drills and feed drills for drilling of small holes in narrow faces, secondary drilling in quarries, block cutting in dimensional stone industry and all types of light duty construction work.
Features of Portable Pneumatic Jack Hammer,Air Breaker G10:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3. It accepts heavy duty bits
4. Reliable structure,easy and stable operation
5. Provide the ultimate combination of performance and economy.
6. Smart,and durable.
Specification for Portable Pneumatic Pick Jack Hammer,Air Breaker G10 :
Model No | G7 | G10 | G15 |
Weight | 7.2 (Kg) | 10Kg | 12.5Kg |
Length | 456 (mm) | 570 (mm) | 600 (mm) |
Cylinder dia | φ35 (mm) | φ38 (mm) | φ42 (mm) |
Rammar stroke | 120 (mm) | 155 (mm) | 160 (mm) |
Rammar weigh | 0.6 (Kg) | 0.9 (Kg) | (Kg) |
Working pressure | 0.4~0.5 (Mpa) | 0.4~0.5 (Mpa) | 0.5-0.63 (Mpa) |
Impact energy | ≥30 (J) | ≥43 (J) | ≥55 (J) |
Impact frequency | ≥21.6 (Hz) | ≥16 (Hz) | ≥16 (Hz) |
Air consumption | ≤20 (L/s) | ≤26 (L/s) | ≤27 (L/s) |
Air pipe inner dia | φ19 (mm) | φ16 (mm) | φ16 (mm) |
