Product Description
Description :
1. Line Hardware fittings are used to connect insulators to the towers and conductors.The forged hardware is mainly made of heat treated steel.
2. This steel is esecially suitable for forging and its good performance ,especially ductility ,is due to the heat treatment process.
3. The short circuit capability of the line hardware fittings depends on the cross section used as well as the smothness of bolts and holes and on the mechaincal load apploed.One should keep in mind that at higher temperatures the strength of the hardware will be reduced.

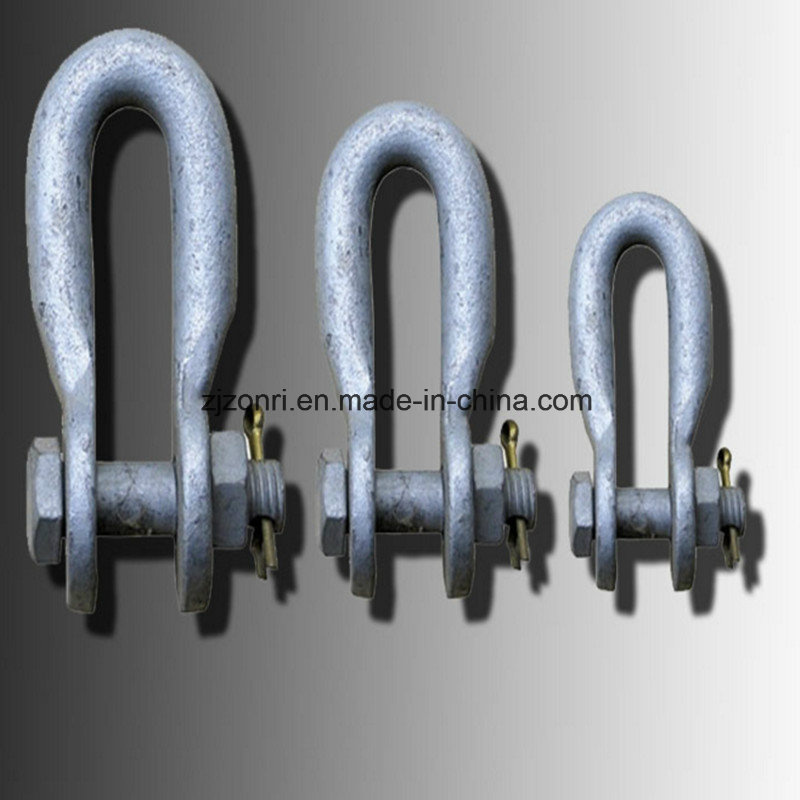

4. The ball eyes are used to attach ball and socket in insulators to other associated hardware.The use of of the ball oval eye and an anchor shackle is one of the most common distribution tower attachment combinations.
Materail :
1. Standards : The connecting bolts are grade 4.8 or 8.8
2. Split Pin are made of stainless steel or tinned copper
3. Dimensions of other connections are shown in the relevant catalogue section,but also others are available on request.
4. Body : Galvanized steel.
Spec.:

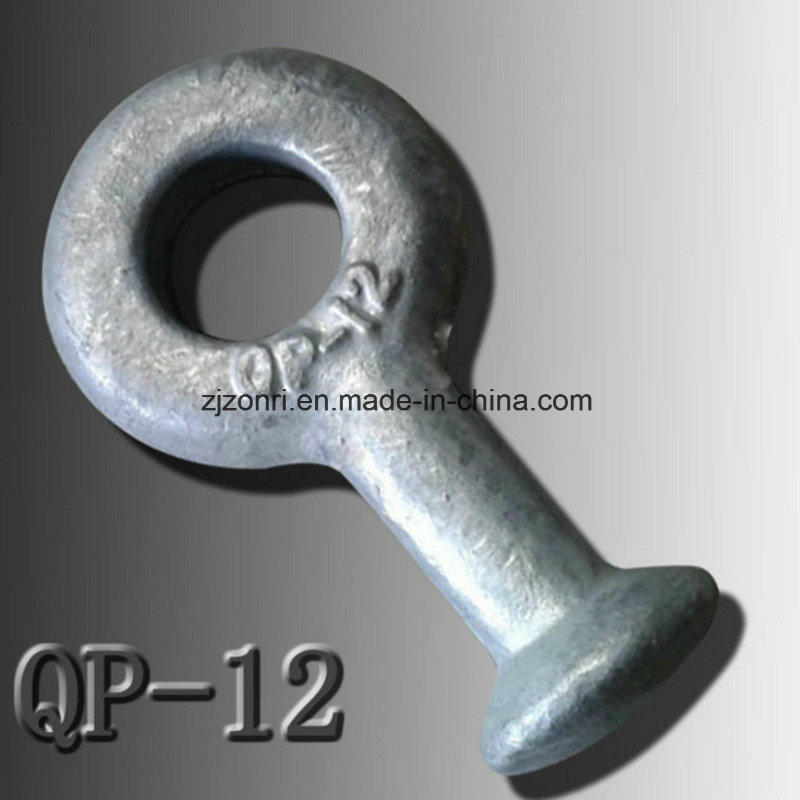

1. ball eyes :
catalogue
number | Insulator
type | Dimensions (mm) | Ultimate
strength (kN) |
| B | d | D | φ | H |
Q-7
QP-7
QP-10
QP-12
QP-16
QP-20
QP-21
QP-30 | XP-7, X-4.5
XP-7, X-4.5
XP-10
XP-12
XP-16
XP-20
XP-20
XP-30 | 16
16
16
16
20
24
20
28 | 17
17
17
17
21
25
21
25 | 33.3
33.3
33.3
33.3
41.0
49.0
41.0
49.0 | 22
18
20
24
26
30
30
39 | 50
50
50
50
60
80
80
80 | 70
70
100
120
160
200
210
300 |

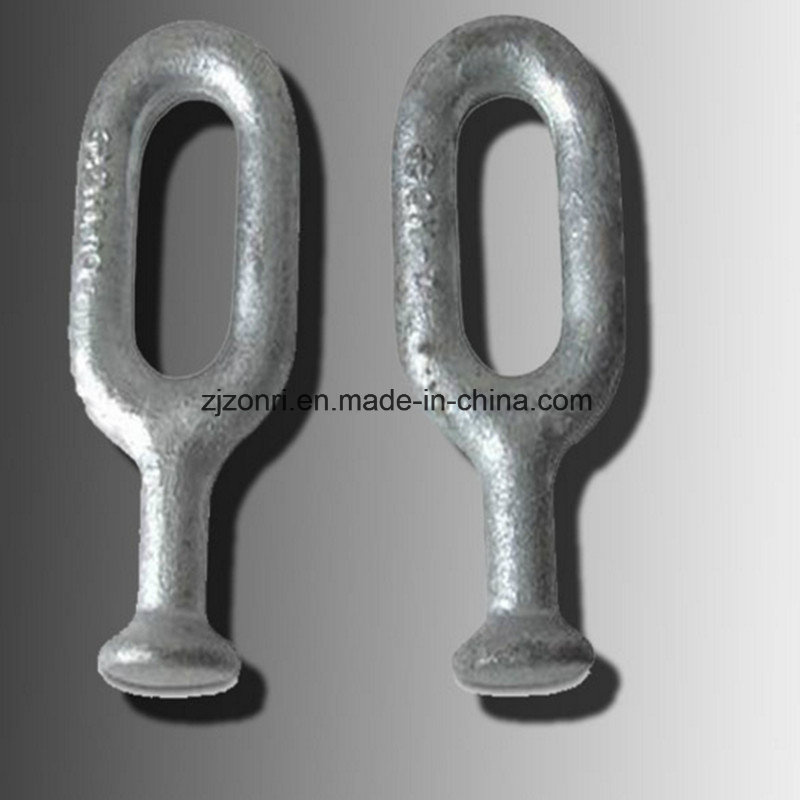

2.Oval ball eyes :
catalogue
number | Insulator
type | Dimensions (mm)
| Ultimate
strength (kN) |
| H | h | R | B | D |
QH-7
QH-10
QH-12
QH-16 | XP-7
XP-10
XP-12
XP-16 | 100
110
120
155 | 57
60
63
100 | 12
11
11
17 | 17
17
17
21 | 19
18
16
20 | 70
100
120
160 |
