| Prod Model: |
z-7 |
| Standard: |
GB |
| Material: |
Stainless Steel |
Product Description

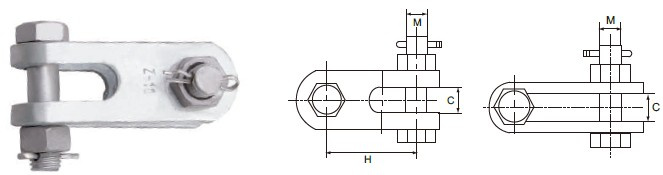

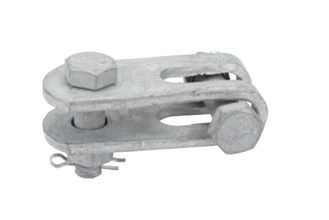

Z and ZS type Clvis Overhead Line Fittings for Stainless Steel
1.Z type
catalogue
number | Dimensions (mm)
| Ultimate
Strength(kN) |
| C | M | b | d | h |
ZS-7
ZS-10
ZS-16
ZS-30
ZS-65 | 18
20
26
38
20 | 16
18
26
34
22 | 16
18
24
36
16 | 20
20
26
39
20 | 60
70
90
150
65 | 70
100
160
300
70 |
Closed catch is stainless steel, others are hot-dip galvanized steel.
2.ZS type
catalogue
number | Dimensions (mm)
| Ultimate
Strength (kN) |
| C | M | H |
Z-7
Z-10
Z-12
Z-16
Z-21
Z-25 | 18
20
24
26
30
33 | 16
18
22
24
27
30 | 80
80
100
100
120
120 | 70
100
120
160
210
250 |
Closed catch is stainless steel, others are hot-dip galvanized steel.
