| Prod Model: |
G210 |
| Brand Name: |
Odl |
| Others Surface Treatment: |
Galvanized, Hot Galvanis |
| Shackle Material: |
45# |
| Package: |
According to The Customer |
| Size: |
All Kinds of Size |
| Safe Factor: |
4:1/6:1 |
| Process: |
Forged |
| Delivery Time: |
Within 15-25days |
| HS Code: |
7326909000 |
| Certification: |
SGS, CE, ISO |
| Material: |
Alloy Steel |
Product Description

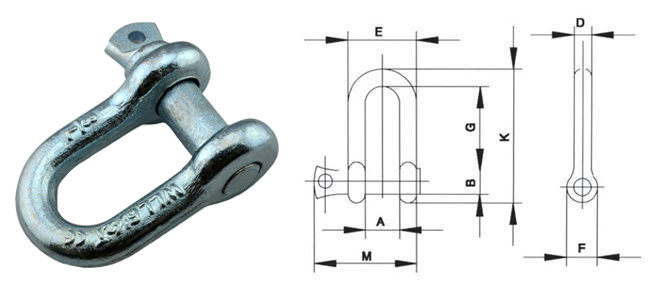

Name: GALVANIZED U.S. FED. SPEC. SCREW PIN DEE SHACKLE
Material: 45#
Surface: Galvanized
Size: All kinds of size
Safe Factor: 4:1/6:1
Brand Name: ODL
| Size(in.) | WLL(t) | A(mm) | B(mm) | D(mm) | E(mm) | F (mm) | G (mm) | K (mm) | M (mm) | Weight(Kg/pc) |
| 1/4 | 0.5 | 12 | 7.9 | 6.4 | 23.9 | 15.5 | 22.4 | 40.4 | 35.1 | 0.05 |
| 5/16 | 0.75 | 13.5 | 9.7 | 29.5 | 19.1 | 26.2 | 48.5 | 48.5 | 42.2 | 0.08 |
| 3/8 | 1 | 16.8 | 11.2 | 9.7 | 35.8 | 23.1 | 31.8 | 58.4 | 51.6 | 0.13 |
| 7/16 | 1.5 | 19.1 | 12.7 | 11.2 | 41.4 | 26.9 | 36.6 | 67.6 | 60.5 | 0.2 |
| 1/2 | 2 | 20.6 | 16 | 12.7 | 45 | 30.2 | 41.4 | 77 | 68.3 | 0.27 |
| 5/8 | 3.25 | 27 | 19 | 16 | 58.7 | 38.1 | 50.8 | 95.3 | 84.8 | 0.57 |
| 3/4 | 4.75 | 31.8 | 22.4 | 19.1 | 69.9 | 46 | 60.5 | 115.1 | 100.8 | 1.19 |
| 7/8 | 6.5 | 36.6 | 25.4 | 22.4 | 81 | 53.1 | 71.4 | 135.4 | 114.3 | 1.43 |
| 1 | 8.5 | 43 | 28.7 | 25.4 | 93.7 | 60.5 | 81 | 150.9 | 128.8 | 2.15 |
| 1 1/8 | 9.5 | 46 | 31.8 | 28.7 | 103.1 | 68.3 | 90.9 | 172.2 | 142 | 3.06 |
| 1 1/4 | 12 | 51.6 | 35.1 | 31.8 | 115.1 | 76.2 | 100.1 | 190.5 | 156.5 | 4.11 |
| 1 3/8 | 13.5 | 57.2 | 38.1 | 35.1 | 127 | 94.1 | 111.3 | 210.3 | 173.7 | 5.28 |
| 1 1/2 | 17 | 60.5 | 41.4 | 38.1 | 136.6 | 91.9 | 122.2 | 230.1 | 186.7 | 7.23 |
| 1 3/4 | 25 | 73.2 | 50.8 | 44.5 | 162.1 | 106.4 | 146.1 | 278.6 | 230.6 | 12.13 |
| 2 | 35 | 82.6 | 57.2 | 50.8 | 184 | 122.2 | 171.5 | 311.9 | 262.6 | 19.19 |
| 2 1/2 | 55 | 105 | 69.9 | 66.5 | 238.3 | 144.5 | 203.2 | 376.9 | 330.2 | 32.55 |
About Us:OUDINGLONG is located in the beautiful coastal port city ---Qingdao. OUDINGLONG is a manufacturer of all kinds of riggings with excellent geographical location, exquisite technology, professional skills, enthusiasm for the service we show the world its eternal vitality. Our main products are all kinds of riggings (Shackle, Turnbuckle , Hook, Wire rope clips ,Chain, Stainless steel riggings and Thimbles. ) With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in shipping and other industries. Our products are exported to Southeast Asia, the Middle East Africa, the United States, Australia, and most countries of Europe.
Choose us, Trust us, is your best choose! !
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
