| Prod Model: |
W324 |
| Max Width: |
3m |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Mesh Size: |
2 Inch |
| Surface Treatment: |
Galvanized |
| Weave Technique: |
Plain Weave |
| Application: |
Sieving Mesh |
| Color: |
White |
| Type: |
Welded Mesh |
| Certification: |
ISO9001 |
| Condition: |
New |
Product Description
Welded Wire Mesh

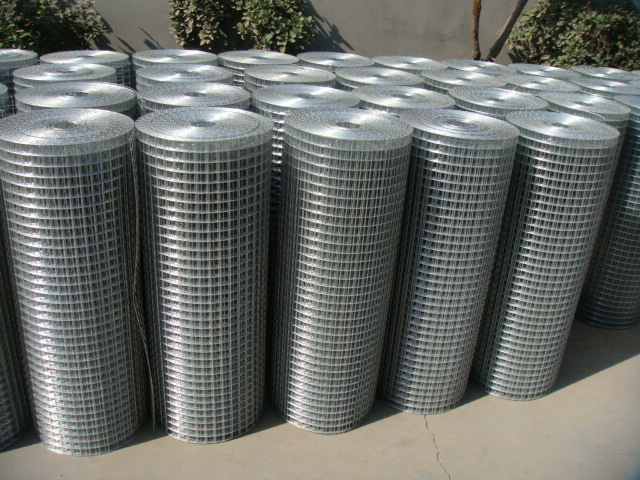

Stainless SWelded Wire Mesh it is a grid that consists perpendicular wire strands, which are welded at each intersection, the joining of the wires at the intersection is achieved by electric resistance welding. According to the welded mesh and wire diameter, it can made into stainless steel welded mesh panels and welded mesh rolls.
Features and Benefits of Stainless Steel Welded Mesh:

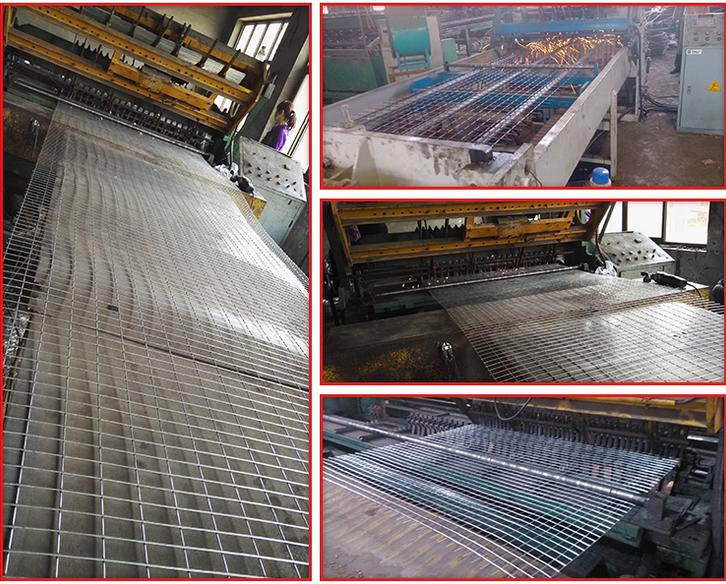

In comparison with the galvanized welded wire mesh, the stainless steel welded mesh offers better corrosion resistance performance. However, its price is a little higher. In addition, some of its other prominent advantages are mainly reflected as follows: firm welding spot, flat and bright surface, high tensile strength, good integrity, firm and durable structure, and rust resistance, etc. Moreover, the stainless steel welded mesh is processed by high-precision automatic equipment. Thus, even if the welded mesh suffers partial pressure or cutting, it will still not come loose.
Specification of stainless steel welded mesh
| Specification List of Welded Mesh Panel |
| Opining | Wire Diameter |
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
Application of Stainless Steel Welded Mesh:

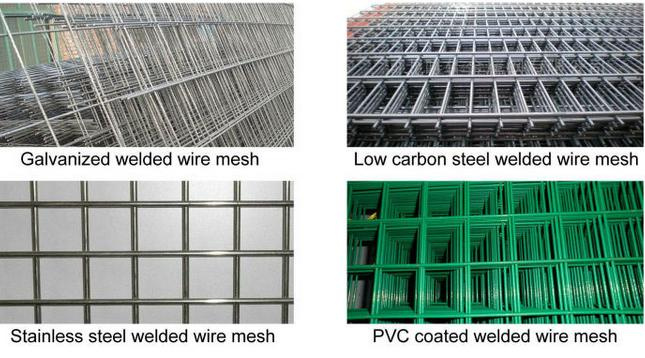

Characteristic compared with PVC or Galvanized welded wire mesh:
- Stainless steel welded wire mesh has flat even surface and strong structure, its high intensity makes it has long service life, even up to several decades.
- The wire itself has excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistance, so it can meet your demands of long exposure in corrosion environment.
- Compared with other material welded wire mesh or PVC-coated welded iron wire mesh, it is non-toxic, so it can used for food.
- By its very nature stainless steel wire need no additional finish, such as galvanizing or PVC to protect it, so it can compensate for its seemingly higher cost.
- Due to this wire mesh panels has beautiful and bright luster, it looks cleanliness and hygiene, furthermore, this kind of product is easy to clean.
- Welded wire mesh with strong integration, strong welded points, well-proportioned meshes, so it has a good strength to hold heavy weight.

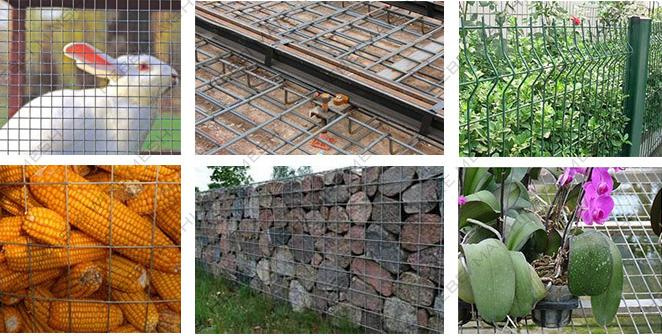

Owing to the stainless steel material has unique advantage, the stainless steel welded wire mesh has a wide application, for example:
- It is traditionally utilized as floor heating, ceiling tiles, in buildings and construction; as the cover to protect machines and equipment in industry.
- In aquaculture, it used as animal enclosure, like restrain goat, horse, cow, raise chickens ,ducks, geese, rabbits, pigeons, and so on.
- In agriculture, it used for the tree, lawn, ranch in various size and shapes, for greenhouse benches and corn storage.
- In transportation, it used as highway fence, it also served as the road green belt protection net.
- In production, it used as wire mesh decking in logistics warehouse, display stand for goods in supermarket.
- In our daily life, it used as window resection fender, food baskets, shopping trolleys, porch or channel fence.
- For the birds, the stainless steel welded wire mesh is the only way to prevent zinc poisoning in birds, its strong structure and heavy wire also makes it become the best choice of zoo fence.

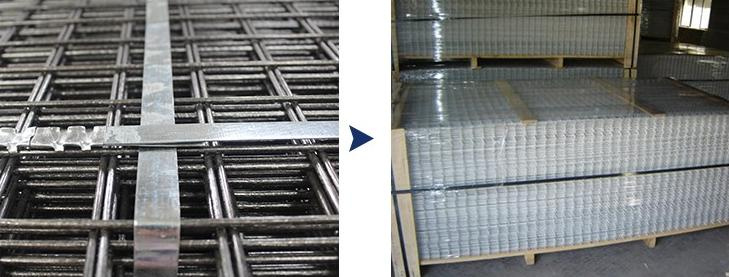

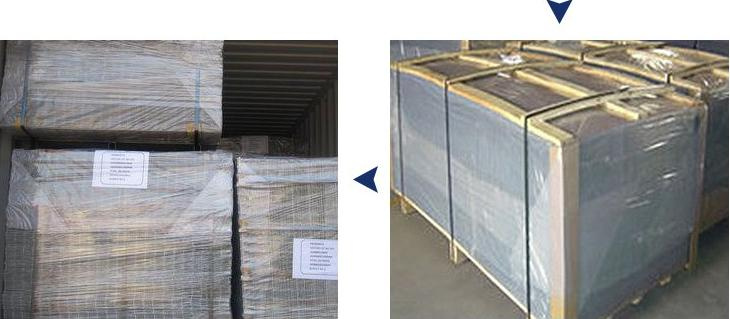

Packing of stainless steel welded mesh panel
Looking for ideal Stainless Steel Welded Wire Mesh Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Welded Wire Mesh Panel are quality guaranteed. We are China Origin Factory of Wire Mesh Panel. If you have any question, please feel free to contact us.
Anping County Huaxi Wire Mesh Co., Ltd. Is a big wire mesh manufacturer located in Anping of Hebei Province, the famous Wire Mesh Land of China. Huaxi is specialized in wire drawing, galvanizing and wire mesh weaving. With over 100 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
Huaxi mainly produces Stainless Steel Wire Mesh, Metal Wire, Binding Wire, Welded Wire Mesh, Crimped Wire Mesh, PVC Coated Wire Mesh, PVC Sprayed Wire Mesh, Barbed Wire, Chain Link Fence, Wire Conveyor Belt, Circle Wire, Mesh Fencing as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual benefit.
