| Prod Model: |
HP-G02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Popular Size: |
1m, 2m, 3m, 0.5m |
| Wire Diameter: |
3.0 mm |
| Cell: |
80*100mm |
| Galfan Coating: |
95%Zn + 5%Al |
| Material: |
Galvanized Iron Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Square |
| Usage: |
Military Applications |
| Technics: |
Welded |
| Surface Treatment: |
Galvanized |
| Size: |
2m x 1m x 1m |
| Aperture: |
50*50 |
Product Description
We are a professional manufacturer of gabion, gabion basket, gabion and mattress, gabion wall, gabion mesh, gabion cage. Gabions are filled with stones at the project site to from flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects.

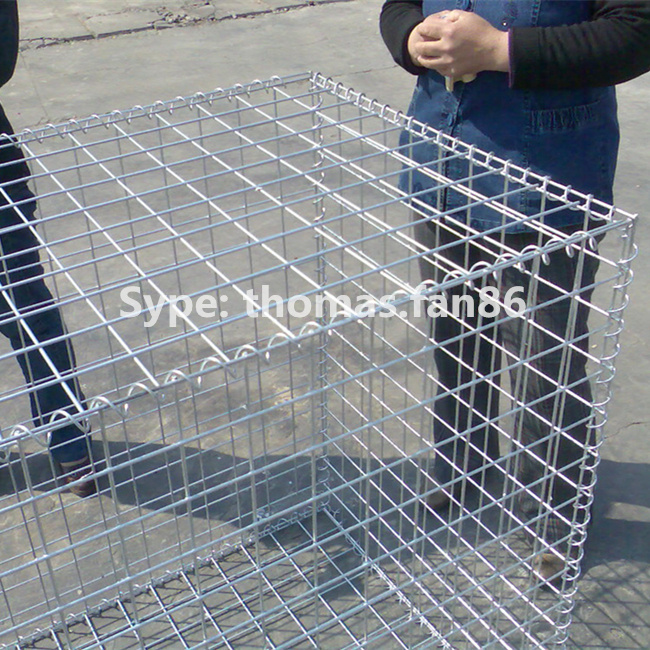

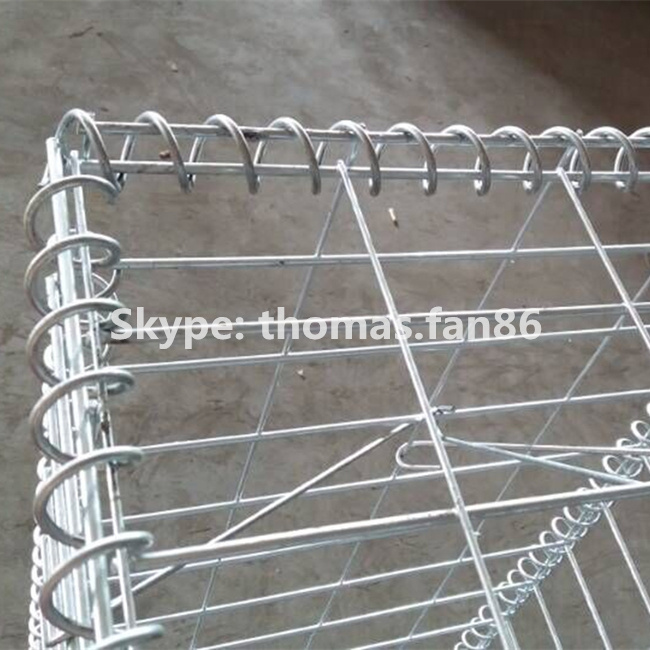

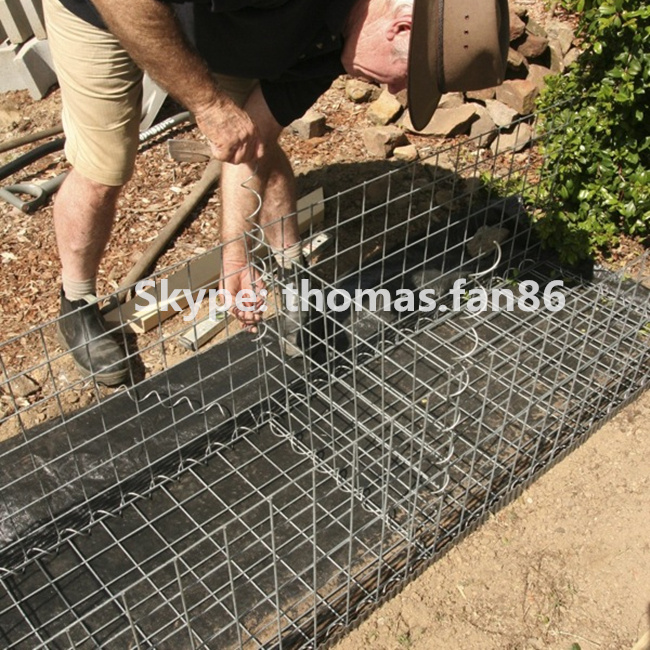

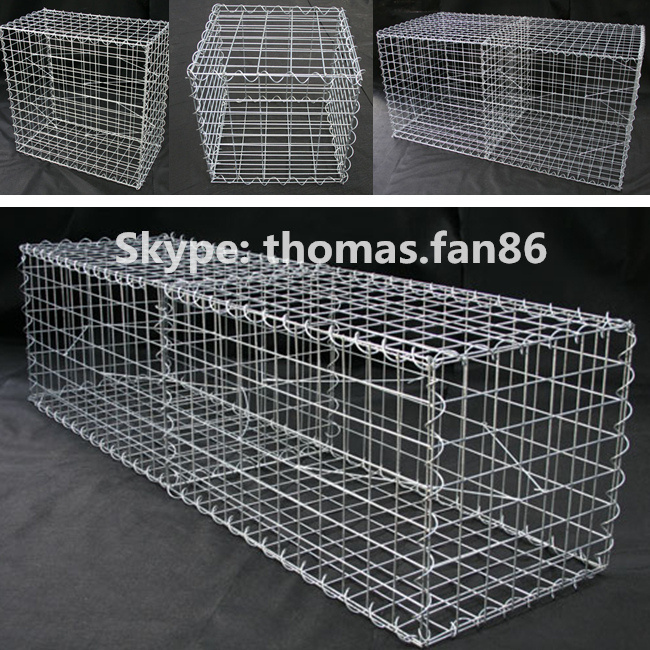

Welded Gabion is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.The wire is also available with a tough, durable pvc coating. Welded Gabion could be used for prefilled on site construction which is quick and easy. They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.
Specification:| L x W x D (cm) | Diaphragms | Capacity (m3) | Mesh size (mm) | Standard wire dia. (mm) |
| 100x30x30 | 0 | 0.09 | 50 *50
75*75
100*50 200 * 50 |
Hot dipped galvanised zinc coated or Galfan wire 2.20, 2.50, 2.70, 3.00, 4.00, 5.00 |
| 100x50x30 | 0 | 0.15 |
| 100x100x50 | 0 | 0.5 |
| 100x100x100 | 0 | 1 |
| 150x100x50 | 1 | 0.75 |
| 150x100x100 | 1 | 1.5 |
| 200x100x50 | 1 | 1 |
| 200x100x100 | 1 | 2 |
| 300x100x50 | 2 | 1.5 |
| 300x100x100 | 2 | 3 |
| 400x100x50 | 3 | 2 |
(Other specifications can be made as request.) 2. Feature:Easy to installHigh zinc coating to assure of anti-rust and anit-corrosiveEconomicHigh security 3. Use:Retaining WallsTemporary Bridge AbutmentsNoise BarriersBeach ReinforcementRiver Bank RevetmentLandscaped BoundariesStone FlowerpotCourtyard Security Wall 4. Connection with Spiral or C type clamps.
