| Prod Model: |
DNFX-1800 |
| Max Cutting Diamension: |
Φ300-600mm |
| Max Lifting Travel Of Cutting Frame: |
1000mm |
| Dimension Of Worktable: |
3500*1800mm |
| Main Motor: |
15kw |
| Gross Motor: |
20kw |
| Outline Dimension: |
6000*3600*3300mm |
| Water Consumption: |
6m3/H |
| Gross Weight: |
7000kg |
| Use For: |
Cutting Profiling Lines,Column,Column Slab |
| Sagment Qty: |
Two |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Profiling Cutting Machine |
| Control: |
PLC |
Product Description

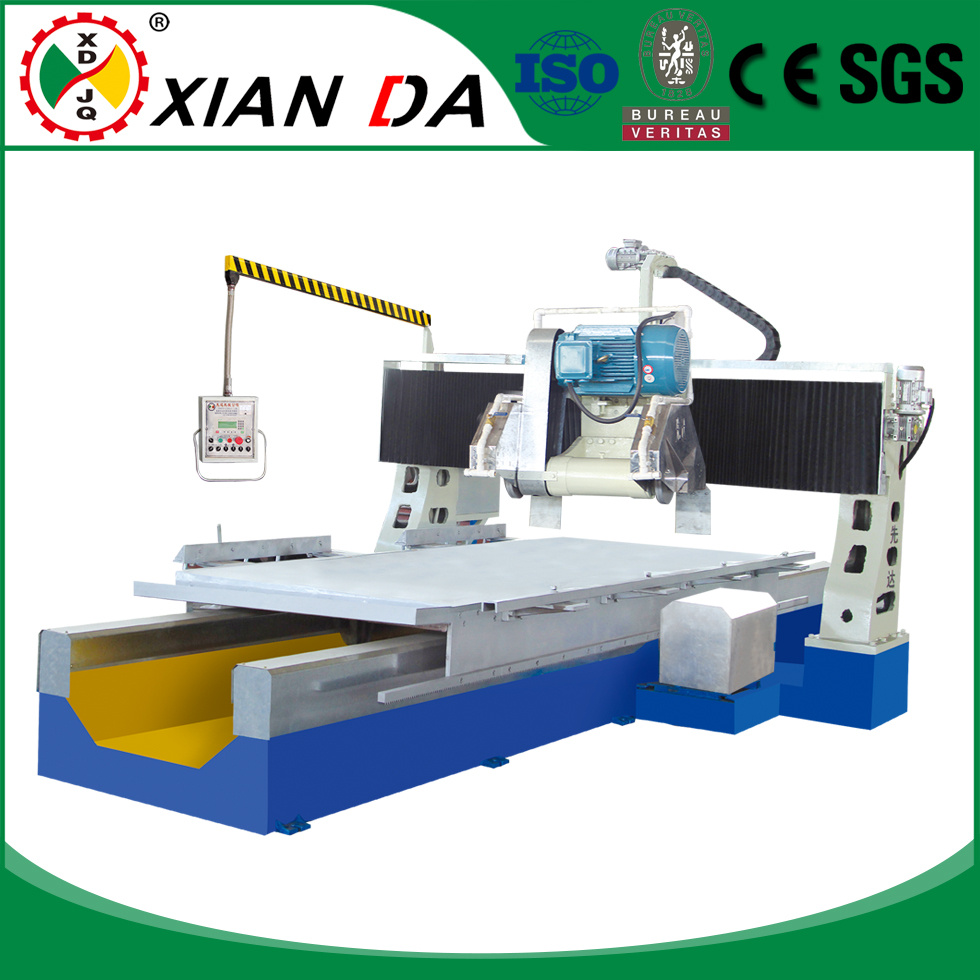

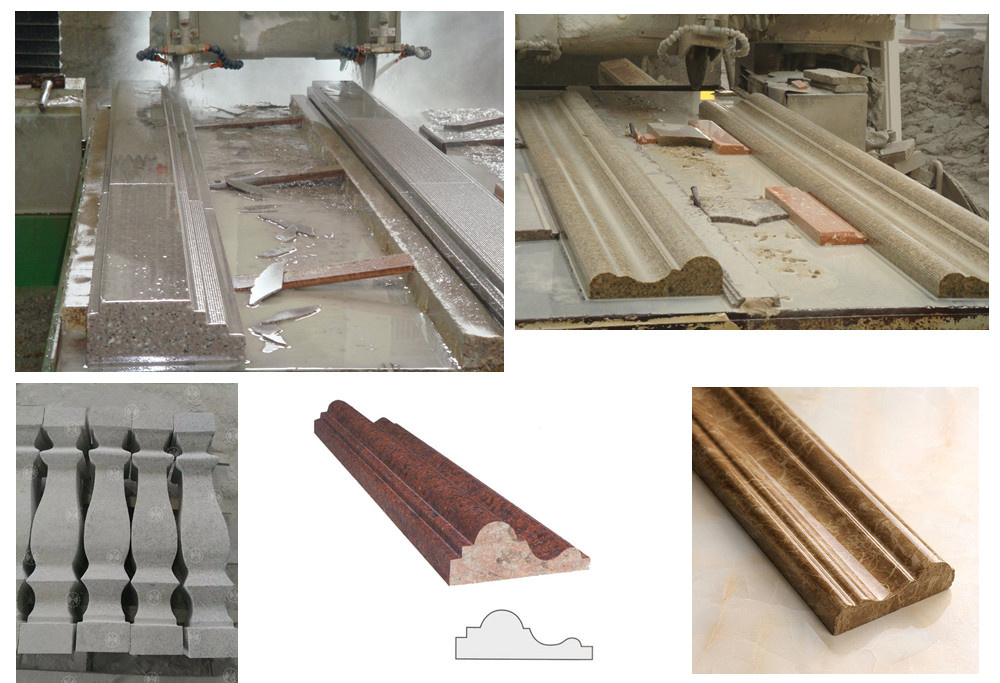

Product DescriptionSDNFX-1800 gantry lifting type stone profile cutting machine adopts PLC control, cutting with double saw blades, which is specially used for cutting profiling lines, granite&marble blocks,roman column, big column slab and so on for the heterotype stones.
| Parameter | Unit | SDNFX-1800 | SCNFX-1800 |
| Blade diameter | mm | 300-600 | 300-600 |
| Max lifting travel of cutting frame | mm | 1000 | 1000 |
| Worktable dimension | mm | 3500*1800 | 3500*1800 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 20 | 20 |
| Outline dimension | mm | 6000*3600*3300 | 6000*3600*3300 |
| Gross weight | kg | 7000 | 7000 |
| Water consumption | m3/h | 6 | 6 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.Exhibition
Our Service
We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Does it can accept OEM?
A: Yes,and some of the part can change as customer require.
Q: Are you Manufacture Factory?
A: Yes,that we are the stone machinery factory for over 30 years.

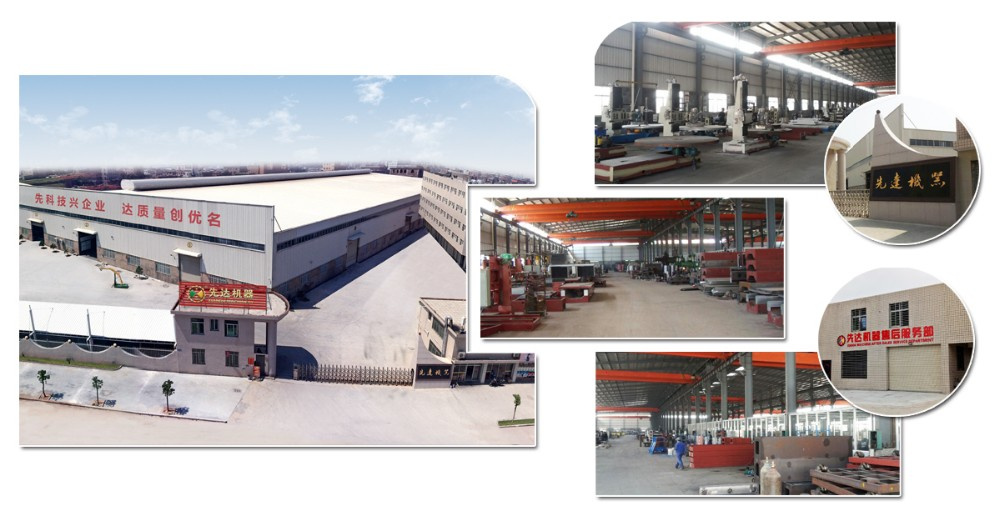

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.
With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.
Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".
Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
