| Prod Model: |
BL-BL-J2D/4D/2E/4E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
305mm/350mm |
| Max. Swing Dia. Over Cross Slide: |
173mm/215mm |
| Max. Swing Dia. In Gap: |
440mm/485mm |
| Guideway Width: |
182mm |
| Center Distance: |
940mm |
| Spindle Bore: |
38mm |
| Main Motor Power: |
1.1kw(1.5HP) |
| Coolant Pump Power: |
0.04kw(0.055HP) |
| Net/Gross Weight: |
390/440kg |
| Spindle Speed Class: |
9 Class/ Stepless |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
One |
Product Description

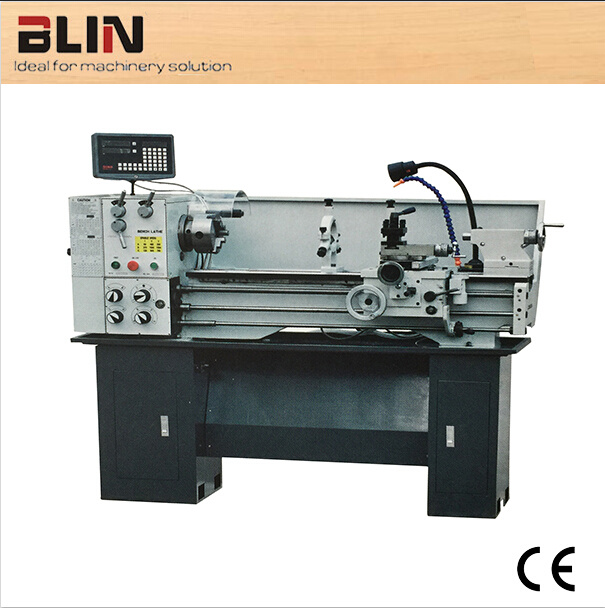

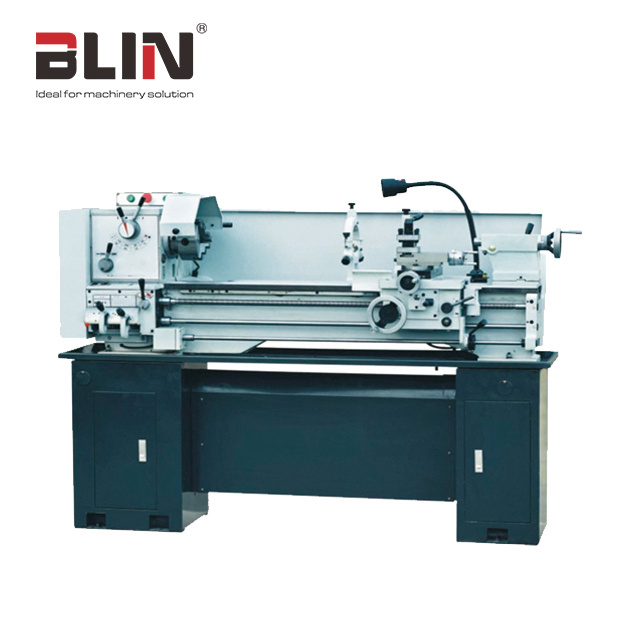

Gap Bed Lathe(BL-BL-J2D/4D/2E/4E)(Variable Speed)
Feature:
| High class cast iron |
| V shape guideway, ultrasonic harden and precise ground |
| Gap bed |
| Cross and longitudinal interlocking feed, with enough safety |
| ASA D4 cam-lock spindle nose |
| Various thread cutting |
Standard Accessories:
Tool post wrench
Double-head wrench
Allen wrench
Screwer
Dead Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Install on machine)
Follow rest(Install on machine)
Manual 3-jaw chuck(Install on machine)
steel board stand
4-jaw chuck
Optional Accessories:
Drilling Chuck
Arbor
Driling Stock
Live Center
Face Plate
Working Lamp(common)
Coolant System
Foot Brake
Ball screw guard
Work lamp(aluminium cover)
Taper turning Attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
2 speed motor system
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand
Specification:
| Item | Unit | BL-BL-J2D/4D | BL-BL-J2E/4E |
| Max. swing dia. over bed | mm | Φ305/Φ350 |
| Max. swing dia. over slide | mm | Φ173/Φ215 |
| Max. swing dia. over gap | mm | Φ440/Φ485 |
| Guideway width | mm | 182 |
| Center distance | mm | 940 |
| Spindle taper | / | MT5# |
| Spindle bore | mm | Φ38 |
| Spindle speed class | / | 9 class | Stepless |
| Spindle speed range | rpm | 64~1500 | low:70~520;high:520~1700 |
| Spindle nose | / | D1-4 |
| Metric thread | / | 26kinds (0.4~7 mm) |
| Inch thread | / | 34kinds(4~56TPI) |
| Range of longitudinal feeds | / | 0.052~1.392mm/r(0.002''~0.0548'') |
| Range of cross feeds | / | 0.014~0.38mm/r(0.00055''~0.015'') |
| Lead screw O.D. | mm | Φ22mm(7/8'') |
| Lead screw pitch | mm | 3mm or 8TPI |
| Max. travel of saddle | mm | 810mm |
| Max. travel of cross | mm | 150mm |
| Max. travel of tool post | mm | 85mm |
| Tailstock quill travel | mm | 95mm |
| Tailstock quill dia. | mm | Φ32mm |
| Tailstock quill | / | MT3# |
| Spindle motor power | kw | 1.1kw(1.5HP) |
| Coolant pump power | kw | 0.04kw(0.055HP) |
| Packing size of main machine | mm | 1780×760×760 |
| Packing size of Left foot stand | mm | 440×410×700 |
| Packing size of right foot stand | mm | 370×410×700 |
| Main machine G.W./N.W. | kg | 440/390 |
| Foot stand G.W./N.W. | kg | 75/70 |
| Loading amount(20GP container) | pcs | 24 |

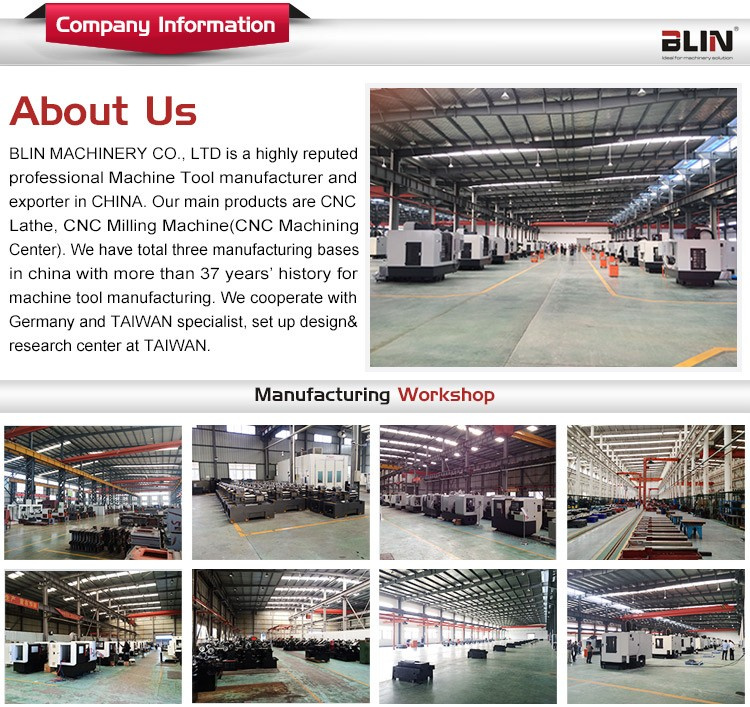

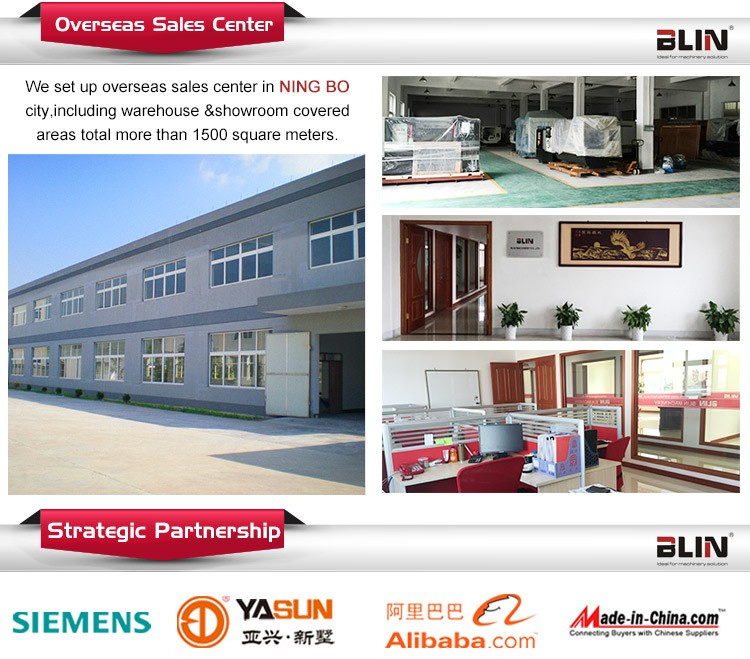

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.
Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
We look forward to hearing from you at any time!
