| Prod Model: |
BL-BL-J1B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
305mm |
| Max. Swing Dia. Over Cross Slide: |
173mm |
| Max. Swing Dia. In Gap: |
440mm |
| Guideway Width: |
182mm |
| Max. Machining Length: |
530mm |
| Spindle Bore: |
36mm |
| Main Motor Power: |
1.1(1.5HP)Kw |
| Coolant Pump Motor Power: |
0.04(0.055HP)Kw |
| Net/Gross Weight: |
365/415kg |
| Spindle Speed Class: |
12 Class |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
One |
Product Description

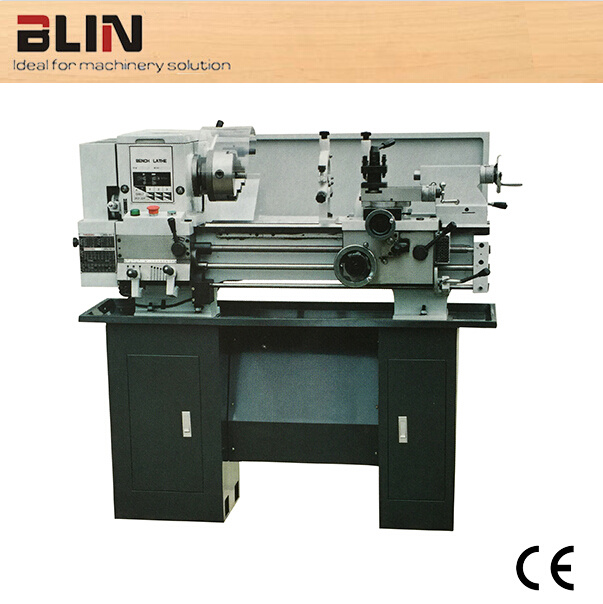

Gap Bed Lathe(BL-BL-J1B) (Belt-drive)
Feature:
High class cast iron
V shape guideway, ultrasonic harden and precise ground
Gap bed
Cross and longitudinal interlocking feed, with enough safety
Inching switch for test running
Metric/Imperial threading available
Belt-driven headstock, low noise and easy operation
Specification:
| Item | BL-BL-J1B |
| Max. Swing Dia. Over bed | 305mm |
| Max. Swing Dia. Over cross slide | 173mm |
| Max. Swing Dia. In gap | 440mm |
| Guideway width | 182mm |
| Max. Machining length | 530mm |
| Spindle bore taper | MT5# |
| Spindle bore | 36mm |
| Step of spindle speed | 12kinds |
| Range of spindle speed | 50~1200rpm |
| Metric thread | 15kinds(0.25~7.5mm) |
| Inch thread | 40kinds(4~112TPI) |
| Range of feed amount | 0.12~0.42mm/r |
| Dia. Of lead screw | 22mm |
| Pitch of lead screw | 3mm or 8TPI |
| Max. travel of saddle | 510mm |
| Max. travel of cross | 150mm |
| Max. travel of tool post | 90mm |
| Max. travel of tailstock sleeve | 100mm |
| Tailstock sleeve Dia. | 32mm |
| Tailstock sleeve taper | MT3# |
| Main motor power | 1.1(1.5HP)kw |
| Coolant pump power | 0.04(0.055HP)kw |
| Overall dimension | 1420×750×760mm |
| Left foot stand(L*W*H) | 400×370×700mm |
| Right foot stand(L*W*H) | 300×370×700mm |
| Net/Gross weight | 365/415Kg |
| Foot stands(Net/Gross weight) | 60/65Kg |
Standard Accessories:
Double head wrench
Allen wrench
Screwer
Dead center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest
Follow rest
Manual 3-jaw chuck
Optional Accessories:
Drill chuck
Arbor
Live center
Face plate
Foot brake
Ball screw guard
Work lamp(common)
Work lamp(aluminium cover)
Coolant system
Taper turning attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand
