| Prod Model: |
BL-BL-J3A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
330mm |
| Max. Swing Dia. Over Cross Slide: |
195mm |
| Max. Swing Dia. In Gap: |
465mm |
| Guideway Width: |
182mm |
| Max. Machining Length: |
530mm |
| Spindle Bore: |
38mm |
| Main Motor Power: |
1.1kw |
| Coolant Pump Power: |
0.04kw |
| Net/Gross Weight: |
382/432kg |
| Foot Stands(Net/Gross Weight): |
60/65kg |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
One |
Product Description
Gap Bed Lathe (BL-BL-J3A)(Gear-driven)
Feature:
Engineered from High Grade Castings
'V' Way Bedways luduction hardened and Ground
Gap bed
Cross and longitudinal interlocking feed, with enough safety
Inching switch for tesr running
Metric/Imperial threading available
Precise gear-driven headstock
Standard Accessories:
Tool post wrench
Double-end wrench
Allen wrench
Screw driver
Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Already set in)
Follow rest(Already set in)
3-jaw chuck(Already set in)
Optional Accessories:
Drilling chuck
Drilling chuck
Live center
Face plate
Foot brake
Lead screw guard
Working lamp(Common)
Working lamp(Aluminium rind)
Coolant system
Taper attachment
2 speed motor system
| Item | BL-BL-J3A |
| | Norton lever |
| Max. Swing Dia. Over bed | 330mm |
| Max. Swing Dia. Over cross slide | 195mm |
| Max. Swing Dia. In gap | 465mm |
| Guideway width | 182mm |
| Max. Machining length | 530mm |
| Spindle bore taper | MT5# |
| Spindle bore | 38mm |
| Step of spindle speed | 9kinds |
| Range of spindle speed | 64~1500rpm |
| Metric thread | 15kinds(0.25~7.5mm) |
| Inch thread | 40kinds(4~112TPI) |
| Range of feed amount | 0.12~0.42mm |
| Dia. Of lead screw | 22mm |
| Pitch of lead screw | 3mm or 8TPI |
| Max. travel of saddle | 510mm |
| Max. travel of cross | 150mm |
| Max. travel of tool post | 90mm |
| Max. travel of tailstock sleeve | 100mm |
| Tailstock sleeve Dia. | 32mm |
| Tailstock sleeve taper | MT3 |
| Main motor power | 1.1kw(1.5HP) |
| Coolant pump power | 0.04kw(0.055HP) |
| Overall dimension | 1420×750×760mm |
| Left foot stand(L*W*H) | 400×370×700mm |
| Right foot stand(L*W*H) | 300×370×700mm |
| Net/Gross weight | 382/432kg |
| Foot stands(Net/Gross weight) | 60/65Kg |

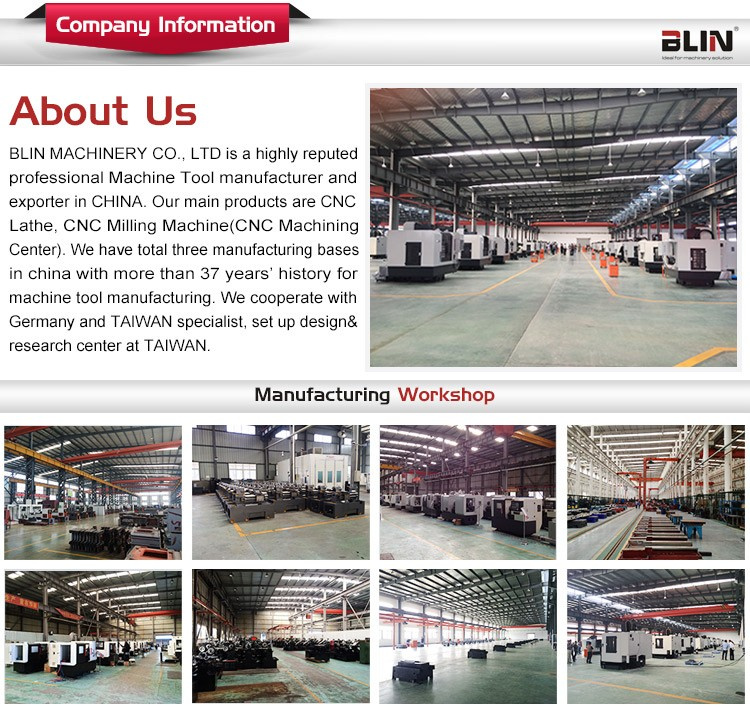

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

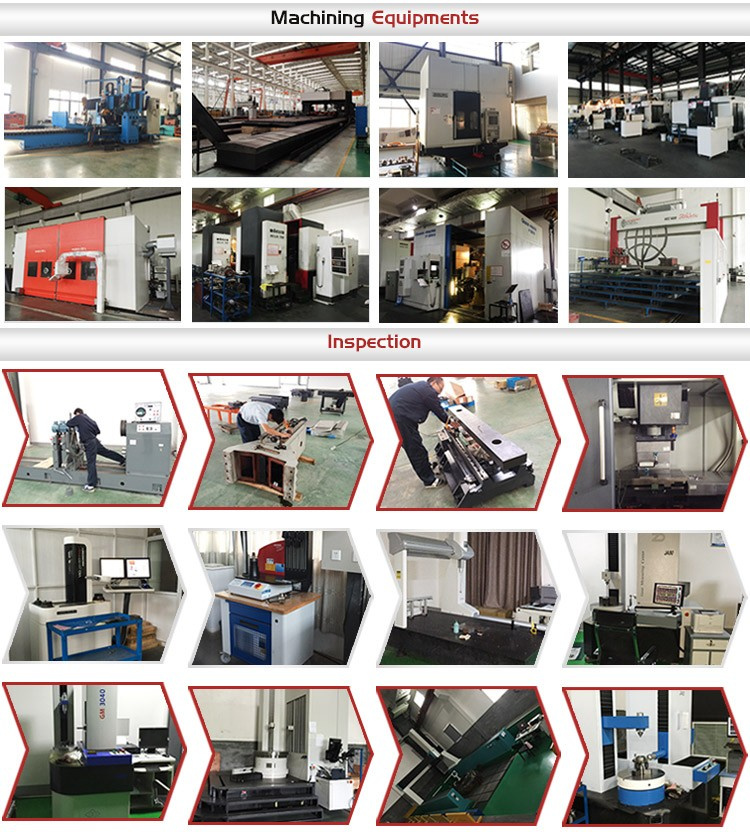

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
We look forward to hearing from you at any time!
