| Prod Model: |
BL-BL-J5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
330mm |
| Max. Swing Dia. Over Cross Slide: |
195mm |
| Max. Swing Dia. In Gap: |
476mm |
| Guideway Width: |
186mm |
| Max. Machining Length: |
1000mm |
| Spindle Bore: |
38mm |
| Main Motor Power: |
1.5kw(2HP) |
| Coolant Pump Power: |
0.04kw |
| Net/Gross Weight: |
495/555kg |
| Spindle Speed Class: |
8 Class |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
One |
Product Description

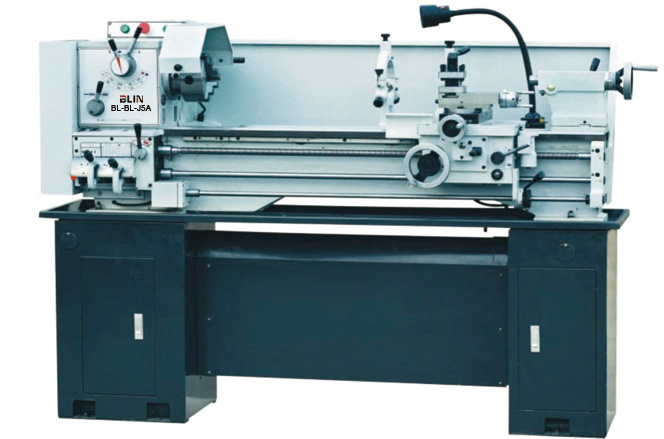

Gap Bed Lathe (BL-BL-J5A)(Norton gearbox)
Feature:
Ultrasonic harden bed
High precision bearings
Ultrasonic harden and precise ground gears
Easy and fast operating gearbox
Strong motor
ASA D4 cam-lock spindle nose
Various thread cutting
Norton lever gearbox
Standard Accessories:
Tool post wrench
Double-head wrench
Allen wrench
Screwer
Dead Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Install on machine)
Follow rest(Install on machine)
Manual 3-jaw chuck(Install on machine)
steel stand
4-jaw chuck
Working Lamp(common)
Coolant System
Foot Brake
Optional Accessories:
Drilling Chuck
Arbor
Driling Stock
Live Center
Face Plate
Ball screw guard
Work lamp(aluminium cover)
Taper turning Attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
2 speed motor system
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand
Specification:
Item | Unit | BL-BL-J5D/6D | BL-BL-J5E/6E | BL-BL-J5A/6A |
| Max. swing dia. over bed | mm | Φ330/Φ355 |
| Max. swing dia. over slide | mm | Φ195/Φ220 |
| Max. swing dia. over gap | mm | Φ476/Φ500 |
| Guideway width | mm | 186 |
| Center distance | mm | 1000 |
| Spindle taper | / | M.T.5 |
| Spindle bore | mm | Φ38 |
| Spindle speed class | / | 8 class | Stepless | 8 class |
| Spindle speed range | rpm | 70~2000 | low:70~480;high:480~2000 | 70~2000 |
| Spindle nose | / | D1-4 |
| Metric thread | / | 26kinds (0.4~7mm) | 23kinds (0.25~11mm) |
| Inch thread | / | 34kinds(4~56TPI) | 40kinds(4~112TPI) |
| Module thread | / | 16 kinds(0.35~5MP) | 15 kinds(0.25~3MP) |
| Diametral thread | / | 36 kinds(6~104DP) | 23 kinds(8~64DP) |
| Range of longitudinal feeds | mm/r | 0.052~1.392mm/r(0.002''~0.0548'') | 0.091~2.553mm/r(0.0036''~0.1005'') |
| Range of cross feeds | mm/r | 0.014~0.38mm/r(0.00055''~0.015'') | 0.025~0.69mm/r(0.0012''~0.0345'') |
| Lead screw O.D. | mm | Φ22mm(7/8") |
| Lead screw pitch | mm | 3mm or 8TPI |
| Max. travel of saddle | mm | 1000 |
| Max. travel of cross | mm | 160 |
| Max. travel of tool post | mm | 70 |
| Tailstock quill travel | mm | 95 |
| Tailstock quill dia. | mm | Φ32 |
| Tailstock quill | / | MT3# |
| Spindle motor power | kw | 1.5kw(2HP) |
| Coolant pump power | kw | 0.04kw(0.055HP) |
| Packing size of main machine | mm | 1920×760×760 |
| Packing size of Left foot stand | mm | 440×410×700 |
| Packing size of right foot stand | mm | 370×410×700 |
| Main machine G.W./N.W. | kg | 565/510 | 555/500 | 555/500 |
| Foot stand G.W./N.W. | kg | 75/70 |
| Loading amount(20GP container) | pcs | 22 |
