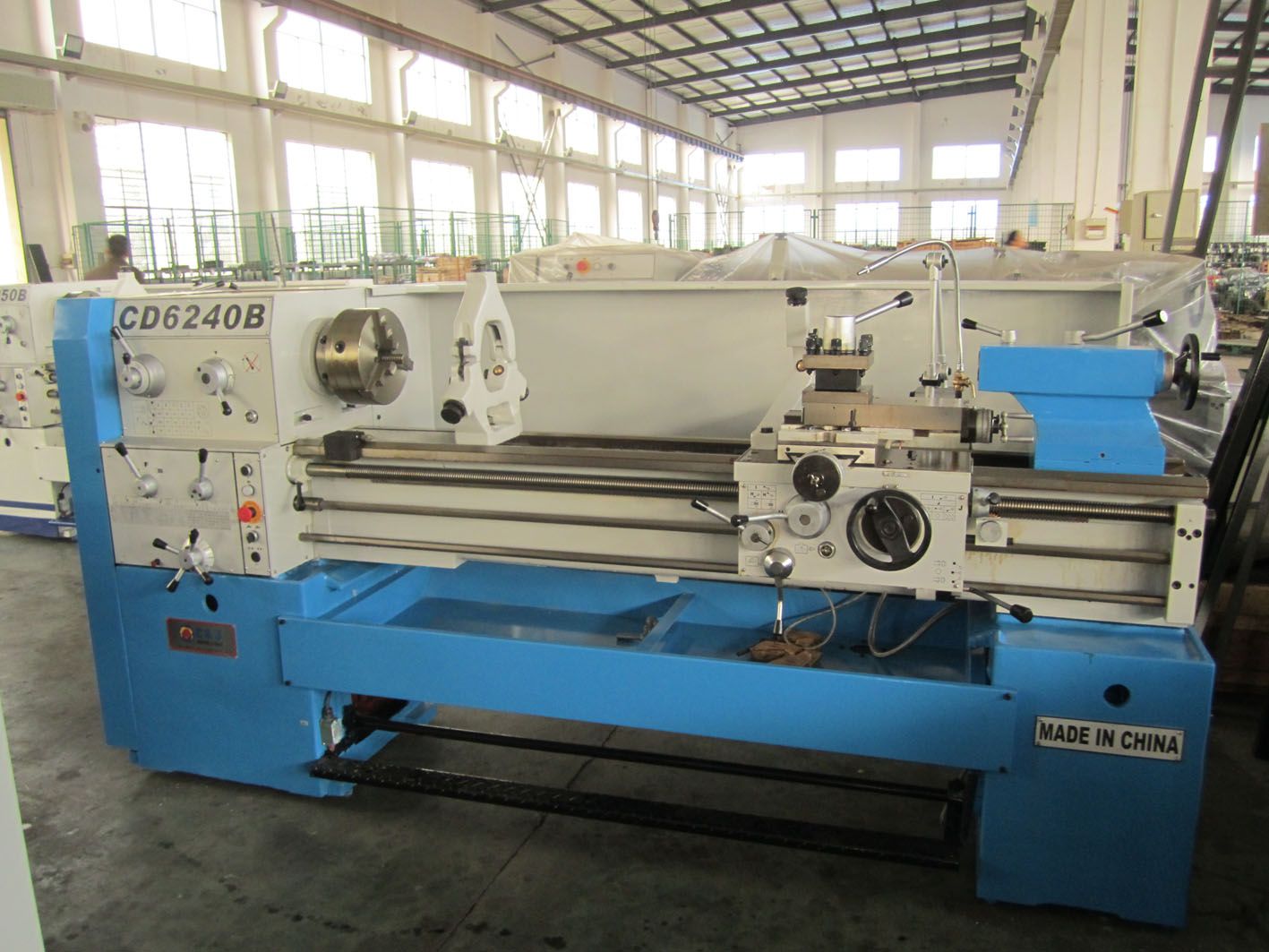

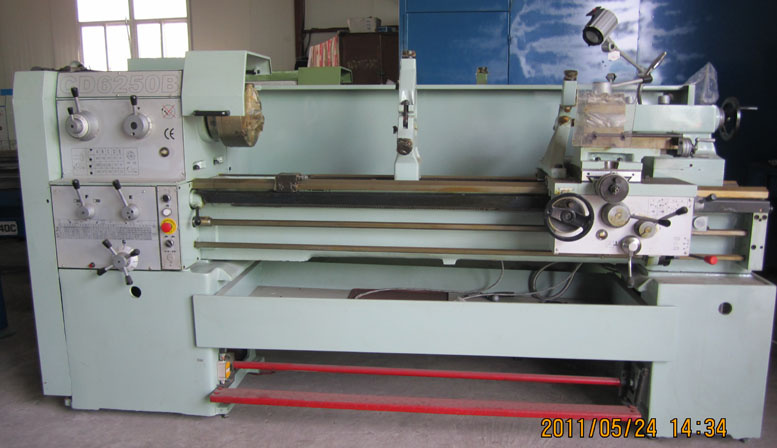

Gap Lathe Machine (CD6240B) Spindle Hole 65mm Centre Length 1000mm, 1500mm, 2000mm
| Price: |
Negotiable/Set |
| Trade Terms: |
by Sea |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Lathe (CD6240B) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
Gap Lathe Machine (CD6240B) Spindle Hole 65mm Centre Length 1000mm, 1500mm, 2000mm
Feature:
Precision ground
CE-conformity; Magnetoelectrical brake can be amounted
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapid traverse (optional)
Main spindle supported at 2 points with precision taper roller bearings
STANDARD ACCESSORIES
3-jaw chuck 250mm, Driving plate, Center & center sleeve, Oil gun, Wrenches, Operation manual
OPTIONAL ACCESSORIES
Steady rest, Follower rest, 4-jaw chuck 320mm, Face plate, Thread dial, Longitudinal automatic trip, Live center, Quick change toolpost, Taper copy ruler, 4-position longitudinal antomatic trip
| MODEL | CD61 236B | CD6140B2 | CD6145B2 | CD6150B2 | CD6160B2 |
| CAPACITIES | Max. swing over bed | 360mm (14" ) | 400mm (16" ) | 450mm (18" ) | 500mm (20" ) | 600mm (24" ) |
| Max. swing over cross slide | 185mm (7 1/4" ) | 225mm (9" ) | 285mm (11 1/5" ) | 325mm (13" ) | 360mm (14" ) |
| Center distance | 1000, 1500, 2000mm |
| Max swing over gap | 490mm (20" ) | 530mm (21" ) | 580mm (23" ) | 630mm (25" ) | 730mm (29" ) |
| Effective length of gap | 260mm (10 1/4" ) |
| Bed width | 330mm (13" ) |
| HEADSTOCK | Spindle hole | 65mm (2 3/5" ) |
| Spindle nose | ISO-C6 or ISO-D6 |
| Spindle taper | Metric 70mm |
| Spindle speeds (Number) | 22-1800rpm (15 Steps) |
| FEEDS | Metric threads range (Kinds) | 0.5-28mm (66 Kinds) |
| Inch threads range (Kinds) | 1-56inch (66 Kinds) |
| Moudle threads range (Kinds) | 0.5-3.5mm (33 Kinds) |
| Diametral threads range (Kinds) | 8-56D. P (33 Kinds) |
| Longitudinal feeds range (Kinds) | 0.072-4.038mm/rev (0.0027-0.15 inch/rev) (66 Kinds) |
| Cross feeds range (Kinds) | 0.036-2.019mm/rev (0.00213-0.075 inch/rev) (66 Kinds) |
| Rapid travelling speed of carriage | 5m/min (16.4 ft/min) |
| Leadscrew size: Diameter Pitch | 35mm/6mm or 35mm/1/4" |
| CARRIAGE | Cross slide travel | 300mm (13" ) |
| Compound rest travel | 130mm (5" ) |
| Cross-section size of toolshank | 20 x 20mm | 20 x 25mm (1 x 6/8inch) | 25x 25mm |
| TAILSTOCK | Taper of tailstock sleeve | Morse No. 5 |
| Diameter of tailstock sleeve | 75mm (23/5" ) |
| Travel of tailstock sleeve | 120mm (43/4" ) |
| MOTOR | Main drive motor | 4.0kw or 5.5kw or 7.5kw | 7.5kw |
| Coolant pump motor | 0.125kw |
| Rapid traverse motor | 0.12kw |
| Packing Size (L x W x H) |
|
| Center distance | 1000mm | 2420 x 1150 x 1800mm (96 x 46 x 71in. ) |
| 1500mm | 2920x 1150 x 1800mm (115 x 46 x 71in. ) |
| 2000mm | 3460 x 1150 x 1800mm (137x 46 x 71in. ) |
| Net Weigh/Gross Weight (Kgs) |
|
| Center distance | 1000mm | 1520/2170kg | 1560/2210kg | 1580/2230kg | 1600/2250kg | 1640/2290kg |
| 1000mm | 1750/2390kg | 1770/2410kg | 1820/2460kg | 1830/2470kg | 1870/2530kg |
| 1000mm |
| 2010/2780kg | 2050/2800kg | 2070/2820kg | 2130/2860kg |
- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer's greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
At present our main products range as followingSurface grinding machine Manual Surface grinder M618A, M820, M250 Auto electric Surface grinder MD618A, MD820 Auto Hydraulic Surface grinder MY820, MY250, MY3060, MY3075, M7125A, M7135A, M7140A Full Auto (PLC) hydraulic Surface grinder SGA2550AHD, SGA3063AHD, SGA4080AHD, SGA40100AHD, SG50100AHD Wheel Head Moving Surface grinder M7132, M7140, M7150, M7160, M7163 Universal cylindrical grinder M1420, M1432B, M1450Shot blast machine Q324, Q326, Blast wheels/impellers, shot blasting turbines system Lathe machine Combo Lathe milling machine: WMP250V, WMP280V, WMP290V, HQ500, HQ800 Bench lathe: WM250V, WM280V, WM290V, CQ6236G, CQ6230A, C0632C, GH1440K, GH1440A, C6236 Industrial lathe CD6241, C6241/C6246/C6251/C6256, C6266/C6280, C6236C/C6240C/C6250C/C6260C, CD6240/CD6250/CD6260B(C), C6250/C6266B (C), CS6240/CS6250/CS6266B (C), CQ6280C, CY6266/CY6280 Heavy duty lathe CW6183C/CW6293C, CW6180/CW62100, CZ6280/CZ62100C. CNC lathe CK6132, CK6136, CK6140,CK6146, CK6150, CK6156,CK6166, CK6180Milling machine Drilling milling machine ZX45, ZX7045, ZAY7045FG, ZX50C, ZX7550C/ZX6350C, ZX7550CW/ZX6350ZA Turret milling machine X6323/X6325/X6330/X6333 ( MF1V/MF5V/MF6V/MF7V), X6336. X6332Z, Knee type: X6136A, XW6136, XL6032CL, X5032W, XZ5150, XA7140 Swivel head type: LM1450A, XQ6226B, X6432, X6436 Tool milling machine X8130A, X8140A CNC milling machine VMC1000, XK7136C, VMC850B, XH7132A, XH7125 Vetical drilling machine Z5045, Z5045C, Z5045C-1,Z5140B,Z5150BSaw Machine Band saw BS-712N, G4017, G5020, G5025, G5027 Horizontal Saw GH4220, GH4228, GH4240, GH4250, GH4280EDM and wire cutting machine EDM540, DK7740, Shaper machine, slotting machine B635A, BC6050, BC6063, BC6066, Hydraulic press: HP(B)-30, HP(B)50/HP(B)63, HP(B)-100, HP-10S, HP-20SShearing machine manual shearing machine mechanical shearing QH11D, hydraulic shear QC11Y, QC12YBending /foldingmachine Manual bending machine WH06, ESF1020, QF28Y corner notching, ERBM30/40/50/65HV section bending machine, Hydraulic folding machine W62K, hydraulic press brake WC67Y, WE67KRolling machine: Manual rolling machine, ESR electric rolling machine, Mechanical rolling machine W11, W11Y, W12S, Q35Y Iron workers, and all kinds of auto maintenance and vehicle equipment and machine accessorie.Our Contact information:Http:// www.ycjixie.com
As a growing factory located in Dafeng city, Jiangsu province, Yancheng C&J Machinery Co., Ltd. is specialized in manufacturing all kinds of shot blasting machine, surface grinder machine, lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement.
With high quality and competitive price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina, Poland, Turkey and so on.
In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.
Also quality assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warranty to our customers around the world as well as professional technical support and services.
With the sprite of "quality first, user supreme", we're insisting on seeking survival with quality, to seek the development with reputation, to compete by technology, with the management concept of taking customer as god, we provide best quality with best price to our overseas buyer and we will forever do our best to proceed and gain further success. Your demand is our pursuit forever. We are ready to establish mutual benefits with companies both at home and abroad. If you are interested in any of our products, please feel free to contact us immediately.
