| Prod Model: |
GCL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Lifting |
| Warranty: |
1 Year |
| Loading Port: |
Shanghai |
| Max Lifting Weight: |
10 Ton |
| Power: |
Manual |
| Color: |
Black/Yellow |
| Name: |
Hand Gear Trolley |
Product Description

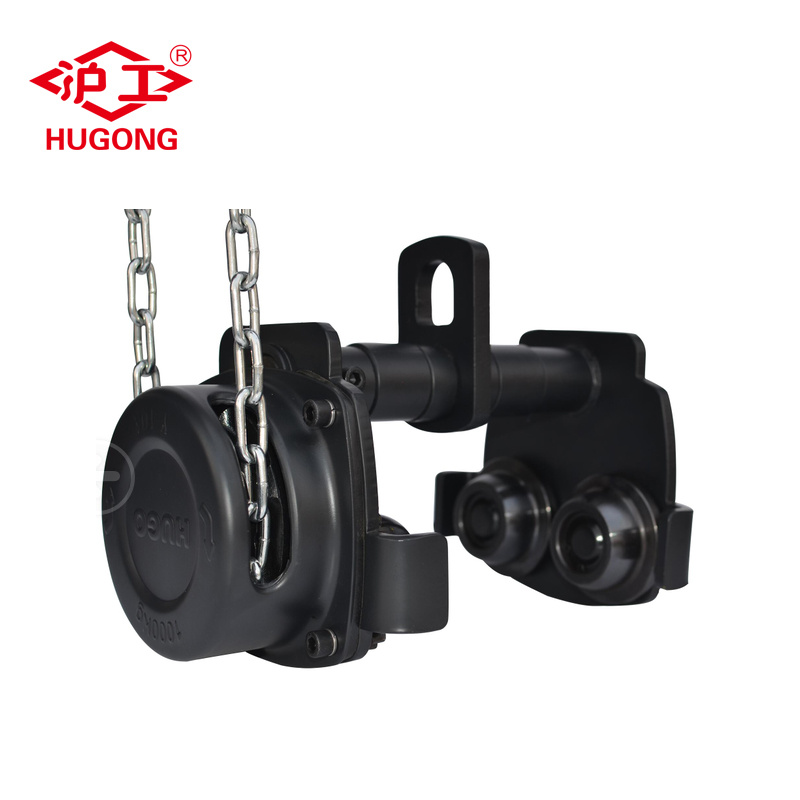

GCL High Quality Hand Gear Trolley Beam Trolley with Drop Stop
1. IntroductionMonorail trolley contains hand pull trolley and hand push trolley, pull trolley is driven by hand chain, and hand push trolley driven by pushing the lifting loads. It runs freely at the bottom flange of I beam, and distance between wheel flange can be adjusted according to the track width of I beam. A manual hoist traveling block can be formed by putting the chain block hangs under the trolley.

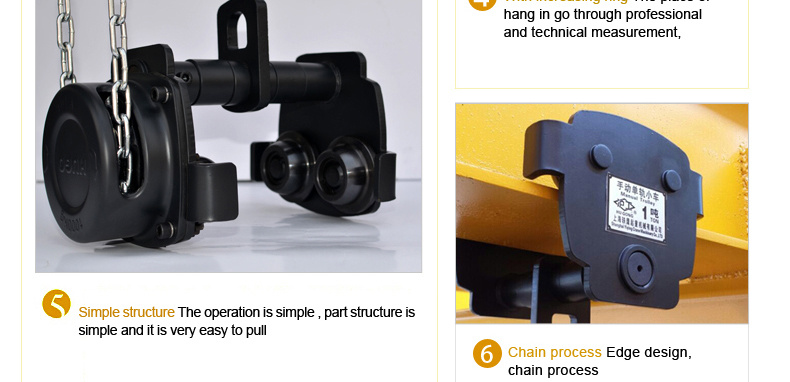

2. Features
Easy operate, simple structure, easy maintain
100% Test before loading
parameters of Trolley
Model |
Rated load (Ton) |
Test (KG) |
The Min curvature radius (M) |
Main Size(MM) |
I-Beam recommended(MM) |
A |
B |
C |
H |
F |
GCL-JA0.5 |
0.5 |
0.64 |
1 |
208 |
172 |
190 |
108 |
3 |
75-100 |
GCL-JA1 |
1 |
14.71 |
1 |
220 |
206 |
222 |
122 |
3 |
75-100 |
GCL-JA2 |
2 |
29.42 |
1.1 |
260 |
240 |
267 |
132 |
3 |
90-140 |
GCL-JA3 |
3 |
44.13 |
1.3 |
285 |
279 |
319 |
181 |
3 |
100-150 |
GCL-JA5 |
5 |
61.29 |
1.4 |
338 |
318 |
384 |
219 |
3 |
125-175 |
GCL-JA10 |
10 |
122.58 |
1.7 |
362 |
380 |
490 |
275 |
3 |
125-180 |

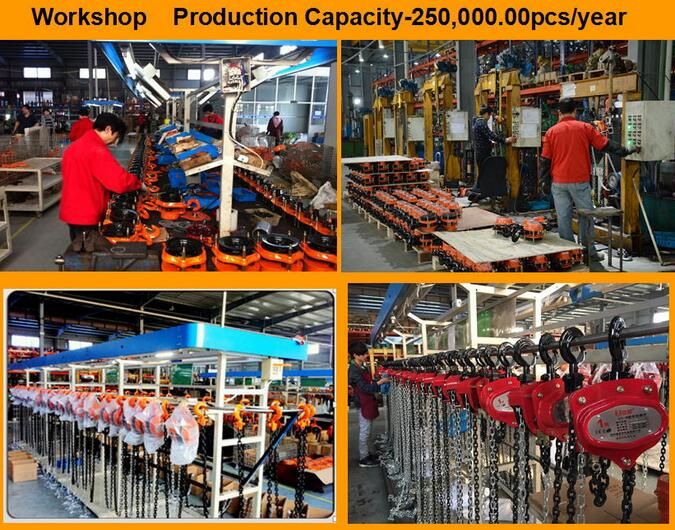

Factory View
Our Certificate & Service
Shanghai Yiying Crane Machinery Co., Ltd. was established in 1992, specializing in designing and manufacturing of manual chain hoist, lever hoist, electric hoists and other lifting products.
The company has been taking efforts in designing, manufacturing, sales and services nearly 20 years. Now it becomes one of the most excellent manufacturer of crane around the world. The company has total capital 50 million RMB, covers 100000 square meters, building area 75000 square meters with modern processing center, assembling center and testing center. The company has its own designing and developing ability of new product, and whole set of production equipment of lifting machinery. The sales volume reaches more than 200, 000 sets per year.
We always guarantee our design and quality following the step of times and enhance the share of international market, so the company has completely achieved quality system, such as ISO9001 and CE.
The company has been exported to almost 50 countries and regions, including Europe/ USA/Australia/Southeast Asia/South Africa, etc.
Under the principle of "QUALITY DERIVES FROM PROFESSION" Shanghai Yiying Crane Machinery Co., Ltd. Sincerely welcome all our friends from domestic and abroad to build business relationship with us!
