| Prod Model: |
Q947 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
900lb |
| Ball: |
F316 |
| Body: |
A105 |
| Stem: |
F316 |
| Seat: |
PTFE |
| Design: |
API6d |
| Test: |
API598 |
| Flange: |
ASME B16.5 |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
| Driving Mode: |
Electric-Hydrau |
Product Description

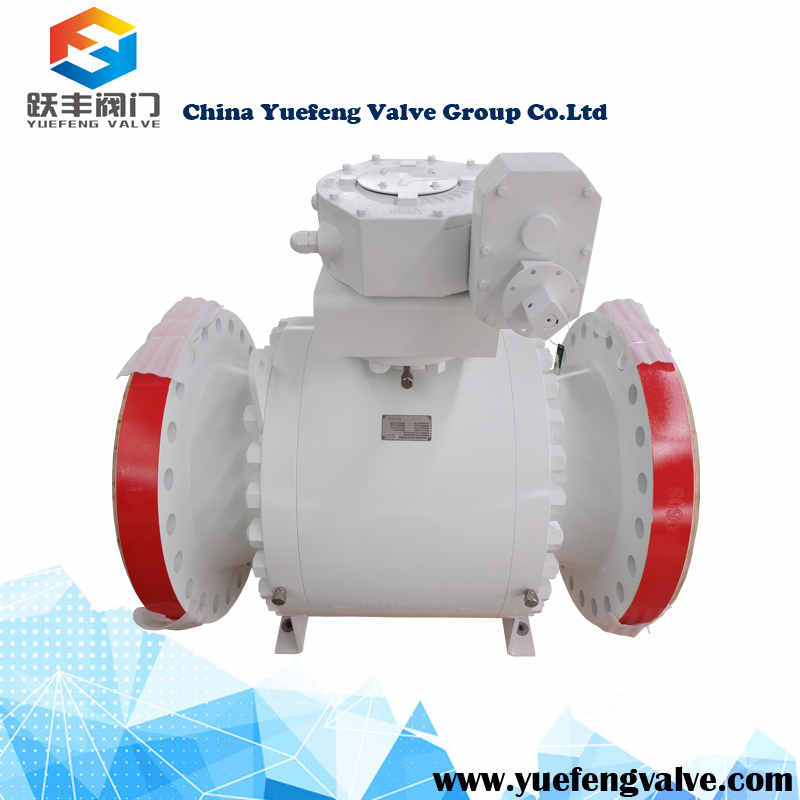

Gear Operate Metal to Metal Seat Ball ValveMAIN FEATURES: Seat of metal to metal ball valves have special protection and tight shut-off design to be applied to some poor conditions, such as high- temperate, high pressure and abrasive mediums, to fully solve the problem of inner leakage and outer leakage, and ensure reliable sealing with zero leakage.
Design FeaturesAdvanced rocket-spraying process ensures that sealing is realiable under all temperatures - pressures. With hydrogen used as fuel, this process has been applied to the sealing faces of the ball and the valve seats;
Double block and bleed;
Cavity pressure self relief;
Blowout-proof stem;
Seats are Tungsten Carbide HVOF(High Velocity Oxy Fuel) or overlay cladding coated with metal to metal contact between seats and ball, with metal to metal seat sealing characteristics, and it can clean dirt at surface of the gates.
Hardness of coating surface: up to HRC68~ 72;
Bonding strength of coating: ≥10000Psi;
Thickness of coating: 0.3 - 0.5 mm;
The precise "one-to-one" grinding process ensures the precise "one-to-one" grinding between the ball and the valve seat;
Product RangeBody material: carbon steel, stainless steel, alloy steel, dual-phase steel
Nominal diameter:2"~32"
Pressure range:Class150~2500
End connection: RF, RTJ, BW
Working temperature:-29ºC~+560ºC
Operation : wrench, worm gear, electric, pneumatic actuator, gas over oil actuator, electro-hydraulic actuator , etc.

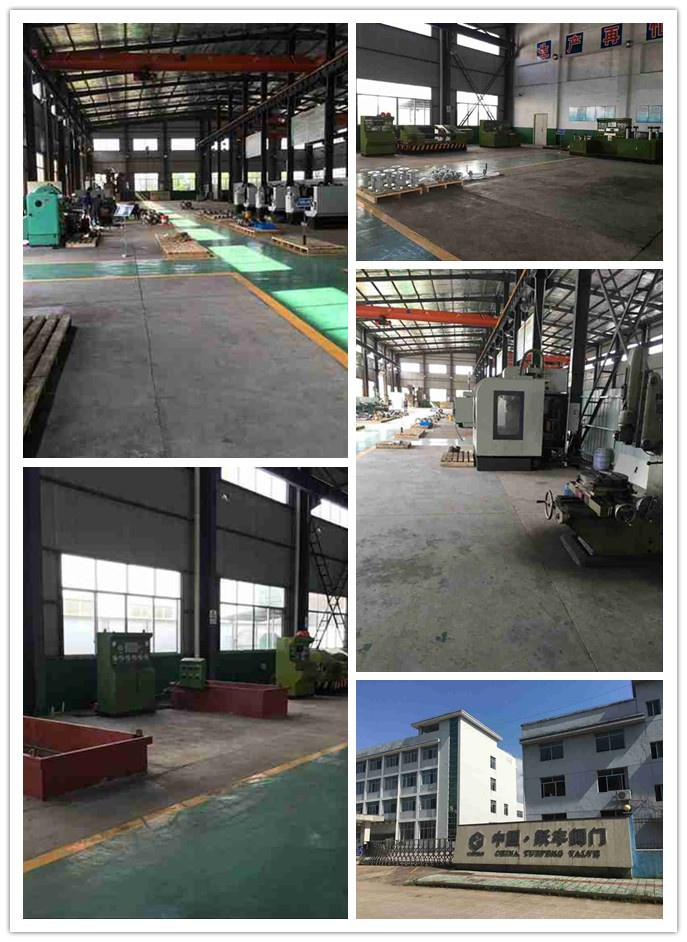

WORKSHOP

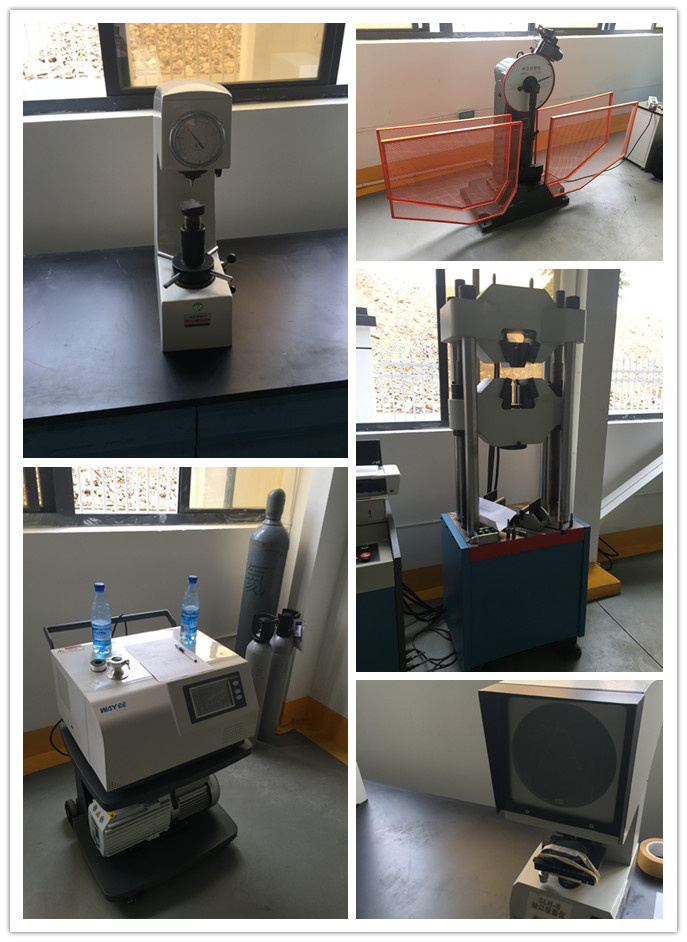

TEST EQUIPMENT

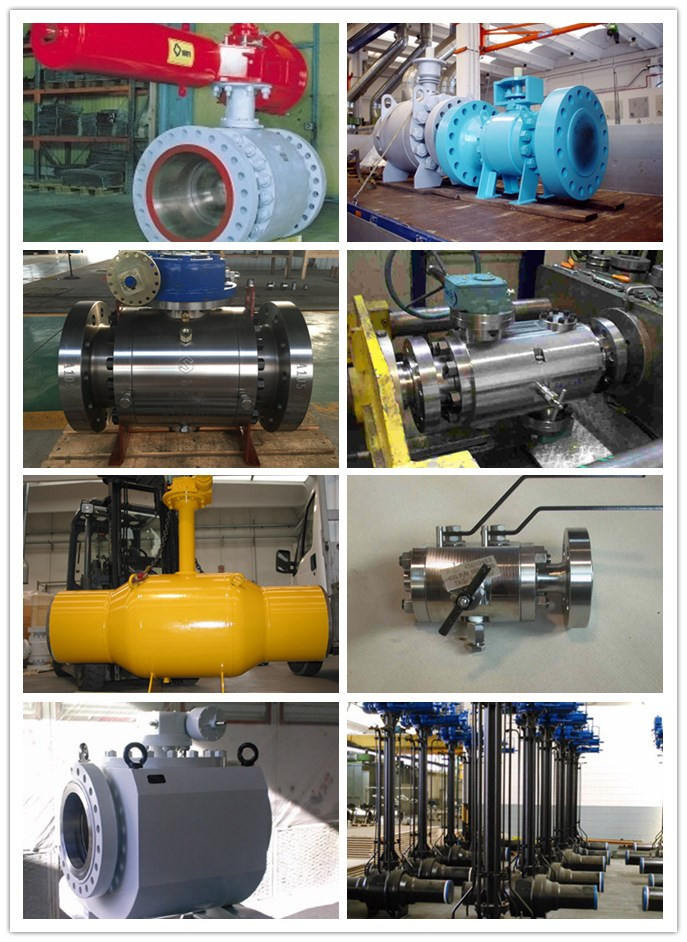

PRODUCT
DN(mm) | 50-1200 |
| PN(MPa) | 1.6 | 2.5 | 4.0 |
| Test | Strength | 2.4 | | 3.75 | | 6.4 |
| Sealing | 1.8 | 2.75 | 4.4 |
| Material code | C | P | R |
| Major parts | Body | A105 | | ZG1Cr18Ni9Ti | | ZG1Cr18Ni12Mo2Ti |
| Plate | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| Stem | 2Cr13 | | 1Cr18Ni9Ti | | 1Cr18Ni12Mo2Ti |
| Sealing ring | RPTFE | PPL |
| | |
| Filling | PTFE | Flexible graphite |
| Working conditions | Medium | Water,gas ,oil | Nitric acid | Acetic acid |
| Temperature | -28ºC~300ºC |
| Actutor | Type | GT Or AW Series |
| Air pressure | 0.3-0.7MPa |
China YueFeng Valve Manufacturing Co., Ltd was established in 2003, located in Yangliuhe industrial zone, yunhe town, zhejiang province. Yuefeng is a comprehensiveness non-affiliated enterprises which specialized in ball valve production and sales. In recent years, Yuefeng is mainly engaged in the development and production of welded ball valve, all-welded ball valve, directly-buried ball valve, large didameter welding ball valve, forged steel ball valve, high class ball valve, pigging valve and other valves.
Yuefeng built CAD/CAM valve disign center and Three-dimensional simulation system for manufacturing testing and designing. We have a number of practical patents. And Yuefeng has the right of import and export, with ISO9001 national quality system certification, ISO14001 environment management system certification, OHSAS18001 Occupational health and safety management system certification, national pressure piping components manufacturing license TS authentication, the United States API 6D authentication, the European Union CE certification. All of these above provide us the technical support to enter the international market.
Yuefeng covers the total area of 13, 000 square meters, with the existing staff more than 100 people within 3 senior engineers, 12 specialized engineers. We also have our machine ceters, digital controlled lathe, the physics and chemistry centers, the spectral analysis facilty and other advanced facilities for production and testing. Yuefeng products are all designed by modernized CAD, CAM, UG, PRO/E three dimensional design system and produced strictly according to the ISO9001-2015 International quality system certification. Our main products all-welded ball valve, forged steel ball valve, high pressure ball valve and pigging valve hold advantages in domestic market share for years. And our products also exported to Europe, Amercia, Southeast Aisa and Ausralia and other counties and areas. Our products share a good reputation in both domestic and abroad market. Yuefeng owns customers' belief with the high quality products, professional technical supports and impeccable customer services.
Yuefeng are willing to cooperate with customers all around the world. Our policy is to continuously improve customer satisfaction by supplying high quality products when promised at a good value. Yuefeng are looking forward to creat a glorious tomorrow.
