| Prod Model: |
7.1.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Advantage: |
Good Sharpness and Long Cutting Life |
| Market: |
Global |
| Quality: |
Do as Your Request |
| Graininess: |
30/35, 35/40 |
| Thickness: |
2.4mm |
| Shape: |
Round |
| Kind: |
Diamond Saw Blade |
| Usage: |
Stone and Concrete Cutting |
| Brand: |
OEM |
| Saw Blade External Diameter: |
230mm |
Product Description

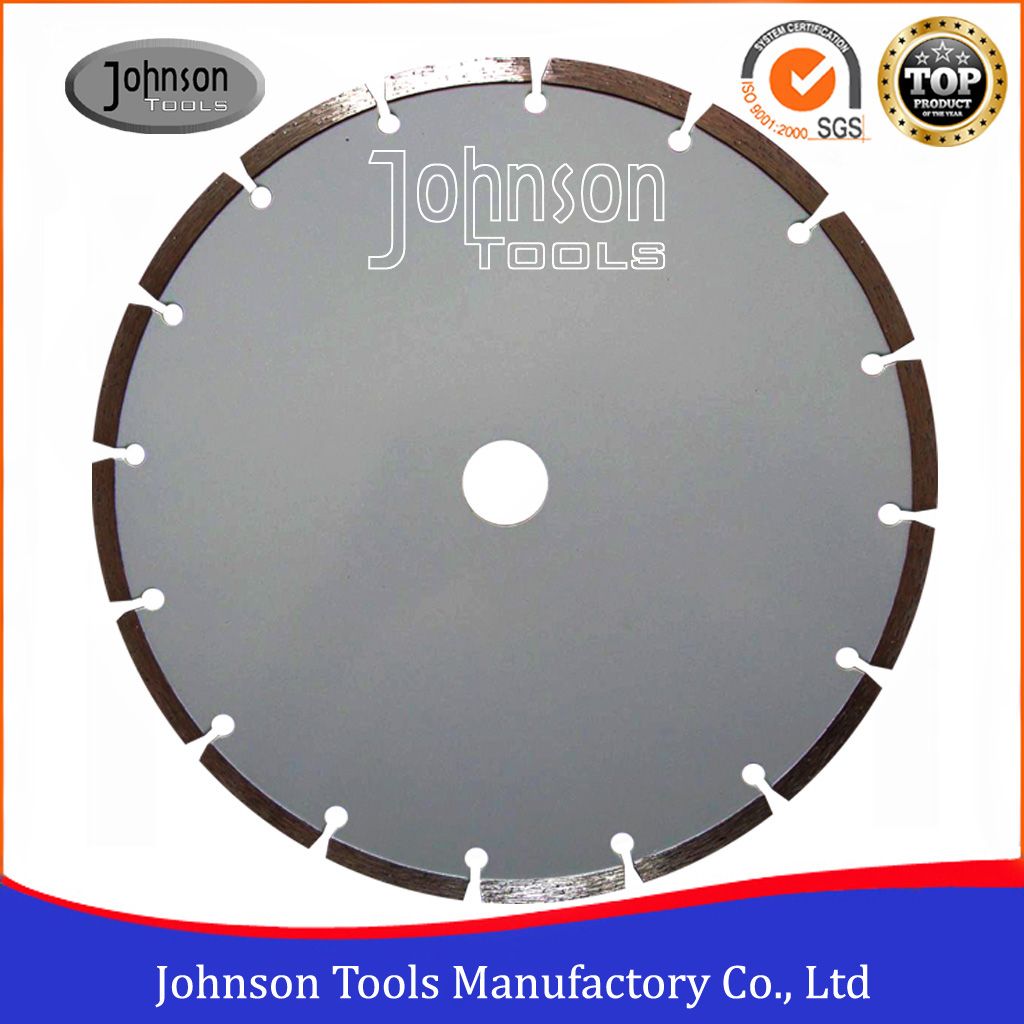

General purpose Cutting Saw Bade 230mm Sintered Segment Saw Blade
Why choose us:
1.SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.Well approved by our worldwide clients, export more than 70 countries.
3.Success formula for concrete saw blade
4.Quick Delivery time.
5.One-Day reply to your inquiry and question.
1. Description of General purpose Cutting Saw Bade 230mm Sintered Segment Saw Blade
230mm sintered segmented saw blade are fixed in angle grinders, high speed power saws, circular saws and masonry saws for General Purpose, Marble, Granite, block, concrete, pavers and brick, hard concrete, etc. Fast cutting, good cutting life.
Application:
General Purpose, Marble, Granite, block, concrete, pavers and brick, hard concrete, etc.
2. Features of General purpose Cutting Saw Bade 230mm Sintered Segment Saw Blade
1). Sintered technology, segmented type with efficient cutting all range of materials.
2). Both Dry and Wet Use.
3). Maximizing the value with good performance.
4). Mature production technology: Cold-pressed or hot-pressed
5). Easy and smooth cutting
6). Long cutting life
7). Different grade to choose
EQUIPMENT: Angle Grinder, Masonry saw, Circular Saw, High Speed Power Saw.
3. Specification information of General purpose Cutting Saw Bade 230mm Sintered Segment Saw Blade
Specifications:
Outer Diameter: 230mm
Segment height: 7mm or 10mm
Segment thickness: 2.2mm
Teeth No.: 16nos
Center hole: 20mm or 22.23mm or 25.4mm
Details Spec.:
| Outside diameter | Segment specification | Hole | Teeth No. | Cutting material |
| Thickness | Height |
| 230mm | 2.2mm | 7mm | 20/22.23/25.4mm | 16nos | General purpose |
| 230mm | 2.2mm | 10mm | 20/22.23/25.4mm | 16nos | General purpose |
Other size we could do
| Item No. | Inch | mm | Teeth number | Segment Thickness | Segment Height | Inner hole |
| SGP-105 | 4 | 105 | 8nos | 1.8 | 7/10 | 16/20 |
| SGP -110 | 4.3 | 110 | 8nos | 1.8 | 7/10 | 16/20 |
| SGP -115 | 4.5 | 115 | 9nos | 1.8 | 7/10 | 20/22.23 |
| SGP -125 | 5 | 125 | 9nos | 1.8 | 7/10 | 20/22.23 |
| SGP -150 | 6 | 150 | 12nos | 2 | 7/10 | 20/22.23 |
| SGP -180 | 7 | 180 | 14nos | 2 | 7/10 | 20/22.23 |
| SGP -200 | 8 | 200 | 14nos | 2.2 | 7/10 | 20/22.23 |
| SGP -230 | 9 | 230 | 16nos | 2.2 | 7/10 | 20/22.23 |
| SGP -250 | 10 | 250 | 18nos | 2.4 | 10 | 20/25.4 |
| SGP -300 | 12 | 300 | 22nos | 3 | 10 | 20/25.4 |
| SGP -350 | 14 | 350 | 24nos | 3.2 | 10 | 25.4 |
4. Packing and Shipping of General purpose Cutting Saw Bade 230mm Sintered Segment Saw Blade
Each saw blade is packed in white box or colored box packing, then according to the size, 10-100pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7.FAQ.
Q: How to place order to your company?
Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
After-Sale Service: Track the goods, learn the products' performance.
Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement
contact us,you will get more than what you see
www.johnsontoolscn.com
