| Prod Model: |
DF-H-2 |
| Drilling Hole Diameter: |
Bq, Nq, Pq |
| Max. Drilling Depth: |
350m |
| Stratum: |
Soil, Gravel, Pebble, Hard Rock etc. |
| Application: |
Core Sample, Soil Investigation etc |
| Warranty: |
One Year for Main Machine |
| Configuration: |
Supply All The Accessories |
| Delivery Time: |
Usually in 7 Working Days |
| Spare Parts: |
Supply at Factory Cost All Year Around |
| Diesel Engine: |
Cummins Brand |
Product Description
1.Product Description

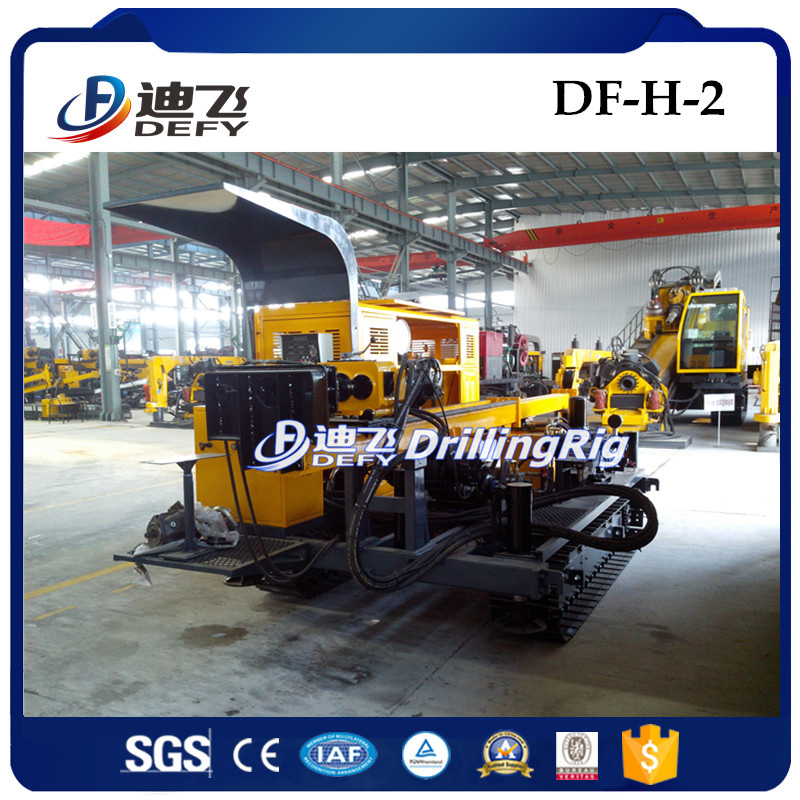

DF-H-2 Fully Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique.
The rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wire line winch, drill head feed system, foot clamp, etc.
The rig is completely hydraulic driven for all its surface coring function. Fission style design makes the rig in good assemblability and disassemblability, facilitating transportation to most inaccessible areas. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.
strong technic adaptability: besides diamond drilling with wire line coring tech, it is applicable for drilling and feeding requirement of any other stratum.
2.Specification
| 1. Basic parameter of drilling capacity |
| Hole depth | |
| BQ(Φ55.6mm equal to Φ2.19 inch )drill rod | 350 m(1148feet) |
| NQ (Φ69.9mm equal to Φ2.75 inch) drill rod | 230 m (754feet) |
| HQ (Φ88.9mm equal to Φ3.50 inch) drill rod | 120 m (394feet) |
| 2. Power Unit |
| Cummins 4BTA3.9-C100 diesel engine | 74KW;2200RPM |
| 3. Drill head |
| Max. spindle speed (r/min) | 0-900 |
| Max. spindle torque | 334-930 N·m (246-685 lbf·ft) |
| 4. Feeding system (feed with hydraulic cylinder) |
| Feeding stroke | 1700mm (67inch) |
| Lifting Capacity | 50KN (11240 lbf) |
| Feeding Capacity | 25KN(5620lbf) |
| 5. Main Hoist |
| Lifting Capacity (single-wire,bare drum) | 18KN (4046 lbf) |
| Lifting Speed | 84m/min (276feet/min) |
| Rope Capacity | 30m(98.4feet) |
| Steel Wire diameter | 12mm(0.47inch) |
3. Package & Shipment
Seaworthy Packing~Securing the drill rig to the container~Deliver to loading port~On the way~ Customer take deliver of the goods
Packing List
| Marks | Description | Qty | N.W. | G.W. | MEA. |
| DEFY Drilling rig | Drilling rig | 1 pkg | 7078kg | 7100kg | 22CBM |
All the goods can be shipped with a 20 feet full container load shipment.
NOTE: this list shows DEFY standard way of packing.If you request your way of packing,please notify it to DEFY and specify it in advance
