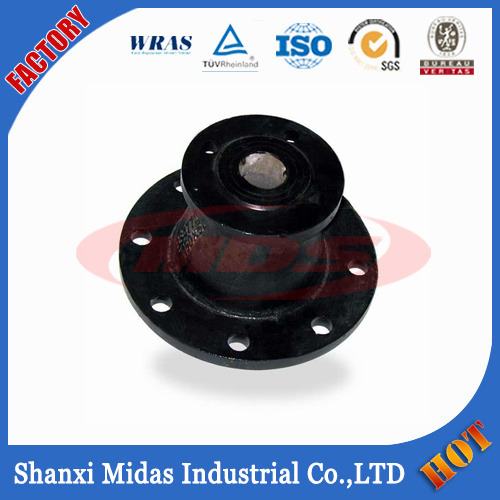

Ggg50 Ductile Cast Iron Pipe Fiitting Double Flanged Reducer
Price: |
US $ 600/Ton |
Min Order: |
1/Ton |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Application: |
Water Supply Project, Drainage, Sewerage, Irrigati |
Surfce Inside: |
Portland Cement Mortar Lining,Bitumen Paint, Epoxy |
Surface Outside: |
Epoxy Paint, Bitumen Paint, Epoxy Powder Coating |
Accessories: |
Gaskets,Bolts and Nuts Available Upon Request |
Inspection: |
SGS, BV, Third Party Inspection |
Sample: |
Sample for Free, But You Should Pay for The Freigh |
Payment: |
30% Tt Upon Placing Order and 70% Tt When The Good |
Shape: |
Equal |
Head Code: |
Round |
Technics: |
Casting |
Connection: |
Flange, Typon Joint(Push on Joint); Bolted Gland K |
Angle: |
90 |
Material: |
Ductile Iron |
Color: |
Black, Blue, Red, Yellow,etc |
Product Description
Ductile Iron Double flange duckfoot bend/elbow
1) About Ductile Iron Pipe FittingName | Main Type | Detail Types |
Ductile Iron Pipe Fitting | Flanged Pipe Fitting | Flanged Bend, Elbow, Flanged Tee, Double Flange Reducer, Flanged Invert Tee, Flanged Cross, Flanged Taper, Flanged Bell mouth, Ductile Iron Duckfoot Bend, Loosing Flanged Fitting, etc |
Tyton Socket Pipe Fitting | Double Socket Bend, Socket Elbow, Flange Socket, Double Socket Tee, Socket Spigot tee, T Socket Fitting, Double Socket Reducer, Double Socket Duckfoot Bend, S Type Socket Bend, All -Socket Tee with 45 ° Angle Branch, Double Socket Tee with Flange Tee, etc |
Mechanical Joint Pipe Fitting( K type Bolt Gland Fitting) | Bolted Gland Bend, Bolted Gland Concentric Tapers, Flanged and Bolted Gland Socket Pieces, Bolted Gland Collar, Bolted Gland Tee, Bolted Gland Socket Spigot Bend, Bolted Gland Socket Spigot Tee with Flanged Branch, etc |
Ductile Iron/PVC pipe fitting | DI/PVC Double Socket Bend, DI/PVC Double Socket Tee Flanged Branch, DI/PVC All Socket Tee, DI/PVC All Socket Cross, DI/PVC Double Socket Thread Branch Tee, DI/PVC Flanged Socket, DI/PVC Flanged Spigot, DI/PVC Double Socket Reducer, DI/PVC All Socket Tee, DI /PVC Gibault Joint, DI/PVC Flange Socket Duckfoot Bend, DI/PVC End Caps with Thread, DI/PVC End Caps, DI/PVC Saddles, DI/PVC Quick Adaptors, etc |
2) About Ductile Iron Flanged Pipe Fitting1 | Material: | Ductile Cast Iron GGG50 |
2 | Standard: | ISO2531 BS EN545, EN598,BS4772 |
3 | Pressure: | PN10, PN16,PN25 |
4 | Flange drilled: | ISO7005-2,BS4504, EN1092-2, DIN2501 |
5 | Specification: | DN50 to DN2000, K12/14 |
6 | Joints type: | Flange, Typon joint(push on joint); Bolted Gland K type Joint |
7 | Application: | Water supply project, drainage, sewerage, Irrigation ,water pipeline |
8 | Surface Inside: | Portland Cement mortar lining, bitumen paint, epoxy paint,powder |
9 | Surface Outside: | Epoxy paint, bitumen paint, epoxy powder coating |
10 | Accessories: | Gaskets, bolts and nuts available upon request |
11 | Inspection: | SGS, BV, third party inspection |
12 | Sample: | Sample for free, but you should pay for the freight charge for the samples |
13 | Payment: | 30% TT upon placing order and 70% TT when the goods are finished but before shipment. |
14 | Packing methods: | Wooden case/pallet with plastic layer, or as per customer's requirements |
We are one of the leading manufacturers of Ductile iron pipe, Ductile Iron Pipe Fittings, Flange Adaptors, Couplings, Dismantling Joints, Valves, Manhole Covers, Steel Flanges, Carbon steel pipe fittings, malleable iron pipe fittings, Rubber O rings, Fasteners. Pumps, Motor Shells and other Castings and Forgings according to different standards such as ISO2531, EN545, EN14525, ISO4422, ISO7005, DIN3352, BS5163, DIN3202, BS2494, BS4504, EN124 and other relevant ISO, EN, BS, DIN, ANSI, AWWA standards. Our products are widely exported to European countries, Middle East, South East Asia, South Africa and South American for more than 10 years. We can also make the Castings and Forgings according to customers' Drawings or samples. We are eager to get your inquiries and establish long term mutual benefit cooperation relationship. We have our advantages in manufacturing and you have your advantages in sales, we are sure with our working together we can get one " Win-win" Situation. We hope we can grow together!
