| Prod Model: |
HG-226 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1-3/4*18 |
| Weight: |
52.5lbs. |
| Wll: |
28000 Lbs. |
| Material: |
Steel |
Product Description
SPECIFICATION:

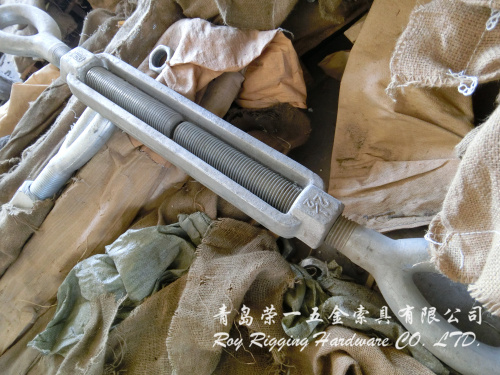

Name:US Fed Spec Galvanised Drop Forged Eye & Eye Turnbuckle
Item Number: HG-225
Thread Dia.: 1-3/4"
Take Up: 18"
Material: Carbon Steel 45#
Weight Each: 52.5lbs.
WLL: 28000lbs.
FOS: 4:1
DESCRIPTION:
End fittings are Quenched and Tempered; bodies are heat treated by normalizing
Hot Dip galvanized, zinc plated or self-colored.
In-line or straight pull application.
Lock Nuts available for all sizes.
Fatigue Rated.
| THREAD DIA. & TAKE UP (IN.) | ITEM NO. | WORKING LOAD LIMIT (LBS.) | WEIGHT EACH (LBS.) | DIMENSIONS (IN.) |
| A | J OPEN | K CLOSED | M OPEN | N CLOSED | R | S | X | BB |
| 1/4 x 4 |
| 500 | 0.26 | 0.25 | 11.80 | 7.80 | 12.25 | 8.25 | 0.78 | 0.34 | 1.75 | 4.00 |
| 5/16 x 4-1/2 | 800 | 0.45 | 0.31 | 13.56 | 9.06 | 14.12 | 9.62 | 0.94 | 0.44 | 2.09 | 4.50 |
| 3/8 x 6 |
| 1,200 | 0.76 | 0.38 | 17.47 | 11.47 | 18.16 | 12.16 | 1.12 | 0.53 | 2.53 | 6.00 |
| 1/2 x 6 |
| 2,200 | 1.54 | 0.50 | 20.08 | 13.08 | 20.96 | 13.96 | 1.44 | 0.72 | 3.23 | 6.00 |
| 1/2 x 12 |
| 2,200 | 2.14 | 0.50 | 32.08 | 19.08 | 32.96 | 19.96 | 1.44 | 0.72 | 3.23 | 12.00 |
| 5/8 x 6 |
| 3,500 | 2.40 | 0.63 | 91.93 | 14.68 | 22.93 | 15.68 | 1.75 | 0.88 | 3.90 | 6.00 |
| 5/8 x 12 |
| 3,500 | 3.42 | 0.63 | 33.93 | 20.68 | 34.93 | 21.68 | 1.75 | 0.88 | 3.90 | 12.00 |
| 3/4 x 6 |
| 5,200 | 3.79 | 0.75 | 23.88 | 16.38 | 25.12 | 17.62 | 2.09 | 1.00 | 4.69 | 6.00 |
| 3/4 x 12 |
| 5,200 | 5.48 | 0.75 | 35.88 | 22.38 | 37.12 | 23.62 | 2.09 | 1.00 | 4.69 | 12.00 |
| 3/4 x 18 |
| 7,200 | 7.19 | 0.75 | 47.88 | 28.38 | 49.12 | 29.62 | 2.09 | 1.00 | 4.69 | 18.00 |
| 7/8 x 12 |
| 7,200 | 7.22 | 0.88 | 37.07 | 23.32 | 38.57 | 24.82 | 2.38 | 1.25 | 5.10 | 12.00 |
| 7/8 x 18 |
| 7,200 | 9.95 | 0.88 | 49.07 | 29.32 | 50.57 | 30.82 | 2.38 | 1.25 | 5.10 | 18.00 |
| 1 x 6 |
| 10,000 | 9.04 | 1.00 | 27.97 | 19.97 | 29.72 | 21.72 | 3.00 | 1.44 | 6.36 | 6.00 |
| 1 x 12 |
| 10,000 | 11.50 | 1.00 | 39.97 | 25.97 | 41.97 | 27.72 | 3.00 | 1.44 | 6.36 | 12.00 |
| 1 x 18 |
| 10,000 | 14.00 | 1.00 | 51.97 | 31.97 | 53.72 | 33.72 | 3.00 | 1.44 | 6.36 | 18.00 |
| 1 x 24 |
| 10,000 | 17.25 | 1.00 | 63.97 | 37.97 | 65.72 | 39.72 | 3.00 | 1.44 | 6.36 | 24.00 |
| 1-1/4 x 12 |
| 15,200 | 19.00 | 1.25 | 42.81 | 28.31 | 45.06 | 30.56 | 3.56 | 1.81 | 7.72 | 12.00 |
| 1-1/4 x 18 |
| 15,200 | 23.00 | 1.25 | 54.81 | 34.31 | 57.06 | 36.56 | 3.56 | 1.81 | 7.72 | 18.00 |
| 1-1/4 x 24 |
| 15,200 | 27.00 | 1.25 | 66.81 | 40.31 | 69.06 | 42.56 | 3.56 | 1.81 | 7.72 | 24.00 |
| 1-1/2 x 12 |
| 21,400 | 27.50 | 1.50 | 45.50 | 30.50 | 48.00 | 33.00 | 4.06 | 2.12 | 8.62 | 12.00 |
| 1-1/2 x 18 |
| 21,400 | 31.00 | 1.50 | 57.50 | 36.50 | 60.00 | 39.00 | 4.06 | 2.12 | 8.62 | 18.00 |
| 1-1/2 x 24 |
| 21,400 | 37.50 | 1.50 | 69.50 | 42.50 | 72.00 | 45.00 | 4.06 | 2.12 | 8.62 | 24.00 |
| 1-3/4 x 18 |
| 28,000 | 52.50 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.62 | 2.38 | 10.00 | 18.00 |
| 1-3/4 x 24 |
| 28,000 | 58.00 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.62 | 2.38 | 10.00 | 24.00 |
| 2 x 24 |
| 37,000 | 85.25 | 2.00 | 75.69 | 51.69 | 79.19 | 55.19 | 5.75 | 2.69 | 13.09 | 24.00 |
| 2-1/2 x 24 |
| 60,000 | 144.25 | 2.50 | 78.62 | 54.62 | 82.62 | 58.62 | 6.50 | 3.12 | 13.78 | 24.00 |
| 2-3/4 x 24 |
| 75,000 | 194.00 | 2.75 | 81.00 | 57.00 | 85.50 | 61.50 | 7.00 | 3.25 | 15.22 | 24.00 |
