Gl70 DTH Down The Hole Drilling Hammer

Prod Model:	GL70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Drilling Tool
Model Number:	Gl65b,Gl70, Gl76, Gl80, Gl90, Gl90-1, Gl110, Gl150
Drilling Diameter:	68-250mm
Length:	745-1023mm
Weight:	13-90kg
Processing Type:	Forging
Working Pressure:	0.5-0.7 MPa
Air Consumption:	2.5 -19.5

Product Description

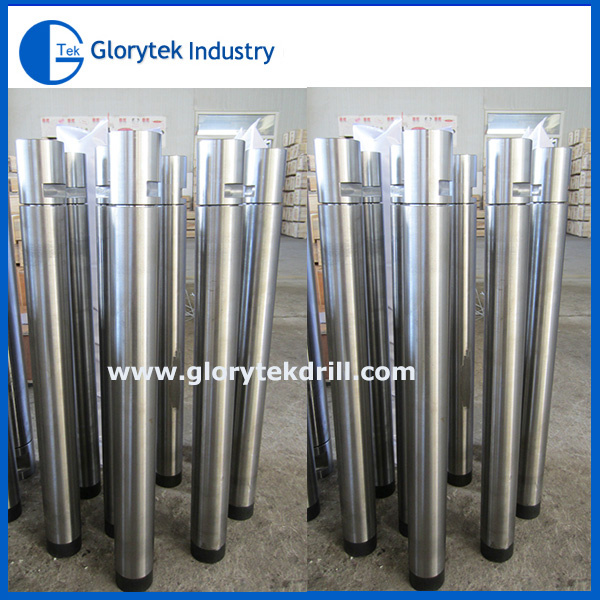

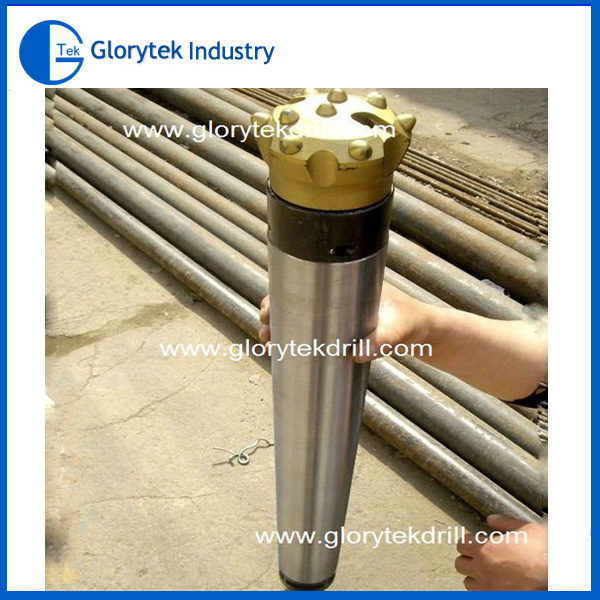

DTH Down The Hole Drilling Hammer



Description

Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc.
They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high
abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.

Our hammer and bits are made of high quality alloy steel with advanced heat threatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.

Advantage

1. Durable impact parts
2. High speed , most stable performance
3. Efficient energy transfer
4. Long life


Main Features

 1) DTH hammers series we supply
 A) High pressure series
 B) Medium pressure series
 C) Low pressure series
 D) High efficiency high pressure series
 E) Reverse circulation series

 2)Outside diameters: 61.2~275mm
 3)Drilling diameter: 68~508mm


 Application

 1. mine and quarry
 2. road construction for the drilling and blasting work
 3. water well drilling
 4. slope protection

Type and Technical Specifications


Item	GL65B	GL70	GL76	GL80	GL90	GL90-1	GL110	GL150	GL170
Drilling Dia.  (Φ/mm)	68-70	72-74	74-76	80-82	90-130	90-130	110-150	150-185	170-250
Hammer Length(mm)	745	803	766	796	796	796	838	908	1023
Outside Dia.  (Φ/mm)	61.2	67.2	67.2	72	80.2	80	98	137	156
Weight(kg)	13	14	15	17	20	20	30	75	90
Working Pressure(Mpa)	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7
Air Consumption (M3/Min.)	2.5	3	3	5	6	5.5	11	17	19.5
Torque(N.M)	51	70	75	81	110	120	180	340	420
Impact	≥810	≥810	≥810	≥800	≥820	≥820	≥830	≥800	≥790
Frequency (Times/Min.)
Connection 1	M4×10×1.5	M48.8×4.2	M48×10×2	M48×10×2	M48×10×2	M48×10×2	API 2-3/8"	76×10×3	M100×28×10
Connection 2	Φ37-4	Φ43-6	Φ44-4	Φ50-6	Φ54-6	Φ54-6	Φ65-6	Φ90-6	Φ98-6


Othe Related Products



Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
       2. According to the rock types, choosing the face type, button tooth type.
       3. According to the different purpose,. choosing the different body type

Our Company

Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
