| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | HX |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: | Drilling, Optical Glass Cutting |
| Manufacturing Arts: | Sinter |
| Kind: | Diamond Drill |
| Size: | 5-100mm |
| Drill Bit: | Drilling |
| Diameter: | 5-100mm |
| Core Drill: | Glass |
| Diamond Tools: | Drilling |
| Bit: | Drilling |
| Glass Tools: | Drilling |

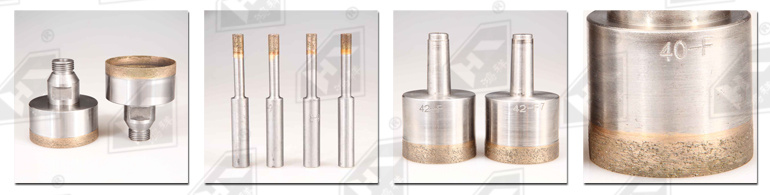

Sintered drill bit | Cone shank | Straight shank | Thread shank |
Diameter | 5-100mm | 5-100mm | 5-100mm |
Length | 60mm,65mm | 60mm,65mm | 60mm,65mm |
Shank | 10mm,8mm | 45 degree taper | 1/2'' |
Worker layer | 10mm | 10mm | 10mm |
Wall thickness | 0.8-1.2mm | 0.8-1.2mm | 0.8-1.2mm |
Applications:
1.Suit for:glass,safety glass,tempered glass,architectural glass,frosted glass,patterned glass,Insulated glass,laminated glass,glass brick,optical glass,Auto Glass,solar glass,grnite,marble etc stone.
2.Usage:glass drilling
3.Machine:Benching drilling&professional drilling machine,such as Bavelloni, Bottero, Glassline, Schiatti, etc machine
Faster service in emergency situations is available.abundant stock, offer quick delivery.
4.Feature:extremely high speed, No chipping& maximum working life,save cost,and stable & reliable working
5.How to use : the product is installed on the drilling machine or electric drill, bench drill, Rotate speed about 700-3500rpm, operation must add water cooling when drilling.
Diamond drill bit,diamond wheel,diamond saw blade,water swivel,diamond milling cutter,diamond router bit,glass cucker,glass cutter,glass gloves,diamond polishing wheel etc kinds of glass diamond tools.

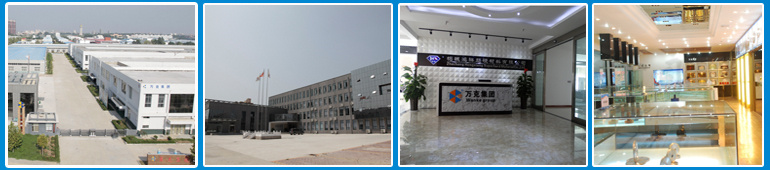

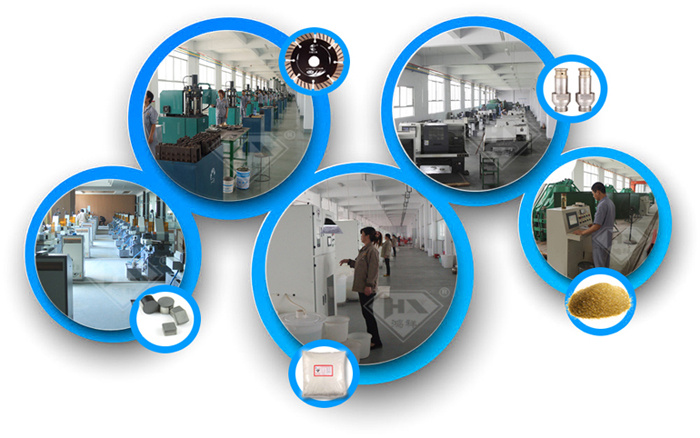

Established in 1990,Zhecheng Hongxiang Superhard Material Co., Ltd is a specialized enterprise that engages in the research, production and sales
of various kinds of synthetic diamond and diamond tool,glass tools,which keep ahead in Chinese market. Our target: Advanced technology is the basis of high-quality products.
