| Prod Model: |
TD-B010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19mm ,25mm Round Tube /Square Tube/ Ellipse Tube |
| Item No: |
Td-B010 |
| Materials: |
Ss202,Ss304,Ss316 |
| Finish(Color): |
Satin ,Mirror |
| Market: |
Global |
| Type: |
Bathroom Shelves |
| Material: |
Stainless Steel |
| Color: |
Chrome |
Product Description
Basic Info.
Model NO.:TD-B010
Usage:Toughened Glass Door
Material:Stainless Steel
Type:Glass Sliding Door ( for single glass door use )
Roller Material:Plastic / PVC
Frame Material:Steel
Name:Glass Sliding Door Roller
Model No.:Interior / Sliding/ Folding/ Swing
Brand Name:ODING/TGTG/ANZHILI
Raw Material:Stainless Steel 201, Stainless Steel 304, Stainlss Steel 316
Style:for Sliding Glass Door /Building /Office/ Constuction / Shower room
Finish:Satin or Mirror
Glass Thickness:8-12mm
Delivery Time:with in 25 Working Days
Original:Guangdong Province,China
Port:Huangpu Guangzhou
Export Markets:Global
Additional Info.
Trademark :ODING/ TGTG/ ANZHILI
Packing:Standard Export Package ( Asbestos Bag+Foam+Inner Boxes+Outer Carton / 5 sets=1 carton )
Origin:China (Mainland)
Production Capacity:5000 Psc/Month
Product Description

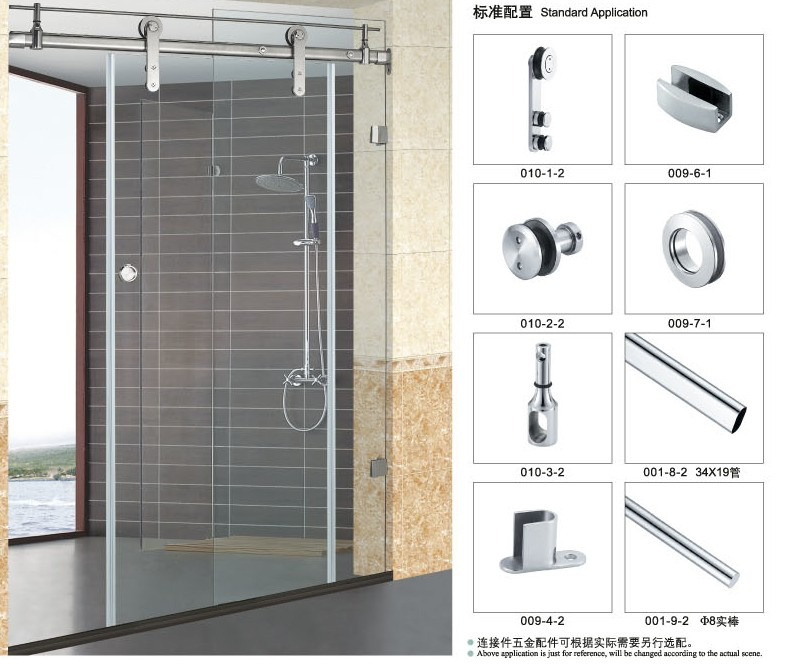

Sliding door
1. Material: Stainless steel
2. Finish: Satin or mirror
3. MOQ: 1 PCS.
4. Maximum: 150kg
Specifications
1.Glass Sliding door accessories in stainless steel
2. Fitting for the tempered glass thickness of 10~12mm
3. Material: 201 sus,304 sus or 316 sus (custom )
4. Finished: Satin or Polish
5. Can offer kinds of floor spring connections
6. OEM and ODM is welcome
7 We can supply customized design as designed
8 MOQ: 1 PCS for each item
9 Competitive quality and price
10 We can supply patch fitting together with floor spring(floor hinge), shower hinge, door handle etc.
11 Payment term: T/T, 30% as deposit, balance should be paid before delivery
12 For more information of our pivot door, pls contact me.
Technological date
Daylight opening Entry width Door width Tube length
910-1010mm 800-900mm 880-980mm 2028mm
1010-1110mm 900-1000mm 980-1080mm 2238mm
1110-1210mm 1000-1100mm 1080-1180mm 2438mm
1210-1310mm 1100-1200mm 1180-1280mm 2638mm
The distance for clamp fixing for track, wall fixing:
1. Weight 80kg: Max-distance between the clamp=1/2 the width of the door;
2. Weight 80kg -120kg: Max-distance between the clamp=1/3 the width of the door;
3. Weight 120kg -150kg: Max-distance between the clamp=1/4 the width of the door;
Quick Details
1. Brand name: ODING, TGTG, ANZHILI
2. Type: For glass sliding door ( Ellipse Tube)
3. Model Number: Sliding door TD-B010
4. Place of origin: Guangdong Province China (Mainland )
5. Payment term: 30% deposit by T/T before production, 70% balance payment before delivery.
6. Port: Huangpu Guangzhou
Packaging & Delivery
1. Packing: Standard export package
2. Delivery Detail: 15-25 day after order deposit
| Item No | 19mm ,25mm Round Tube /Square Tube/ Ellipse Tube |
| Size | TD-B010 |
| Materials | Ss202,Ss304,Ss316 |
| Finish(color) | satin ,mirror |
| Market | Global |
ABOUT DINGGU
As one of the market pioneer, DINGGU offers a comprehensive range of hardware products toward construction and decoration.
Including glass door control systems ( door closer, patch fittings, glass clip, shower hinges) and Handrail systems
As well as safety technology. Pls find out more products on our catalogs and website to know
ADD: No.1,street 1, road 2,chuangyeyuan, jinli town,gaoyao city,guangdong, china.
PC: 526105
