Prod Model: |
KET-MXTA Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Maximum Pressure: |
700 Bar |
Max. Torque: |
1837-48666nm |
Squre Drive Range: |
3/4"-2-1/2" |
Weight: |
2.3-53.3 Kg |
Product Name: |
Good Quality Classic Adjustable Torque Wrench |
Min. Torque Range: |
183-4866nm |
Bolt Size(mm): |
16-36 to 64-115 |
Nut Size(mm): |
24-55 to 95-165 |
Color: |
Customize |
OEM: |
Yes |
Type: |
Torque Wrench |
Material: |
Alloy Steel |
Standard: |
European Type |
Surface Treatment: |
Titanizing |
Feature: |
Anti-Explosion |
Brand: |
Kiet |
Handle Color: |
Customized |
Product Description

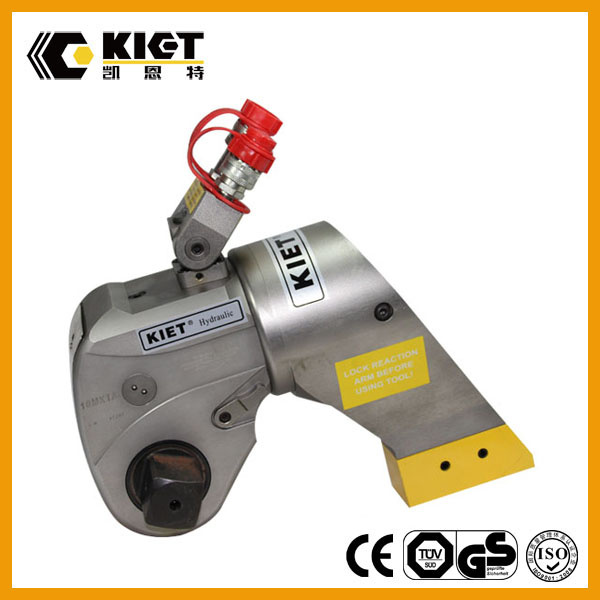

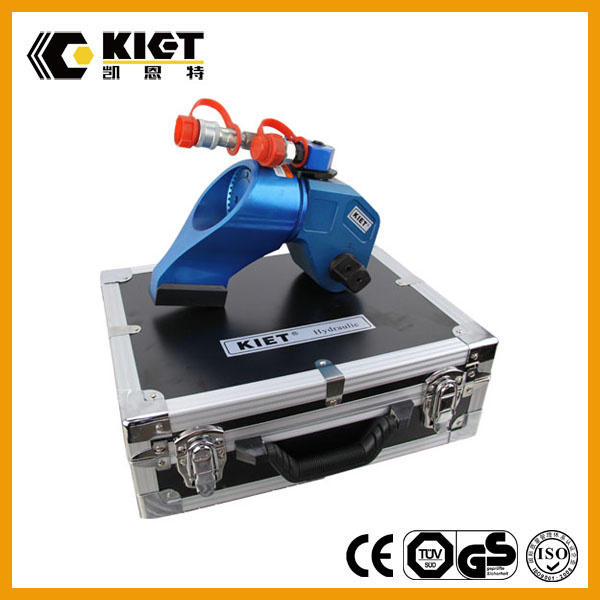

Good Quality Classic Adjustable Torque Wrench
Features: - 360° Reaction Arm to ensure operate in the confined situation.
- Al-Ti alloy material.
- Accurate Torque Output.
- Reactive force in one line to reduce the inner torque abrasion.
- Floating Piston Design.
- Consistent Torque Output.
- Accurate Torque Output.
Parameter:
Model | Torque Value (Nm) | Screw Size (mm) | Bolt Size (mm) | Axle | Working Pressure (Mpa) |
KET-1MXTA | 183-1837 | 16-36 | 24-55 | 3/4" | 70 |
KET-3MXTA | 451-4512 | 22-48 | 34-75 | 1" | 70 |
KET-5MXTA | 752-7528 | 27-56 | 41-85 | 1-1/2" | 70 |
KET-8MXTA | 1078-10780 | 30-64 | 46-95 | 1-1/2" | 70 |
KET-10MXTA | 1551-15516 | 36-72 | 55-105 | 1-1/2" | 70 |
KET-20MXTA | 2666-26664 | 42-90 | 65-110 | 2-1/2" | 70 |
KET-25MXTA | 3472-34725 | 48-100 | 75-145 | 2-1/2" | 70 |
KET-35MXTA | 4866-48666 | 64-115 | 95-165 | 2-1/2" | 70 |
Cooperation Terms
1) Our warranty
We guarantee our product for 1 year and we will also provide 1% free parts.
2) Delivery time: 3-10 days after deposit received.
3) Payment Terms: 30% T/T, Balance before shipment.
4) MOQ: 1 set.
Comapany Introduction:
Jiangsu Canete Machinery Manufacturing Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Certificate
Contact Us
Tel: +86-0523-81569666
Web: http://www.chinakiet.com/EN/
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
