Good Quality DTH Impact Hammer 4 Inch Down-Hole Drilling

Name: Good Quality DTH Impact Hammer 4 Inch Down-Hole Drilling
Brand: tool-buy.com
SKU: 823822045
Availability: InStock
Rating: 4.8 (25 reviews)

Price:	US $ 580-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Putian Qideli Drilling Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	DHD, COP, MISSION, MACH, XL, QL, SD
Formation:	Soft-Hard Formation
Advantage:	Ore Mining, Coal Mining, Well Drilling
Application:	Rock Drilling, Core Mining, Well Drilling
Color:	Blue, Golden, Black, Red, Customize
Usage:	Small Hole Drilling, Gas Deep Hole Drilling, Boreh
Name:	Good Quality DTH Impact Hammer 3 Inch Down-Hole Dr

Product Description

QIDELI is an engineering company in mining and rock excavation.

We offer THE COMPLETE SOLUTION including drill bits, DTH hammer, drill rods, shank adapters, accessories and added value services.
We offer top hammer equipment for every application, such as underground mining and quarries, road and construction.
We've been involved in the mining industry for 20 years. We look for excellent performance in our products and service.
We provide good quality and better price, that means excellent hole quality and low-cost drilling for you.

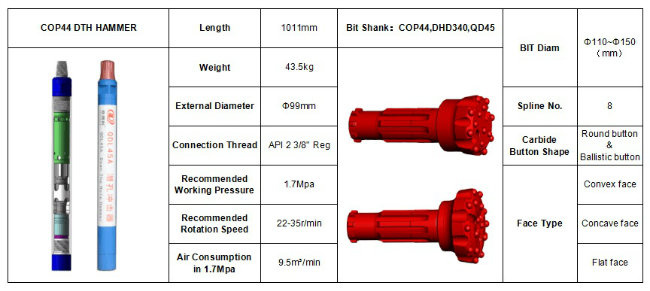

DOWN THE HOLE DTH HAMMER SPECIFICATION:

Description	Thread connection	Outside diam. (mm)	Rec. Hole size (mm)	Working pressure (bar)	Length without bit (mm)
BR1	RD40 BOX	54	65-76	7-17.5	760
BR2	RD50 BOX	62	70-90	7-17.5	880
BR3	API 2 3/8" REG PIN	82	90-110	7-17.6	889
COP34	API 2 3/8" REG PIN	81	90-110	10-25	994
DHD3.5	API 2 3/8" REG PIN	81	90-110	10-25	994
DHD340	API 2 3/8" REG PIN	99	110-135	10-25	1114
COP44	API 2 3/8" REG PIN	99	110-135	10-25	1114
DHD350R	API 2 3/8" REG PIN	125	135-155	10-25	1260
COP54	API 2 3/8" REG PIN	125	135-155	10-25	1260
DHD350C	API 2 3/8" REG PIN	125	135-155	10-25	1260
COP55C	API 2 3/8" REG PIN	125	135-155	10-25	1260
DHD360	API 2 3/8" REG PIN	142	155-190	10-25	1260
COP64	API 2 3/8" REG PIN	142	155-190	10-25	1260
DHD380	API 4 1/2" REG PIN	180	195-254	10-25	1492
COP84	API 4 1/2" REG PIN	180	195-254	10-25	1492
DHD1120	API 6 5/8" REG PIN	275	305-445	10-25	1900
SD4	API 2 3/8" REG PIN	99	110-135	10-25	1084
SD5	API 3 1/2" REG PIN	125	135-155	10-25	1175
SD6	API 3 1/2" REG PIN	142	155-190	10-25	1261
SD8	API 4 1/2" REG PIN	180	195-254	10-25	1463
SD10	API 4 1/2" REG PIN	226	254-311	10-25	1502
SD12	API 6 5/8" REG PIN	275	305-445	10-25	1880
QL40	API 2 3/8" REG PIN	99	110-135	10-25	1097
QL50	API 3 1/2" REG PIN	125	135-155	10-25	1156
QL60	API 3 1/2" REG PIN	146	155-190	10-25	1212
QL80	API 4 1/2" REG PIN	180	195-254	10-25	1465
NUMA100	API 6 5/8" REG PIN	226	254-311	10-25	1510
NUMA120	API 6 5/8" REG PIN	275	305-445	10-25	1990
NUMA125	API 6 5/8" REG PIN	275	305-445	10-25	1990

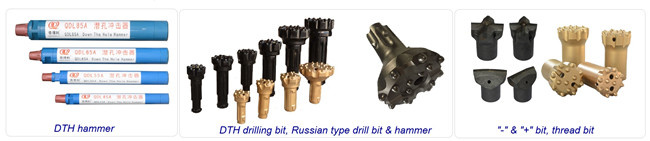

OUR MAIN PRODUCTS

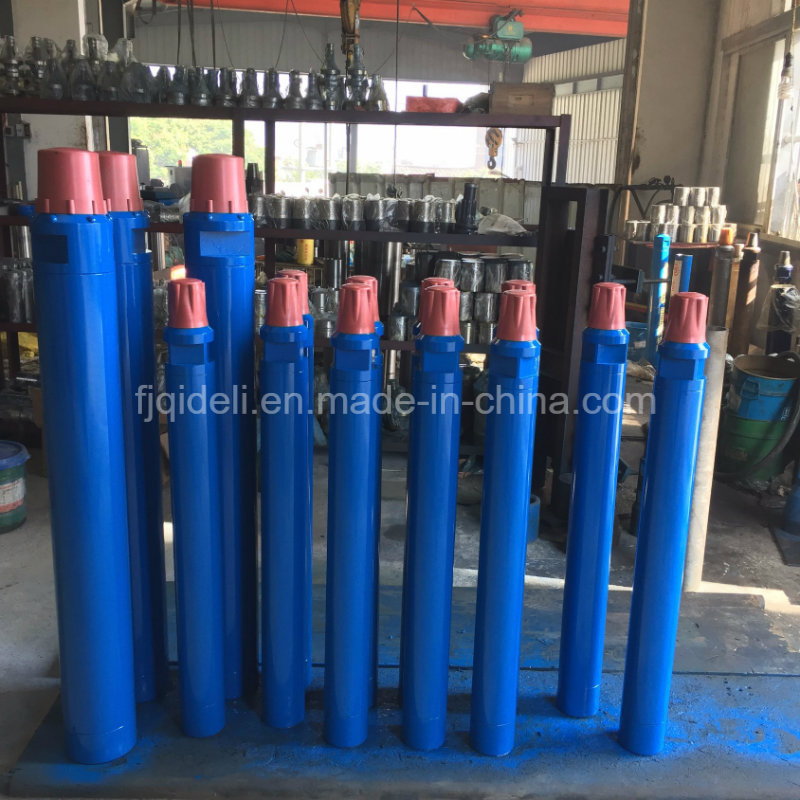

DTH hammer:
3'' DTH hammer: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH (down-the-hole) hammer: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH (down-the-hole) hammer: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH (down-the-hole) hammer: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH (down-the-hole) hammer: DHD380, QL80, SD8, MISSION80

DTH hammer bits:
3" DTH hammer bits (90-105mm), shanks: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH hammer bits (105-130mm), shanks: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH hammer bits (130-152mm), shanks: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH hammer bits (152-171mm), shanks: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH hammer bits (200-305mm), shanks: DHD380, QL80, SD8, MISSION80

DTH rod range:
Drill rods diameter range: 76mm, 89mm, 102mm, 114mm, 127mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm, 7620mm, 8100mm, 9140mm, 10670mm
Thread: API IF2 3/8", API REG2 3/8", API IF2 7/8", API REG2 7/8", API IF3 1/2", API REG3 1/2"

DELIVERY
- We can delivery in 2-3 days if we have products in stock, special design and customize products need 15-20 days.
- We can delivery according to customers' requirement, by sea, by air or express. We have long cooperation with DHL, TNT, EMS, UPS, FEDEX.

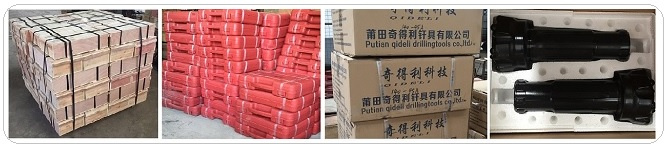

- Standard export packing. Wooden boxes, plastic boxes, carton packing, all with anti-collision foam.

OEM SERVICE

As original equipment manufacture, drilling tools from QIDELI meets the highest engineering standards in order to be productive in the toughest working environments.
We are continuously improving our service offering to meet the market demand. Please contact with us to find out which model is available on your market.

HONOR

1. SGS field certification manufacture.
2. Directory membership unit of national industry association.
3. Having multiple design patent.

For more information please contact:

Sophie Cheng, Sales manager, QIDELI engineering equipment Dept.
Cell: +8618760510520

Putian Qideli drilling tools Company was founded in 2010, is specialized in the production and operation of mining drilling tools, research and development-oriented enterprises. 20 years, the production of chisel-bits, cross-bits, button bits, thread bits, PDC bits high and low air pressure DTH bits, DTH hammer, drill rods, etc, are widely used in energy, metallurgy, geology, coal, water conservancy, chemical industry and the mining, road construction, has been unanimously endorsed by the majority of users. Basing on our complete product and excellent quality, We have a certain domestic markets, also export to Russia, Japan, Southeast Asia and other regions alsowhile.

Where there is a will, there is a way. Putian Qideli drilling Tools Company diligently and wholeheartedly committed to drilling tools for mining research and development, with so many years learning of drilling tools for mining, and had attracted many of the domestic first-class drilling technology experts and experienced engineers to work for company, constant Close to the market, in-depth customer technology-LED, market-oriented, the market potential demand for the direction of development, actively planning an enterprise development strategy, focusing on product innovation and grasp the credit markets and technology to enhance the credibility of business products and services, constantly to enhance the core competitiveness of enterprises, in order to enhance the comprehensive advantages of products in the market.

"Continues to provide you with better products", which is the macro Dag keep business purposes, we sill make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers.

Putian Qideli drilling tools company is authorizes the registration by the National Related Department the enterprise. Depends on a abundant fund strength, reasonable prices, excellent service, we establish long-term cooperative relationship with lots of enterprises. We are sincerely welcome your visit, investigate, and do business.

In March this year my company has registered a trading company in xiamen China: Xiamen Atlas trading Co., Ltd., this company will be a full range of services in foreign trading. The full import and export qualification for foreign customers with the convenience about import and export of products and services.
