| Prod Model: |
HZ-DWS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Type: |
Marble, Granite |
| Coating: |
Rubber/Spring |
| Beads/Meter: |
37PCS/40PCS |
| Manufacturing Art: |
Sintered, Electroplated, Vacuum Brazed |
| Delivery Date: |
10 Days After Payment |
Product Description

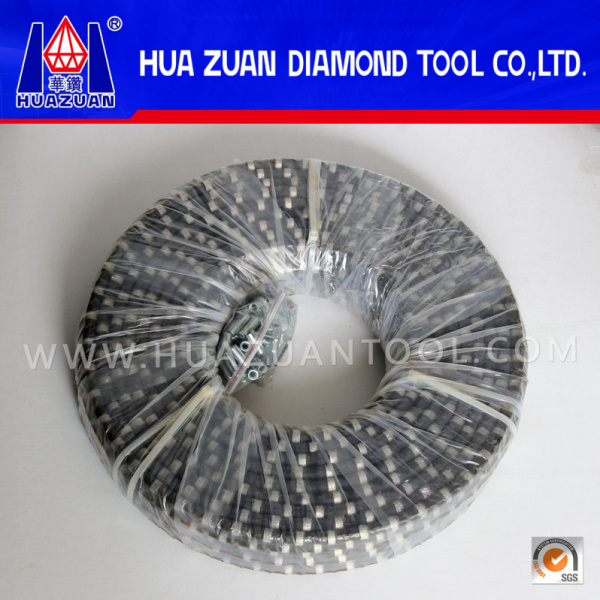

Grade a Quarry Diamond Wire Saw for Marble Granite
The use of diamond wire saw for granite,quarrying reduces the waste of quarry resource,no dust,block regular,high output and working efficiency.
Wire Application
Granite quarrying
Sandstone quarrying
Granite raw block squaring
Wire Specifications
| Bead Diameter(mm) | Bead/meter | Application | Coating |
| 11.5 | 40 | Granite quarry
Granite raw block | Rubber |
| 37 |
| 11.0 | 40 |
| 37 |
Parameters
| Application | Wire Speed(m/s) | Cutting Speed(m2/h) | Life(m2/m) |
| Soft granite | 30-35 | 15-30 | 20-35 |
| Medium hard granite | 25-30 | 10-25 | 20-30 |
| Hard granite | 20-25 | 3-10 | 7-15 |
| Sandstone | 25-30 | 4-8 | 8-10 |
Bead Specification
| Bead Diameter(mm) | Working Layer Height(mm) | Support Length(mm) | Bead Type |
| 11.5 | H6.4 | 11.0 | Sintered |
| 11.0 | H6.4 | 11.0 | Sintered |
For granite quarry we recommend rubber wire,this can protect the wire rope very well and increase the wire's strength.
There is no doubt that the appearance of diamond wires quarrying technique is a revolution for stone mining.This technique has following advantages in mining:improve the quarrying efficiency,work safety and protect environment well.High performance brings good sized blocks without inner breaks,and can exploit large dimension blocks with low quarry cost.
1.We can provide different support design and sizes beads according to the stone types.
2.We have independently developed the special rubber and vulcanized technique to ensure that the diamond wire can work in all sorts of bad environment.
Suggestion:
Advantage of rubber wire used in granite quarrying:The rubber and cable sticking together tightly makes good bonding,and this can be more strikes during the work.The rubber has good temperature resistance,and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem,and even can be used for smaller curvature radius.Normally wire saw machines with 37-75kw are used in granite quarrying,according to the size of cutting area,water supply can be controlled with 25-50L/min.
DIAMOND WIRE SAW FOR MARBLE QUARRY
Wire Application
Marble quarrying
Marble block squaring.
Marble quarry dry cutting
Features
Efficiency cutting marble quarry and raw block.
Environment friendly and with low cost but high output.
Wire Specifications
| Bead Diameter(mm) | Bead/meter | Application | Coating |
| 11.5 | 28 | Marble quarry
Row block | Spring |
| 11.0 | 28 |
| 11.0 | 40 | Rubber |
| 10.5 | 40 |
Parameters
| Application | Wire Speed(m/s) | Cutting Speed(m2/h) | Life(m2/m) |
| Soft marble | 30-35 | 8-12 | 30-60 |
| Medium hard marble | 28-30 | 6-8 | 20-25 |
| Hard marble | 25-28 | 3-6 | 15-20 |
| Dry cutting marble | 20-25 | 3-5 | 10-15 |
Bead Specification
| Bead Diameter(mm) | Working Layer Height(mm) | Support Length(mm) | Bead type |
| 11.5 | H6.0,H5.8 | 10.5,10.0 | Sintered |
| 11.0 | H6.0,H5.8 | 10.5 | Sintered |
| 10.5 | H6.0,H5.8 | 10.5 | Sintered |
| 10.5 | H6.2 | 10.0 | Electroplated double layer diamond |
