| Price: | US $ 31000-36000Set |
|---|---|
| Min Order: | 1Set |
| Pay Type: | T/T |
| Prod Model: | CNC-2000 |
|---|---|
| Warranty: | 12 Months |
| Wire Length: | 14.4m |
| Worktable Rotating(Optional): | 360° |
| Max Processing Size: | 3000X2000X1500mm |
| Dimension Of Worktable: | 2500X1300mm |
| Water Consumption: | 4m3/H |
| Main Motor: | 7.5kw |
| Weight: | 5000kg |
| Condition: | New |
| Type: | CNC Cutting Machine |
| Usage: | Marble |
| Application: | Stone Industry |
| Source Voltage: | 380V |
| Automation: | Automatic |

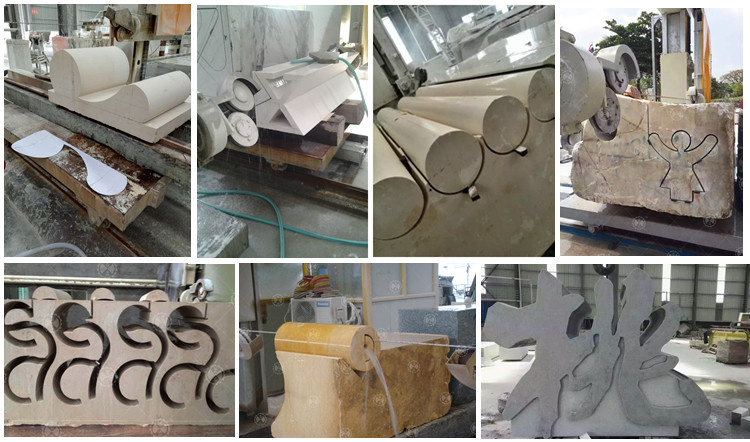

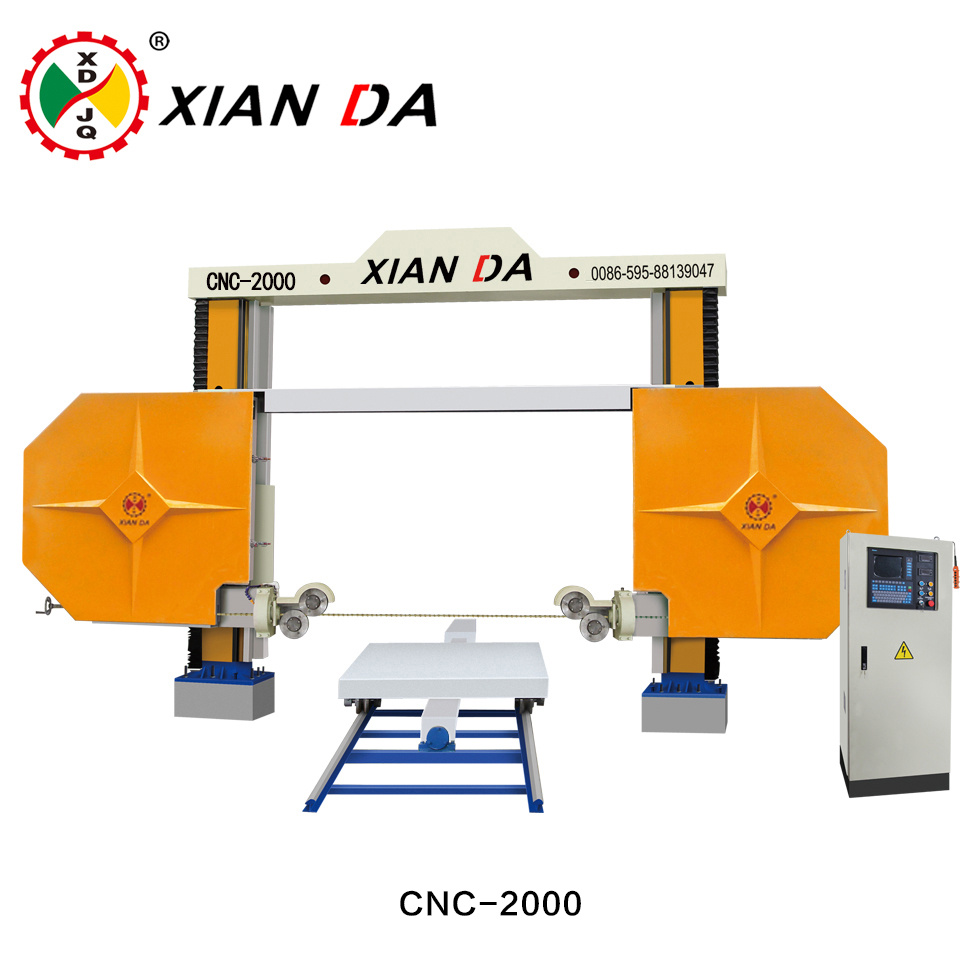

CNC-2000-2500-3000 adopts CNC control, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm and memory function if wire broken, on top of it.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
| ITEM NO. | CNC-2000 | CNC-2500 | CNC-3000 |
| Max processing size | 3000x2000x1500mm | 3000x2500x1500mm | 3000x3000x1500mm |
| Dimension of worktable | 2500x1300mm | 2500x1300mm | 2500x1300mm |
| Main Motor | 7.5kw | 7.5kw | 7.5kw |
| Water consuption | 4m³/h | 4m³/h | 4m³/h |
| Outline dimension | 6500X6300X3800mm | 7000X6300X3800mm | 7500X6300X3800mm |
| Gross weight | 5000kgs | 5500kgs | 6000kg |

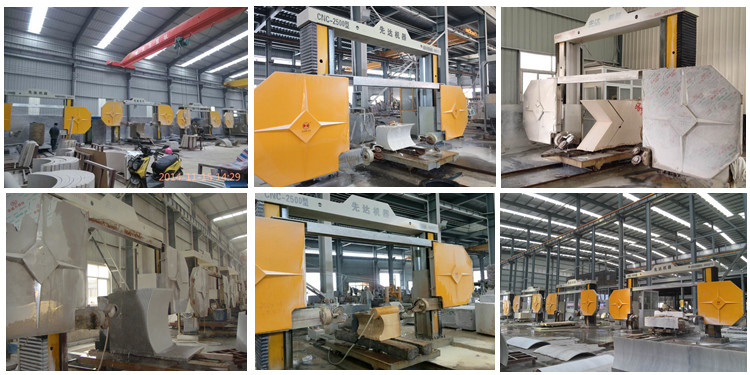

Diamond Wire Saw Machine Working in Chinese Factory

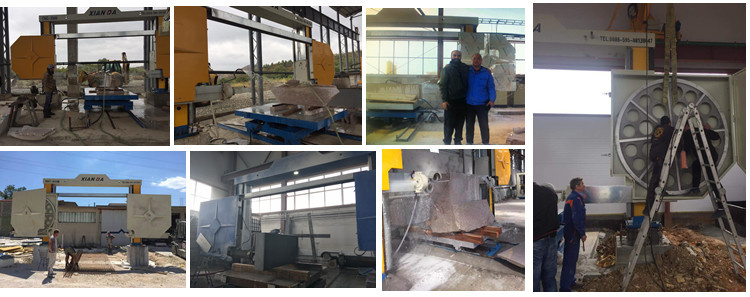

Diamond Wire Saw Machine Working in Overseas Factory
We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
