| Prod Model: |
30x3.0x10x48T, 63x2.0x16x80T, 63x3.0x16x80T |
| Size: |
30X3.0X10X48t, 63X2.0X16X80t, 63X3.0X16X80t |
| Grade: |
Yl10.2, Yg15, Yg15X, Ys2t, Yg6X |
| Tolerance: |
Finish Grind, Mirror Polish |
| Performance Grade: |
Top, Middle |
| Color Type: |
Gray |
| Quality: |
Top Quality in China |
| Raw Material: |
100% |
| Shipment: |
FedEx,DHL,TNT,UPS,EMS,etc. |
| Surface: |
Ground or Unground |
| Delivery Time: |
5 ~ 15 Days |
| Type: |
Circular Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Certification: |
SGS |
Product Description

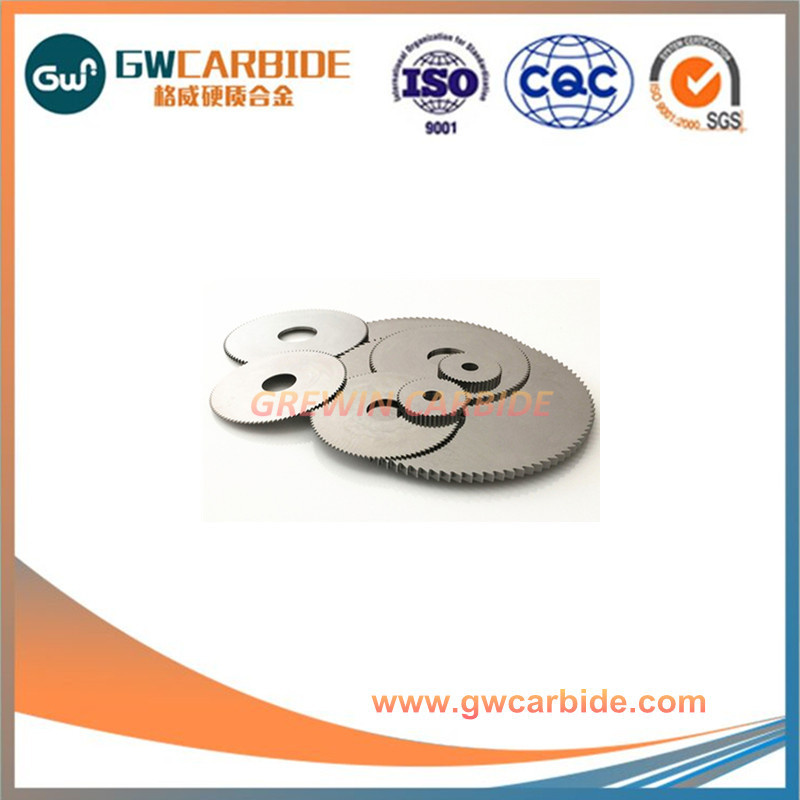

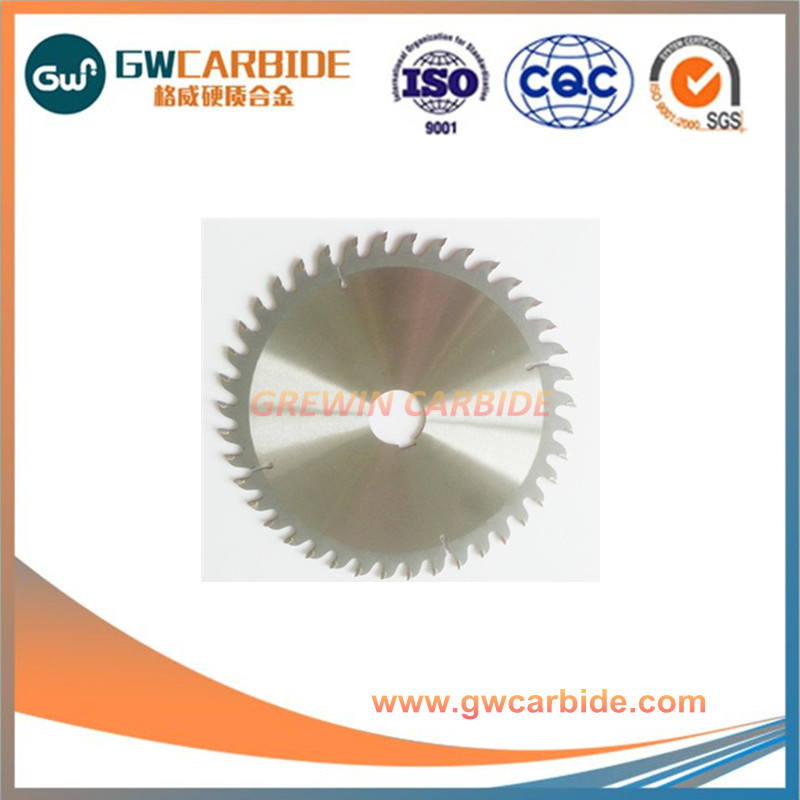

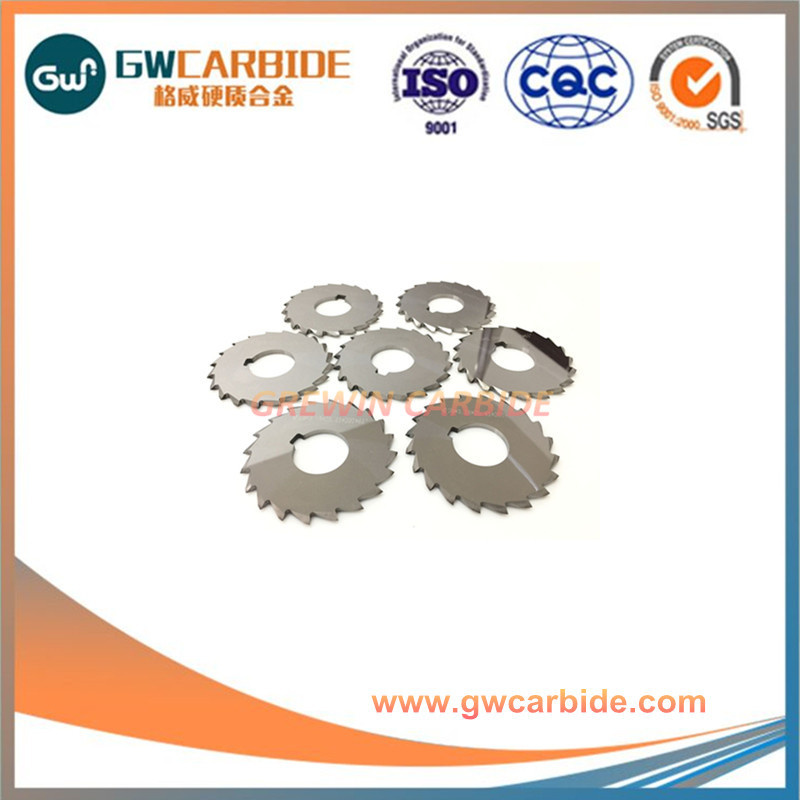

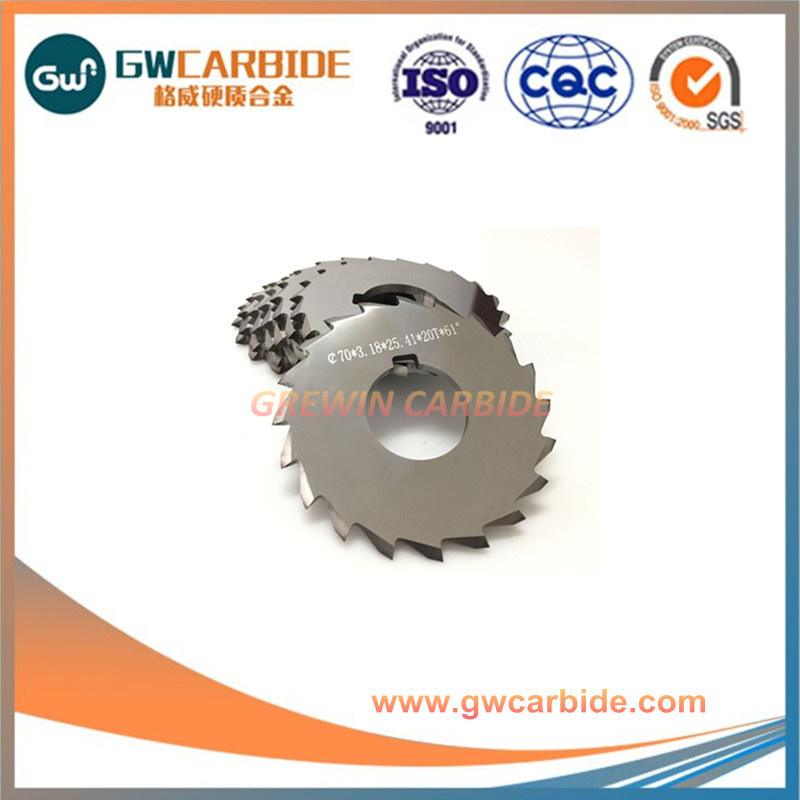

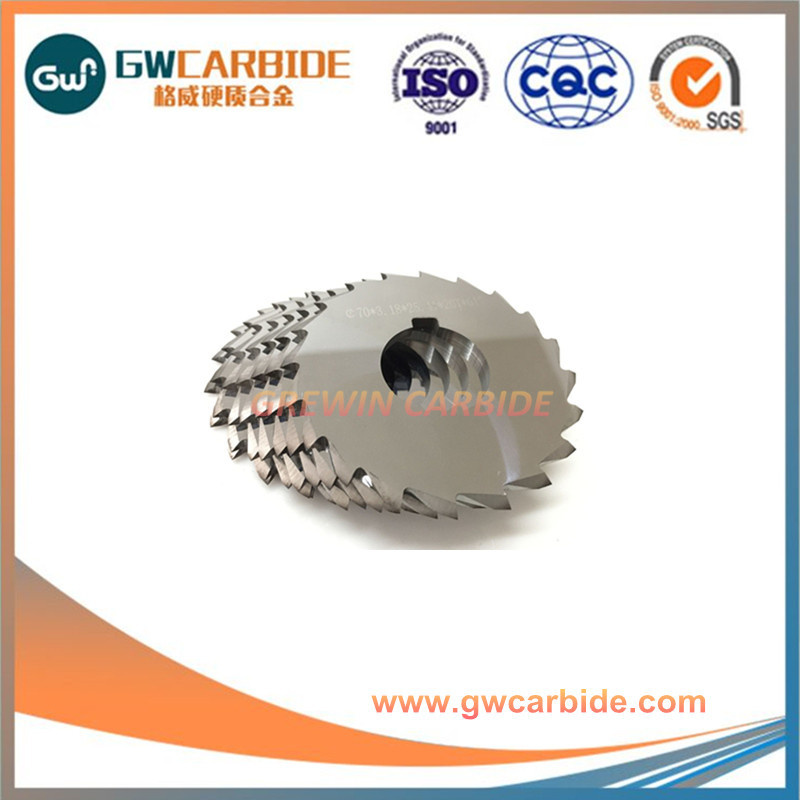

High precision tungsten carbide saw blade
1. Our advantage
1 High quality, supper sharp + smooth cutting + long working life
2 100% raw material, HIP-Sintered
3 CNC grinding for teeth, with high precision
4 Various grades for different kinds of cutting material
5 Strict quality control, complete test equipments
6 Competitive price
7 Good after sale service
2. Sizes
| External Dia. (mm) | Internal Dia. (mm) | Thickness (mm) | Teeth |
| 110 | 16 | 1.0~7.0 | 10T |
| 150 | 20 | 1.0~7.0 | 24T |
| 180 | 25.4 | 1.0~7.0 | 30T |
| 185 | 30 | 1.0~7.0 | 36T |
| 230 | 35 | 3.0~4.5 | 40T |
| 235 | 40 | 3.0~4.5 | 48T |
| 250 | 50 | 3.0~4.5 | 60T |
| 255 | 80 | 3.0~4.5 | 72T |
3. Grade Recommendation | Grade | ISO | Density g/m 3 | Hardness HRA | Bending strength | Performance & Application |
| YG6 | K10 | 14.9 | 89.5 | 2150 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG8 | K30 | 14.6 | 89 | 2320 |
| YS2T | M10 | 14.45 | 92.5 | 2800 | Suitable for the finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YN8 | | 14.6 | 88.5 | 1710 | Wear corrosion resistance&abrasion, especially used in hyperbaric environment. |
| YN9 | | 14.6 | 89 | 1750 |
