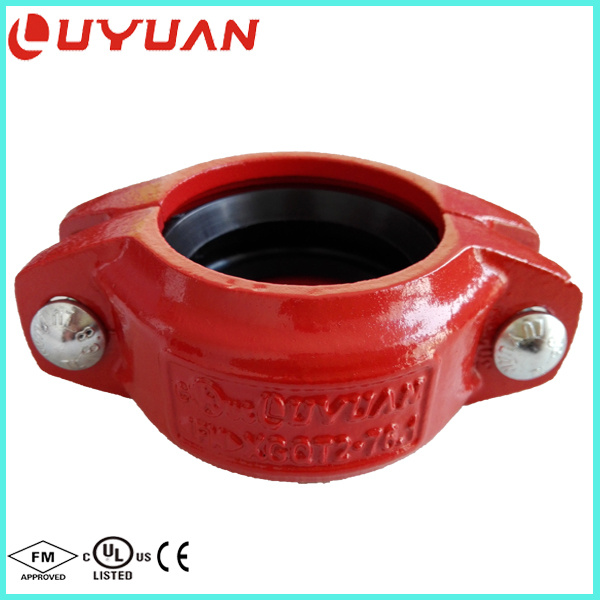

Grooved Pipe Clamp with 4 " EPDM Gasket
| Price: |
US $ 0.5-8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
XGQT1 |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East,Western Europe |
| Size: |
8'' |
| Conforms To: |
ASTM A536 |
| Color: |
Non-Lead Orange Paint |
| Approval: |
UL Listed, FM Approved |
| Construction: |
Ductile Iron |
| Flexible Or Rigid: |
Rigid |
| Standard: |
Standard |
| Connection: |
Grooved |
| Material: |
Ductile Iron |
Product Description

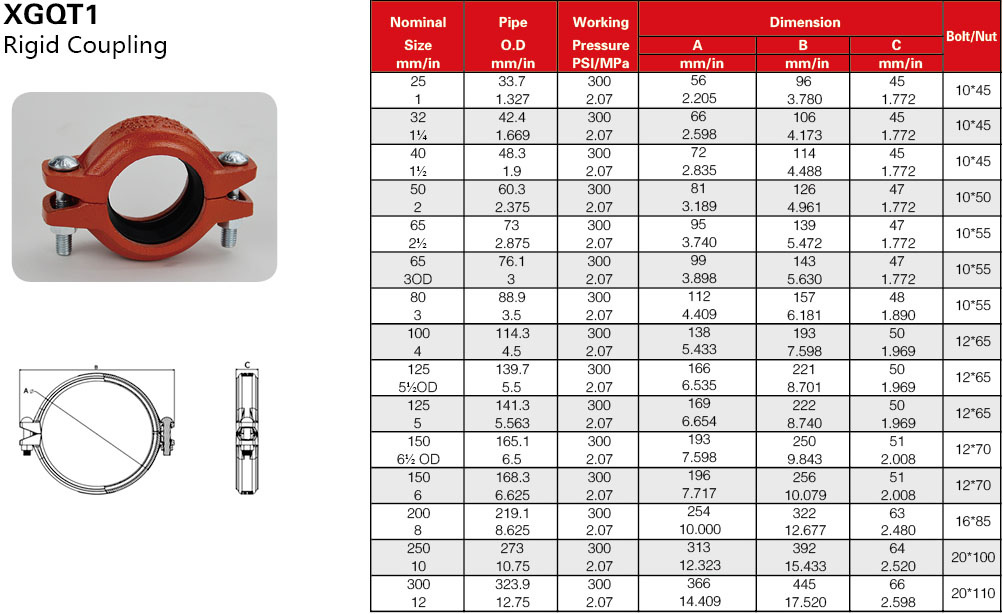

| Product Name | Ductile iron grooved rigid coupling |
| Product series | 1)Rigid coupling, Flexible coupling,Reducing flexible coupling,Shoulder flexible coupling,Angle pad coupling,Heavy duty flexible coupling,Boltless coupling |
| 2)Grooved equal tee, Reducing tee,Mechanical tee |
| 3)90 degree elbow, 45 degree elbow, 22.5 degree elbow, 11.25 degree elbow |
| 4)Grooved equal cross |
| 5)Grooved or Thread concentric reducer and eccentric reducer |
| 6)Grooved flange coupling and flange adaptor |
| 7)Cap end |
| Brand | Luyuan |
| Certification | FM/UL/CE/CCC/ISO |
| Size | 1-10 inch |
| Material | Ductile iron ASTM A536 |
| Technics | Casting |
| Working pressure | 300Psi/2.07Mpa |
| Surface finish | Epoxy powder,Paint,Galvanized |
| Color | Red-Ral3000,Orange,Galvanized Color |
| Gasket | EPDM |
| Packing | 1)Carton box,Plywood pallet with plastic film |
| 2)Wood case |
| 3)As per cutomer's requirement |
| Delivery Time | 30 days after receiving deposit payment |
| Payment terms | T/T or L/C at sight |
| Application | 1)Automatic sprinkler system for fire protection on commercial,civil and munisipal constructions like water supplying,gas supplying,heat supplying,etc. |
| 2)Industrial pipeline system on shipping, mine, oil field, textile,powder plant,etc. |
| 3)Pipeline system on subway station,railway station,airport,seaport,bridge,etc. |
Bolts and Nuts
Heat treated and electro galvanized bolts with oval neck, and heavy duty hexagon nuts.
Track head meet to the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183.

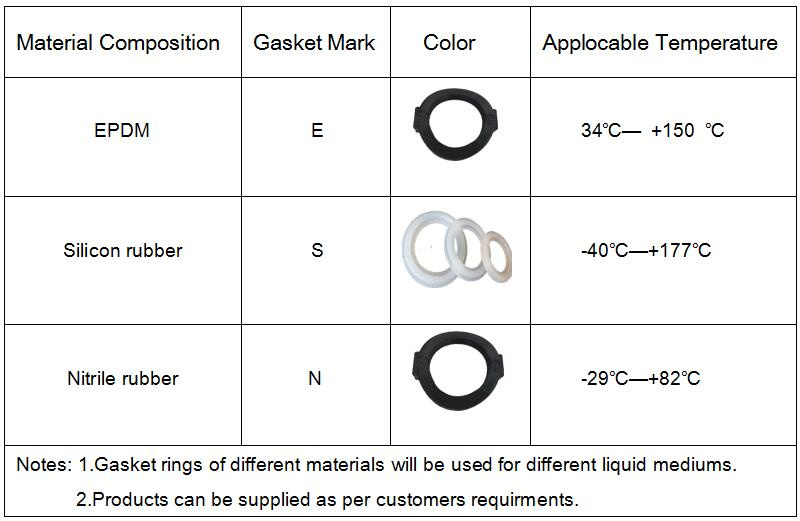

Rubber Gasket
FAQ
1.What is your MOQ?
Our MOQ is usually 1 Pallet
2.What is your delievery time?
The time of delievery is about 30 days.
3.What is the shipping port?We ship the goods by Qingdao port.
4.What is your payment terms?
We accept 30% T/T in advance,70% payment before shipment or 100% L/C at sight.
5.What is the location of your company?
Our company is located in the Weifang city,Shandong Province,China.
6.How about the samples?
We could send you the samples but transport fee be paid by you pls.
Weifang xinshun casting co.,Ltd,is a professional manufacture of groovedpipe fittings with over 12 years experience.All products have FMUL CE ceritifications.Currently products have been exported to more than 20 countries,like America,Canada,Mexico,Chile,Peru,Brazil,Columbia,Australia,Italy,
Romania,Dubai,Saudi Araba,South Africa,Bangladesh,etc.

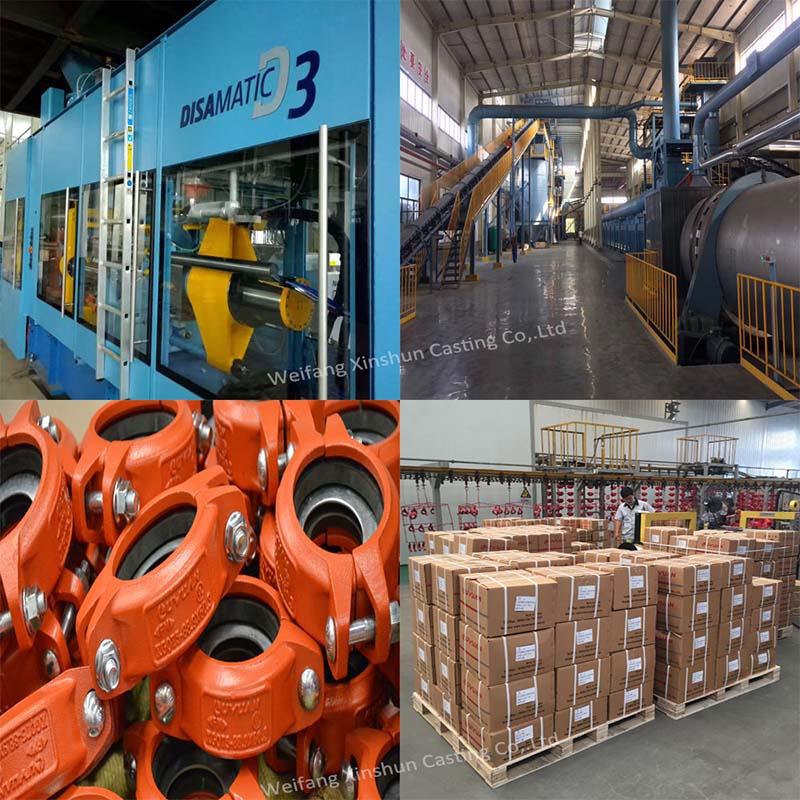

There are two automatcic casting line in our factory,one is DISA D 3 Series casting line ,Its the first advance casting machine in China now,we purchase this high-technology machine from DENMARK.It could reach no environment pollution standard and need less workers to operate during the process flows.Which produce products with higher and more stable quality.Besides,our factory have CNC lathe machine,Modeling machine center,Automatic coating and packaging line.
Choose us pls,we believe could to be your good partner!
Exhibitions(NFPA USA,INTERSEC DUBAI)and Customers visiting our factoryWe sincerely welcome you to visit our factory,any further question,feel free to contact us pls.
Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.
Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.
Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.

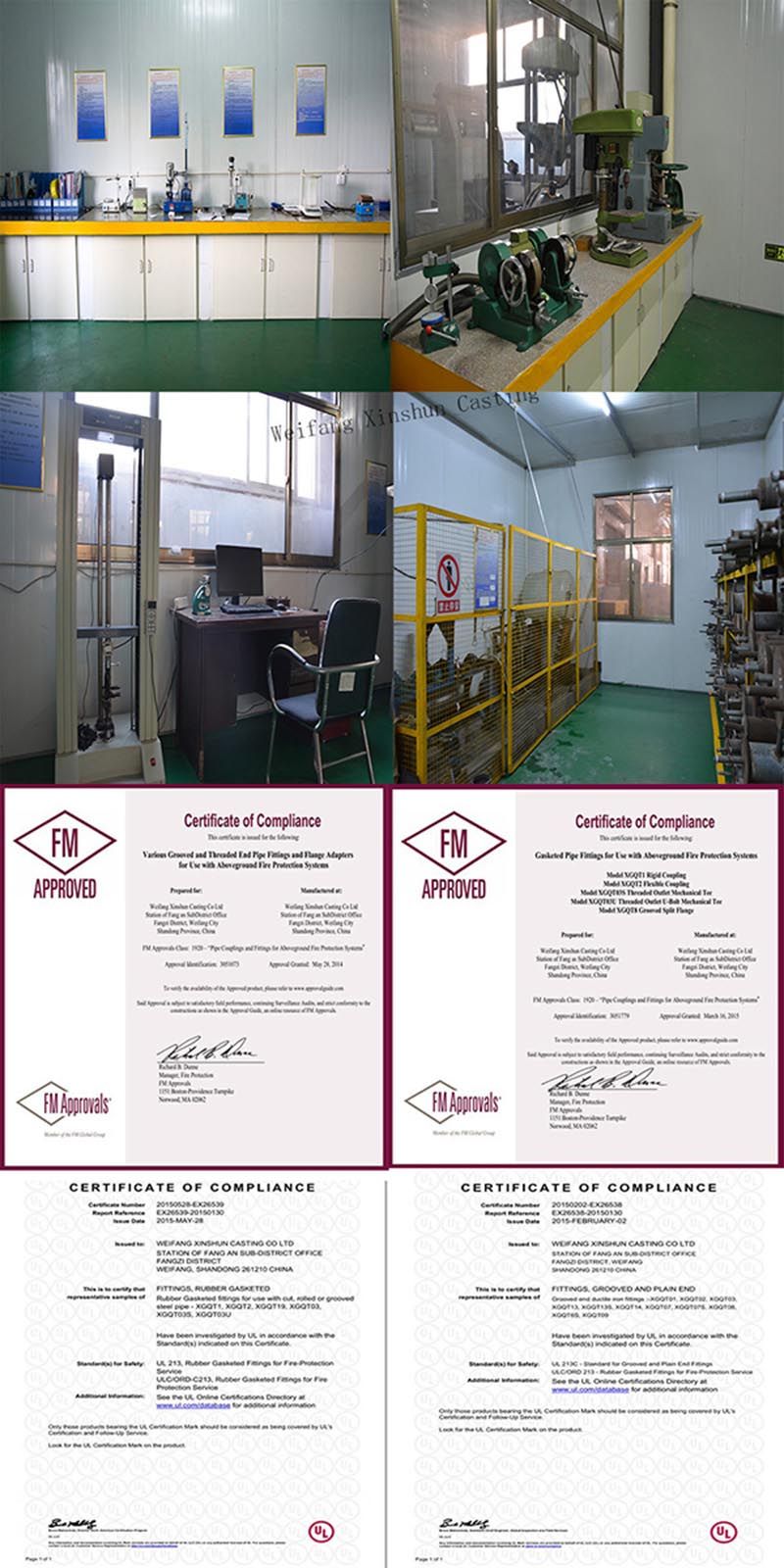

There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.
With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
