GS-Lftp6015 Tube Laser Cutting Machine & CNC Laser Cutter
| Price: |
US $ 3000-150000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GS-LFTP6015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |
Product Description
GS-LFTP6015 Tube Laser Cutting Machine & CNC Laser Cutter
Laser cutting advantages over other thermal cutting methods
1. The cutting quality is good:
Because of the small laser spot, high energy density, fast cutting speed, laser cutting can therefore get better cutting quality.
(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.
(2) Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
(3) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.
2. Highly automation:
Adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.
3. High cutting efficiency:
Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting.
4. Fast cutting speed:
The cutting speed can be up to 600 cm/min when using 1200W laser to cut 2mm low carbon steel plate, and can up to 120 m/min when cutting 5mm polypropylene resin plate. Material does not need clamping fixed for cutting, thus can save the jig and auxiliary time for material upload and download.
5. Non-contact cutting:
There is no contact for work piece and laser head, so there is no tool wear. No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.
6. Variety cutting material:
Compared with oxyacetylene cutting and plasma cutting, laser can cut many kinds of materials, including metal, nonmetal, metal and nonmetal based composite material, leather, wood, fiber, etc. But for different material, it shows different laser cutting adaptability due to its thermal physical properties and different laser absorption rate.
Tube Laser Cutting Machine & CNC Laser Cutter Parameters | Model | GS-LFTP6015 |
| Output power of laser source | 500W/1000W |
| Cutting area (L*W) | 6000mm × 1500mm |
| Max tube diameter | 300mm |
| Max tube processing length | 6m |
| Max tube cutting thickness | 5mm |
| X axle stroke | 6048 mm |
| Y axle stroke | 2300 mm |
| Z axle stroke | 100 mm |
| Cooling | water cooling |
| Max accelerated speed of X, Y axles | 1G |
| Kerf Width | 0.1~0.3 mm |
| Positioning accuracy of X, Y and Z axles | ±0.05 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Processing precision of work piece | ±0.1 mm |
| Kerf harshness | Ra 3.2-12.5 μm |
| Voltage | 380V,50/60Hz |
| Continuous working time | 24 Hours |
| Max bearing weight of working platform | 600Kgs |
| Total installed capacity | 20-25 KVA |
| Total protection level of power supply | IP54 |
Advantage of Fiber Laser Cutting Machine | Model of Laser Source | Fiber | CO2 | Disc |
| Electro-optical Conversion Efficiency | 30% | 10% | 15% |
| Max. Output | 50Kw | 20Kw | 8Kw |
| BPP(4/5Kw) | <2.5 | 6 | 8 |
| Life of Diode Pumped | >100,000 | NA. | 10,000 |
| Occupied Area(4/5Kw) | <1M2 | 3M2 | >4M2 |
| Maintenance | no need | need | Often |
| Soft Processing | more suitable | unsuitable | suitable |
| Stability | best | good | good |
| Absorption rate%--steel | 35 | 12 | 35 |
| Absorption rate%--aluminum | 7 | 2 | 7 |
| Replaced Parts | High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other. | Laser work requires gas
supplement, reflection lens replacement.
| Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000. |
Coaxial auxiliary gas system
The gas control valve is installed inside the gas source cabinet and gas route system. Automatic switch by electric control and high-low pressure control valve with manual adjustment. Three kinds of working gas are provided in the gas route system (O2,N2,compressed air). The working gas is used for cutting for different kinds of material, O2 is used of cutting of black metal and others, N2 is used for SS cutting, the cutting surface is without Oxidation edge. The compressed air is used for the power of pneumatic component.
Laser Indication system
The fiber laser cutter equip with laser indication system(red light indication) to help operator to verify the position on the cutting board of the cutting head. Semi-conductor red wavelength (638nm).

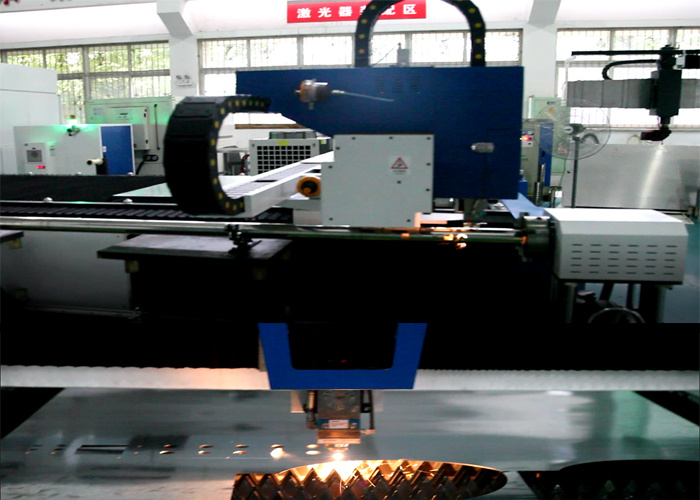

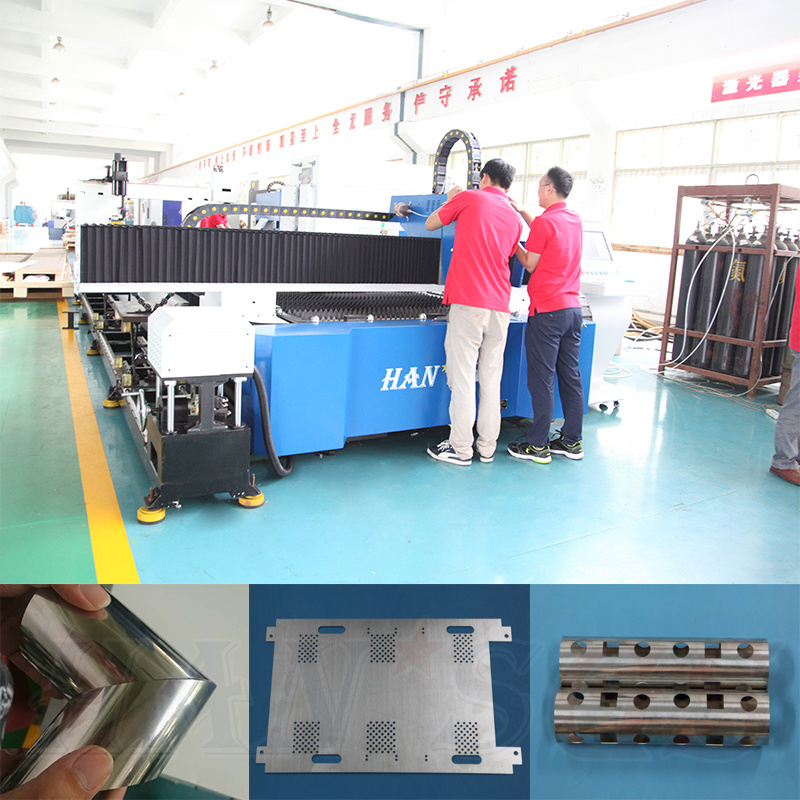

Product Highlights

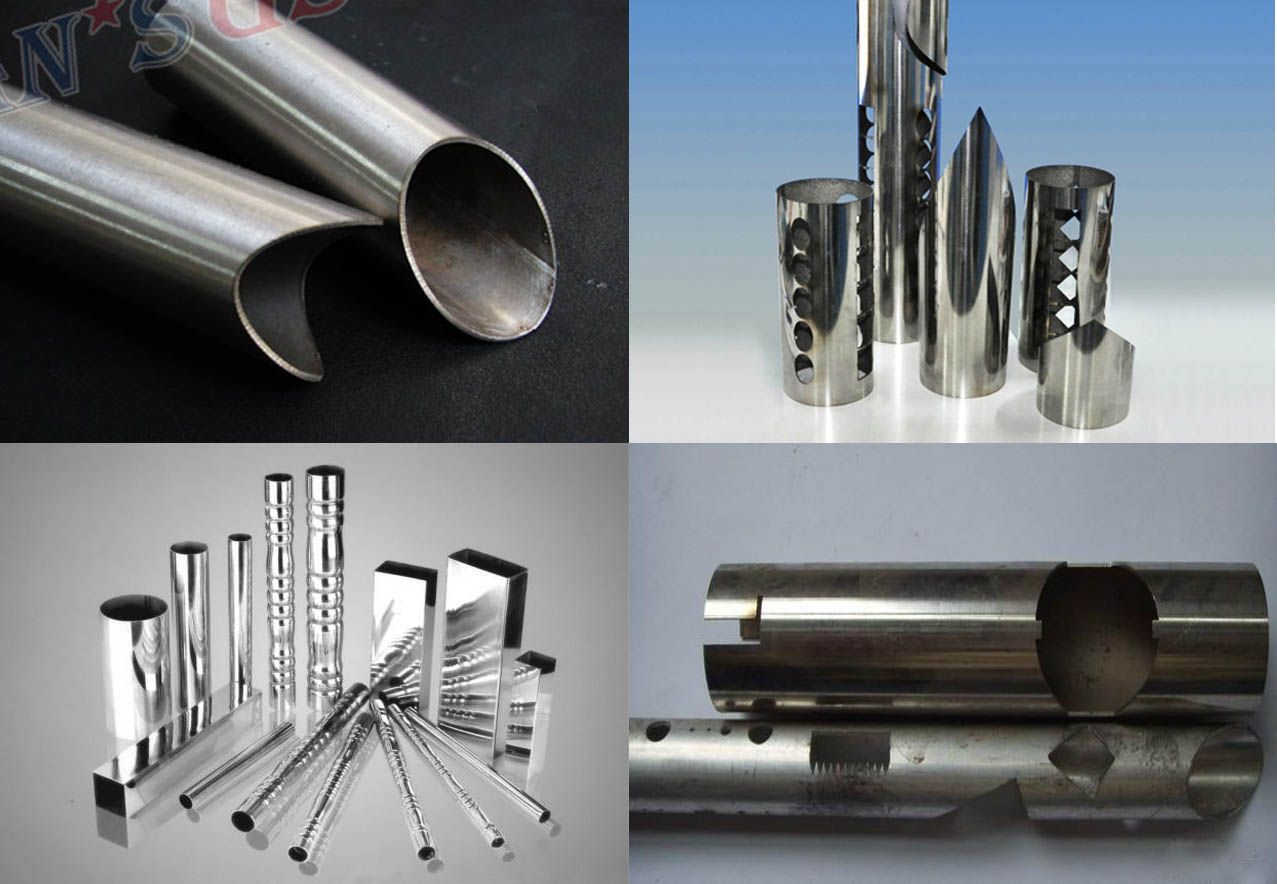

Cutting Machine Sample
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
