Hand Held Yn27j Gasoline Rock Drill for Breaking
Price: |
US $ 495-500/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Prod Model: |
YN27J |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Diamond Grinding Cup |
Button Shape: |
Spherical / Ballistic Buttons |
Condition: |
100% New |
Color: |
Black, Blue |
Use: |
Tungsten Carbide Button Grinding |
Application: |
Stone Quarrying/Mining Drilling Tools Maintainance |
Type: |
Grinding Cup |
Handle Material: |
Steel |
Product Description

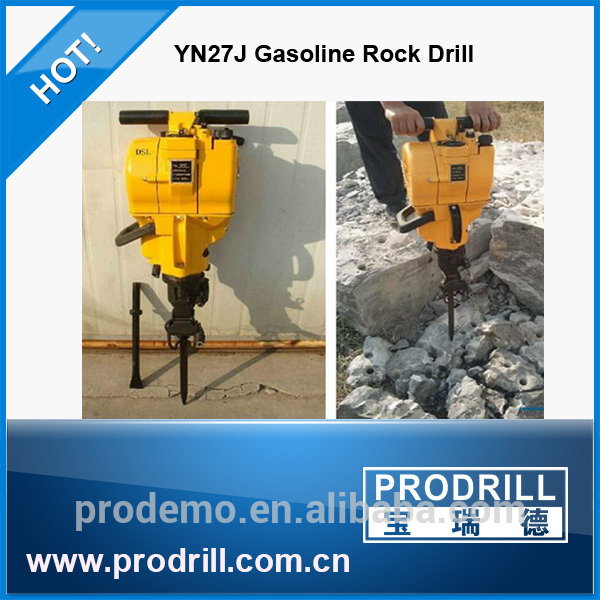

Prodrill Equipment manufacturing the Rock drill with Hand Held Rock Drills, Air Leg Rock Drills, Mobile Rock drills and Gasoline Rock Drills.The Internal Combustion Rock Drill Type YN27J is a very efficient machine with the characters that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock. Other type: YN27A,YN28,YN30A,YN30W. Rock Drill Type | YN27J |
Weight(kg) | 27 |
Overall Dimension(L*W*H) mm | 746*315*229 |
Diameter of Engine Piston(mm) | 58 |
Stroke of Engine Piston(mm) | 70 |
Rotating speed of Engine(R/min) | >2450 |
Rotating speed of Drilling Rod(R/min) | >250 |
Oil Consumption(L/m) | <0.12 |
Tank Capacity(Liter) | 1.65 |
Max Drilling Depth(m) | 6 |
Shank Size(mm) | Hex22x108 |
Ignition System | Controllable silicon, Con tactless System |
Features:
The Internal Combustion Rock Drill Type YN27J is a very efficient machine with the haracters that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. Main Products:1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters Advantages:Compared with the oversea brands, our advantages are bellowing:a. Our products can match over 95% against the original productsb. Price are competitive against the famous brands and best quality against the small factory About Us:1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.2. We have advanced technology and equipment.3. Our technician has more than 13 year's professional working experience.4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
