| Prod Model: |
Y6 Y20 Y24 Y26 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as You Request |
| Function: |
New |
| Gross Weight: |
6-26kgs |
| Drive: |
Pneumatic |
| Mining Object: |
Coal Machinery |
| Usage: |
Ore |
| Condition: |
New |
| Power Type: |
Pneumatic |
| Type: |
Drilling Machine |
Product Description
1. Quarrying and minging rock drilling machine
2. Y6 Y20 Y24 YT24 YT28
3. Popular in Brazil, USA, Middle East and Europe.
For producing rock drills, XIAMEN BESTLINK FACTORY has more than 10 years experience.
Our pneumatic rock drills can be devided into two parts, one is hand-held rock drill, the other is air-leg rock drill. Both of them have excellent drilling performance.

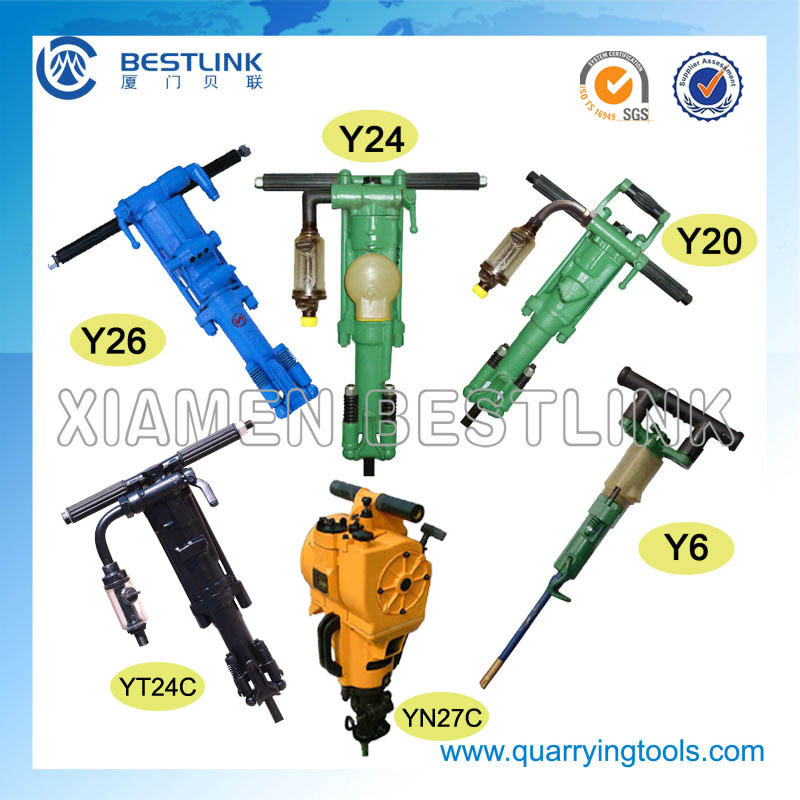

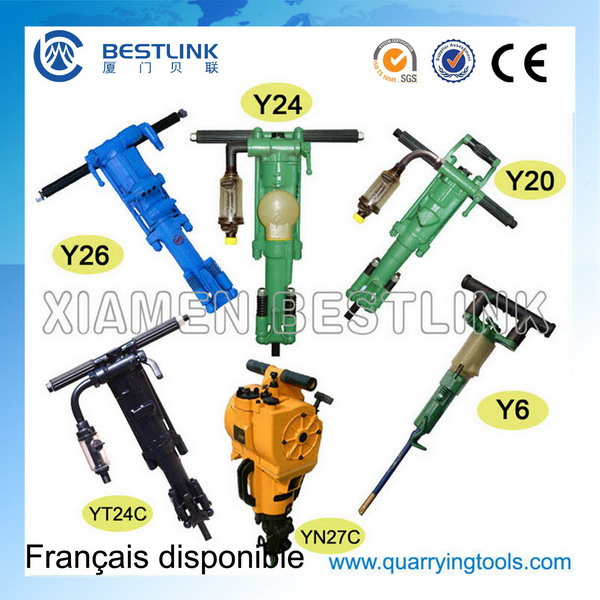

For hand-held rock drills, we have Y6, Y20, Y19A Y24 and Y26. Among them, the Y6, Y20 and Y24 are widely used in quarrying or construction industry.
Model Y6 hand-held rock drill is a light-duty tools designed for quarrying and drilling operation. You may expect satisfaction results with adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting. It has characteristic of low weight, reasonable structure, handy use and little air consumption.
Model Y20 and Y24 Hand-held Rock Drill is intended for drilling downward and inclined blast holes in medium hard and herd rock (f=8~18): · The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.
Technical Parameters
| Model | | Y6 | Y20 | Y19A | Y24 | Y26 |
| Weight | kg | 6 | 18 | 19 | 24 | 26 |
| Air consumption | L/s | ≤9.5L/s | 25 | 43 | ≤50 | ≤47 |
| Length | mm | 426 | 605 | 600 | 604 | 650 |
| Shank | mm | 15*88 | 22*108 | 22*108 | 22*108 | 22(25)*108 |
| Bore Dia | mm | 20 | 30-42 | 30-42 | 30-42 | 30-42 |
| Drill depth | m | 0.5 | 3 | 5 | 5 | 5 |
| Impact rate | Hz | 51 | 34 | 35 | 30 | 27 |
| Hose connection | mm | 13 | 16 or 19 | 19 | 19 | 19 |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
