| Skinving Range: |
6-51mm |
| Amount Of Dies: |
10 Sets |
| Operation Mode: |
Manual |
| Power: |
0.75/1.5(Optional) |
| Voltage: |
220V/380V |
| Efficiency: |
1500 Pieces/Hour |
| Dimension: |
620*470*1050mm |
| Weight: |
65kg |
| Delivery Time: |
Within a Week |
Product Description

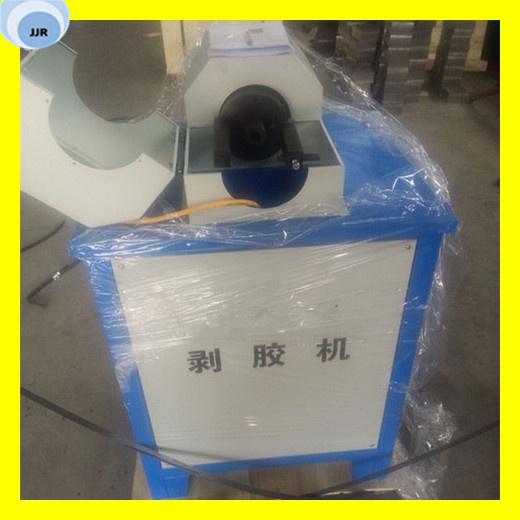

hand skiving tool for hydraulic hose
Main function of the skiving machine is to peel the exterior rubber of the rubber hose and contain steel wires, so as to connect ferrule. The machine is convenient and high efficiency.
Operation instruction
Insert the hose into the hole of skiving machine, push the hose forward step by step. The axis is stationary, motor drives the knives pole rotating. When the hose move forward, the exterior rubber is peeled by the knives. Pull the hose out after the work finish.
Before power on the skiving machine, please put the peeling axis into the fitting axis collar and fasten it firmly. Then fix the knives on the knife pole, and adjust knives to a normal position. Warning, check the screws and fitting and keep them in good condition status. After all these works are confirmed, start the peeling machine, then try to skive one hose. If the rubber could not
be skived completely, adjust the hand of knives to the center, so as to the knives could skive more deep. If the hose is spiral type steel wires hose, start the switch according to the direction of steel wires. The turning direction of the knives are accord with the turning direction of the switch.
| Skiving range | 6-51mm |
| Amount of dies | 10 sets |
| Mold number | 6,8,10,13,16,19,25,32,38,51 |
| Operation mode | Manual |
| power | 0.75/1.5(Optional) |
| Voltage | 220V/380V(Optional) |
| Efficiency | 1500 pieces/hour |
| Dimensions of product | 620*470*1050mm |
| Dimensions of Package | 700*520*1160mm |
| Weight | 65KG |
If you are interested in any of our products,please don't hesitate to contact with us.
Tianjin hengyong hydraulic technology Co., Ltd is a leading manufacture and exporter of hydraulic hose and fitting in China.
Our products are widely used in petroleum, construction, coal mining industry, machinery, agriculture, garden industry, automobile industry, etc.
15800 Workshop, 180sets Of Main Processing Machineries, 20sets of Inspection &Test Machineries. 230 well trained workers, our output per year is more than 5, 000, 000 meters for various kinds of rubber hose, 2, 000, 000 of connectors and 300, 000 Assembly hoses.
With more than 15 years experiences in this field, we keep our top focus on the premium quality and customer totally satisfaction all the time.
The stability and credibility of quality can be guaranteed under our strict quality control system, plus a prompt response and good delivery time always enable us meet and exceed our clients' expectations. We have built a long term relationship with several outstanding enterprises by providing OEM service
Our goal is striving to maximize our customer's value by delivering the highest quality products and service at a competitive price. Please feel free to contact us if you require any further information or assistance.
We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price
