Pressure Stainless Steel Flexible Braided Corrugated Metal Hose for Water
| Price: |
US $ 0.35-0.62/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4"-18" |
| Corrugated Type: |
Annular or Helical |
| Pitch Type: |
Standard |
| Working Temperature: |
-200~+600 |
| Length: |
as Client's Request |
| MOQ: |
500m |
| Delivery Time: |
According to Order Quantity |
| Sample: |
Available |
| Standard: |
ASTM |
| Diameter: |
273mm |
| Morphology: |
Liquid |
| Cross-Section Shape: |
Round |
| Connection Type: |
Welding |
Product Description
Pressure Stainless Steel Flexible Braided Corrugated metal Hose for WaterBrief instruction:Flexible metal hose assemblies are a wonderful alternative to hard line Steel or Stainless Steel tube assemblies where greater flexibility is needed.Because flexible metal hose assemblies are stainless steel throughout, they meet the need for chemical and extreme temperature resistance. The corrugated core tube allows flexibility that a hard line cannot.
a corrugated stainless steel tube with external stainless braiding. It is commonly used in high temperature or highly corrosive applications where a rubber hose is not suitable. It is also popular in "permanent" piping installations and short lengths (jumper) in potable water, cooling, steam, or other liquid applications where a "rubber hose" does not provide enough flexibility or a long enough service life (ie. rubber and plastics will degrade when subject to the elements). The braiding acts as a reinforcement to increase pressure ratings and prevent elongation.

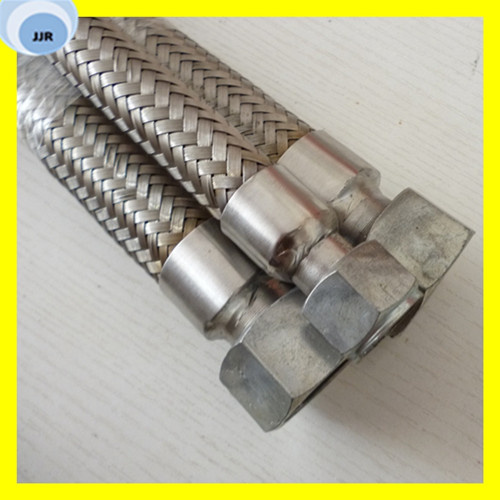

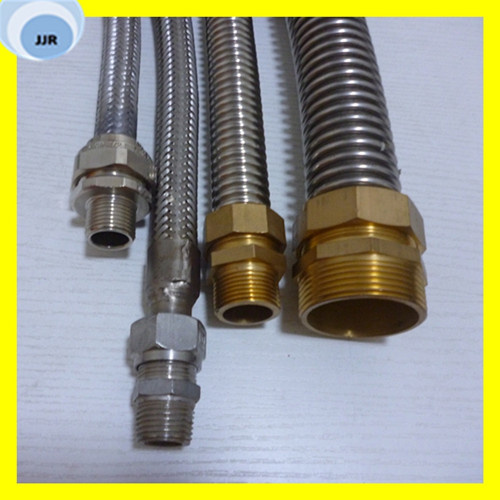

There are many different types of end connections available for flexible metal hose assemblies:· Male Pipe Thread (NPT & NPTF)· Female Pipe Thread· Male and Female JIC 37° Flare· Universal Tube Stub· Female O-ring Face Seal· Instrumentation Compression· Flange Fittings

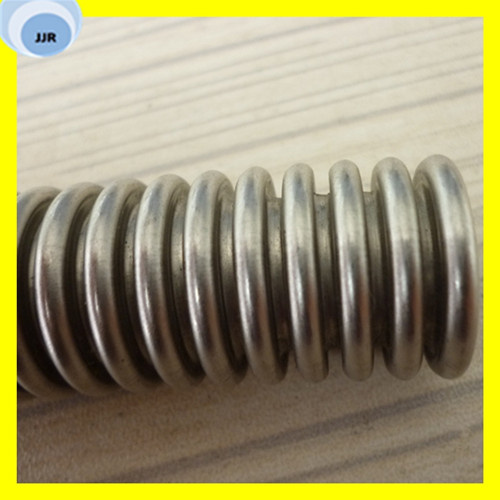

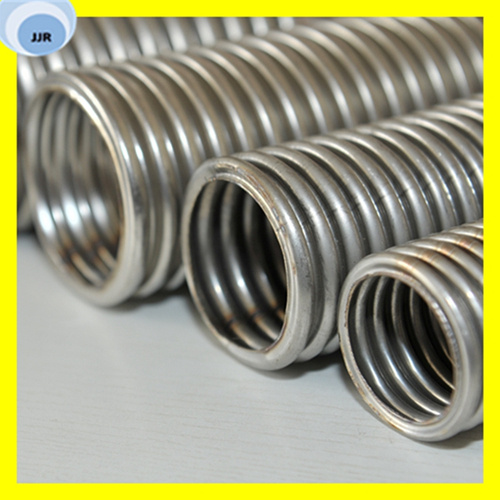

Metal Hose Features:· Stainless Steel construction results in excellent chemical resistance.· Metal hoses maintain integrity in high temperature environments - up to 600ºC· Metal hoses are available in a wide range of sizes - ¼" I.D. up to 6" I.D. More larger sizes please contact with us.· Metal hoses maintain their shape under full-vacuum.· Seam and butt welding result in leak-free fitting connections.· Metal hoses are suitable for cryogenic applications.Annular corrugated metal hoseAnnular hose is formed from tubing into individual parallel corrugations.Annular corrugated metal hose is the most common and popular corrugated flexible metal hose in the world and is widely used in many industries.
,| Hose ID | Hose OD | Min B.R | W.P | Weight |
| Main Body | Single Braid | Main body | Single Braid |
| inch | mm | mm | mm | mm | Mpa | kg/m | Kg/m |
| 1/2" | 14 | 20 | 22 | 120 | 7.5 | 0.21 | 0.4 |
| 5/8" | 16 | 23 | 25 | 150 | 6.4 | 0.26 | 0.5 |
| 3/4" | 20 | 28 | 30 | 180 | 5 | 0.35 | 0.6 |
| 1" | 25 | 35 | 37 | 280 | 4 | 0.47 | 0.85 |
| 1-1/4" | 32 | 43 | 45 | 340 | 3.5 | 0.51 | 0.96 |
| 1-1/2" | 40 | 51 | 53 | 450 | 3 | 0.7 | 1.18 |
| 2" | 50 | 62 | 64 | 550 | 2.5 | 0.85 | 1.75 |
| 2-1/2" | 65 | 79 | 82 | 650 | 2 | 1.41 | 2.7 |
| 3" | 80 | 97 | 100 | 800 | 2 | 1.62 | 3.12 |
| 4" | 100 | 122 | 125 | 1000 | 1.6 | 2 | 3.7 |
| 5" | 125 | 151 | 155 | 1200 | 1.5 | 2.8 | 5 |
| 6" | 150 | 180 | 184 | 1500 | 1.5 | 3.8 | 6.6 |
| 7" | 175 | 210 | 215 | 1750 | 1.2 | 5.8 | 9.7 |
| 8" | 200 | 240 | 245 | 2000 | 1.2 | 6.7 | 12 |
| 10" | 250 | 298 | 303 | 2200 | 1 | 10.6 | 18.1 |
| 12" | 300 | 360 | 365 | 2500 | 1 | 17.1 | 31.4 |
| 14" | 350 | 410 | 415 | 3000 | 0.8 | 20 | 36.3 |
| 16" | 400 | 460 | 465 | 3500 | 0.6 | 22.8 | 41.1 |

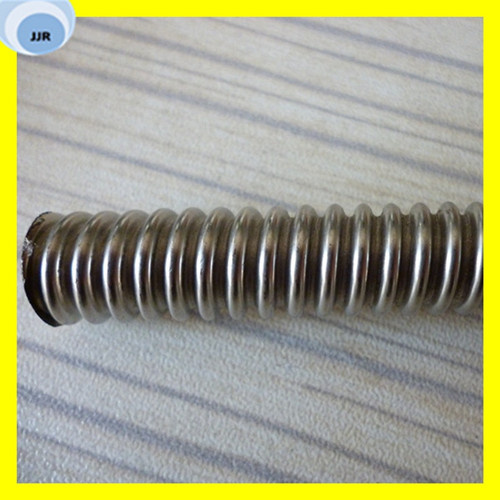

Helical corrugated metal hoseHelical hose is also formed from tubing but into a continuous spiral corrugation.Helical corrugated stainless steel butt welded hose offers exceptional flexibility at an economical cost.Helical corrugated metal hose offer up to 30% better flow efficiency compared to annular and endures repetitious bending as stresses are dispersed over a number of corrugations rather than individual annular rings. This tubing is ideal for the majority of industrial applications.
| Hose ID | Hose OD | Min B.R | W.P | Weight |
| Main Body | Single Braid | Main body | Single Braid |
| inch | mm | mm | mm | mm | Mpa | kg/m | Kg/m |
| 1/4" | 6.3 | 9 | 10.5 | 150 | 6.4 | 0.06 | 0.15 |
| 5/16" | 7.9 | 10.9 | 12.5 | 160 | 6.4 | 0.08 | 0.18 |
| 3/8" | 10.8 | 15.2 | 16.8 | 180 | 5 | 0.13 | 0.28 |
| 1/2" | 13.4 | 18.5 | 20 | 240 | 4 | 0.17 | 0.35 |
| 5/8" | 16 | 21.5 | 23 | 300 | 3.5 | 0.2 | 0.4 |
| 3/4" | 19.1 | 25.6 | 27.2 | 340 | 3 | 0.24 | 0.5 |
| 1" | 25.4 | 32.6 | 34.2 | 400 | 2.5 | 0.38 | 0.75 |
| 1-1/4" | 32.9 | 40.6 | 42.2 | 480 | 2.5 | 0.48 | 0.96 |
| 1-1/2" | 39.3 | 47.6 | 50.2 | 600 | 2.5 | 0.5 | 1 |
| 2" | 50.8 | 61.5 | 63.5 | 780 | 2.5 | 0.88 | 1.75 |

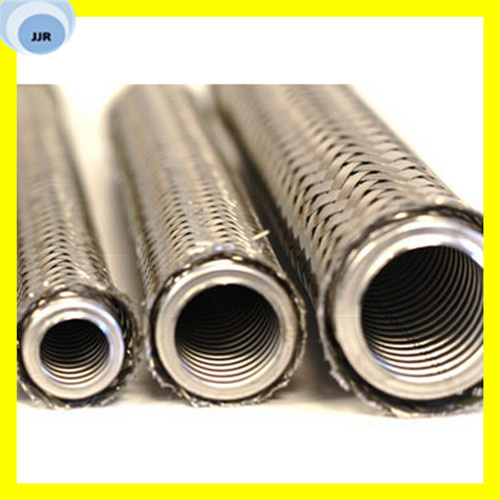

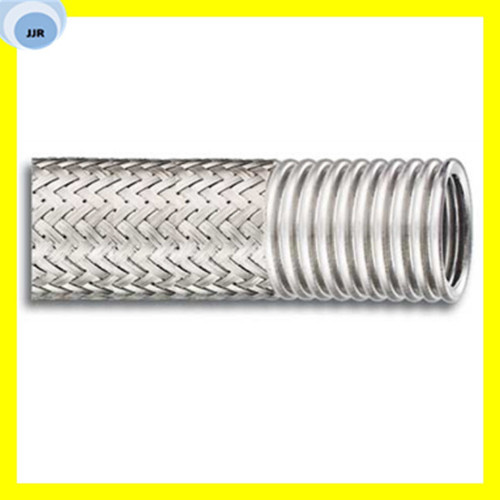

Unless restrained, corrugated hose will elongate when subjected to increasing internal pressure. This restraint is provided by a braided covering, consisting of a tubular sheath of woven metal wires fitted tightly over the corrugated hose and secured at each end. Flexibility of the corrugated hose is not appreciably affected by this wire braid covering. In addition, the braid provides squirm support and dampens vibration. In higher pressure applications, the use of additional braid covers will provide additional working pressure. Unbraided hose is satisfactory for low pressure applications.
In summary, flexible metal hose assemblies are a true alternative to hard line Steel or Stainless Steel tube assemblies where greater flexibility is needed. Because flexible metal hose assemblies are stainless steel throughout, they meet the need for chemical and extreme temperature resistance. The corrugated core tube allows flexibility that a hard line cannot.
