| Price: | US $ 20000-200000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T |

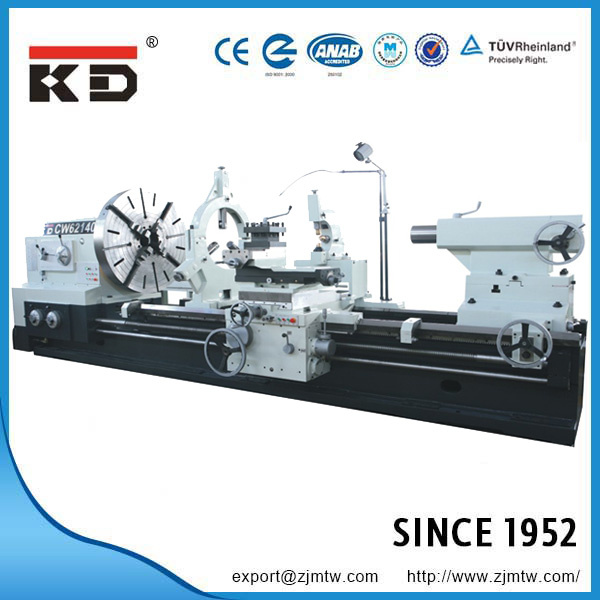

| Prod Model: | CW62140/6000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bed Width: | 970mm |
| Spindle Bore: | 130mm |
| Max Swing Over Bed: | 1400mm |
| Turning Length: | 6000mm |
| Color: | Any Color |
| Max. Weight Of Work Piece: | 6000kg |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Setting Mode: | Floor-type |
| Precision: | Normal Precision |
ITEMS | CW61140 /CW62140 | CW61160/ CW62160 |
Max. swing over bed | Ø1400 mm | Ø1600 mm |
Max. swing over carriage | Ø1060 mm | Ø1260 mm |
*Over gap | Ø1930 mm | Ø2110 mm |
Width of bed | 970 mm | |
*Effective length of gap | 590 mm | |
Max. length of work piece(two centers) | 1.5m/2m/3m/4m/5m/6m/8m/10m/12m | |
Max. turning length | 1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m | |
Max. Weight of work piece(between centers) | 6000Kg | |
Spindle nose | A2-15 | |
Spindle bore | Ø130 | |
Cone hole diameter and taper of spindle hole | Metric Ø140 1:20 | |
Number of speeds | 24(normal),12(reverse) | |
Spindle speed scope | 2.5~250rpm | |
Pitch of longitudinal ball screw/diameter | 12 mm/ Ø70mm | |
Number of cross feeds | 97 | |
Feed range of tool post for per rev. of spindle(Longitudinal) | 0.1~12 mm/r | |
Feed range of tool post for per rev. of spindle(Cross) | 0.05~6 mm/r | |
Feed range of tool post for per rev. of spindle(middle tool post) | 0.025~3 mm/r | |
Rapid feed for Axis Z | 3740 mm/min | |
Rapid feed for Axis X | 1870 mm/min | |
Rapid feed for Axis middle tool post | 935 mm/min | |
Thread cutting for Metric pitch threads(range/no.) | 1~120 mm/45 | |
Thread cutting for Whit-worth pitch threads(range/no.) | 30~1/4 TPI/42 | |
Thread cutting for Module threads(range/no.) | 0.5~60 mm/64 | |
Thread cutting for D.P. threads(range/no.) | 1/2~60DP/48 | |
Vertical distance from spindle center to installing basis | 51 mm | |
Size of tool shank | 50×50 mm | |
Max. travel of cross slide | 840mm | 900mm |
Swing angle of tool post | ±90° | |
Max. travel of middle tool post | 400 mm | |
Max. travel of top slide | 200 mm | |
Tailstock taper of bore | Metric 80 | |
Tailstock sleeve travel | 300 mm | |
Tailstock sleeve dia. | Ø160 mm | |
Power of main motor | 22 KW | |
Rapid feed motor power | 1.5 KW | |
Power of cooling pump | 0.25 KW | |
3m Overall dimensions(L×W×H) | 6100×2080×2130mm | 6100×2130×2300mm |
Net weight(3m) | 14100Kg | 15100Kg |
Note : The items with "*" are only for 62 series. For each additional machine length of 1m, there will be additional net weight of 1300kg | ||
